How to Use 3s Lipo Battery: Examples, Pinouts, and Specs

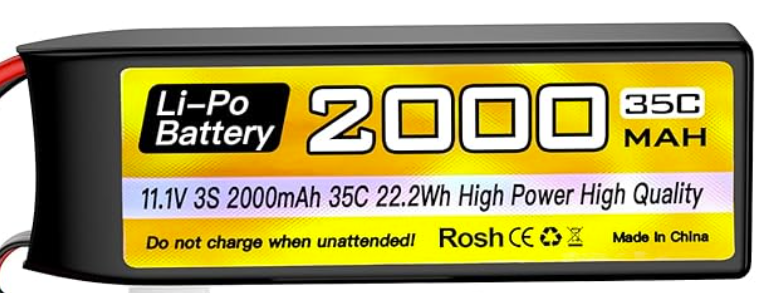

The 3s Lipo Battery (Manufacturer: Sea Jump, Part ID: Lipo Battery) is a rechargeable lithium polymer battery pack consisting of three cells connected in series. This configuration provides a nominal voltage of 11.1V (3.7V per cell) and is widely used in applications requiring high energy density, lightweight power sources, and reliable performance.

Common applications include:

• Remote-controlled (RC) vehicles such as cars, boats, and planes
• Drones and quadcopters
• Robotics and DIY electronics projects
• Portable power supplies for high-drain devices

The 3s Lipo Battery is known for its compact size, high discharge rates, and ability to deliver consistent power, making it a popular choice for hobbyists and professionals alike.

Below are the key technical details of the 3s Lipo Battery:

The 3s Lipo Battery typically has two connectors:

1. Main Power Connector: Supplies power to the load.
2. Balance Connector: Used for charging and monitoring individual cell voltages.

1. Connect the Main Power Connector: Attach the XT60 or other main connector to your device's power input. Ensure polarity is correct to avoid damage.
2. Monitor Cell Voltages: Use the balance connector with a LiPo battery charger or voltage monitor to ensure all cells are balanced during charging and discharging.
3. Charge Safely: Always use a LiPo-compatible charger with a balance charging mode. Set the charger to the correct cell count (3s) and capacity (e.g., 2200mAh).
4. Discharge Safely: Avoid discharging below 9.0V (3.0V per cell) to prevent damage to the battery.

• Avoid Overcharging: Never charge above 12.6V (4.2V per cell).
• Avoid Over-Discharging: Use a low-voltage alarm or cutoff circuit to prevent discharging below 9.0V.
• Storage: Store the battery at 50% charge (approximately 11.4V) in a cool, dry place.
• Inspect Regularly: Check for swelling, damage, or unusual heat before and after use.
• Use a Fireproof Bag: Charge and store the battery in a LiPo-safe bag to reduce fire risks.

To power an Arduino UNO with a 3s Lipo Battery, use a voltage regulator or DC-DC step-down converter to reduce the voltage to 5V or 7-12V (Arduino's input range). Below is an example circuit and code:

1. Connect the 3s Lipo Battery to a DC-DC step-down converter.
2. Set the converter output to 7-12V.
3. Connect the converter output to the Arduino's VIN and GND pins.

// Example code to read a sensor and control an LED using Arduino UNO
// powered by a 3s Lipo Battery through a DC-DC converter.

const int sensorPin = A0; // Analog pin connected to the sensor
const int ledPin = 13;    // Digital pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set LED pin as output
  Serial.begin(9600);      // Initialize serial communication
}

void loop() {
  int sensorValue = analogRead(sensorPin); // Read sensor value
  Serial.println(sensorValue);            // Print sensor value to Serial Monitor

  if (sensorValue > 500) {                // If sensor value exceeds threshold
    digitalWrite(ledPin, HIGH);           // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);            // Turn off the LED
  }

  delay(100); // Delay for stability
}

1. Battery Swelling or Puffing:

   • Cause: Overcharging, over-discharging, or physical damage.
   • Solution: Stop using the battery immediately. Dispose of it safely following local regulations.

2. Battery Not Charging:

   • Cause: Faulty charger, damaged balance connector, or over-discharged cells.
   • Solution: Check the charger and connectors. If the battery voltage is too low, use a charger with a recovery mode.

3. Device Shuts Down Prematurely:

   • Cause: Low voltage cutoff triggered or insufficient capacity.
   • Solution: Ensure the battery is fully charged and has adequate capacity for the load.

4. Uneven Cell Voltages:

   • Cause: Imbalanced cells due to improper charging.
   • Solution: Use a balance charger to equalize cell voltages.

Q: Can I use a 3s Lipo Battery without a balance charger?
A: It is not recommended. A balance charger ensures all cells are charged evenly, preventing damage and extending battery life.

Q: How do I know when the battery is fully charged?
A: The charger will indicate "full" when the voltage reaches 12.6V (4.2V per cell).

Q: What happens if I over-discharge the battery?
A: Over-discharging can permanently damage the cells, reducing capacity and increasing the risk of failure.

Q: Can I connect multiple 3s Lipo Batteries in series or parallel?
A: Yes, but ensure the batteries are of the same capacity, voltage, and charge level. Use proper connectors and safety precautions.

By following these guidelines, you can safely and effectively use the Sea Jump 3s Lipo Battery in your projects.
