How to Use 20x4 I2C LCD Panel: Examples, Pinouts, and Specs

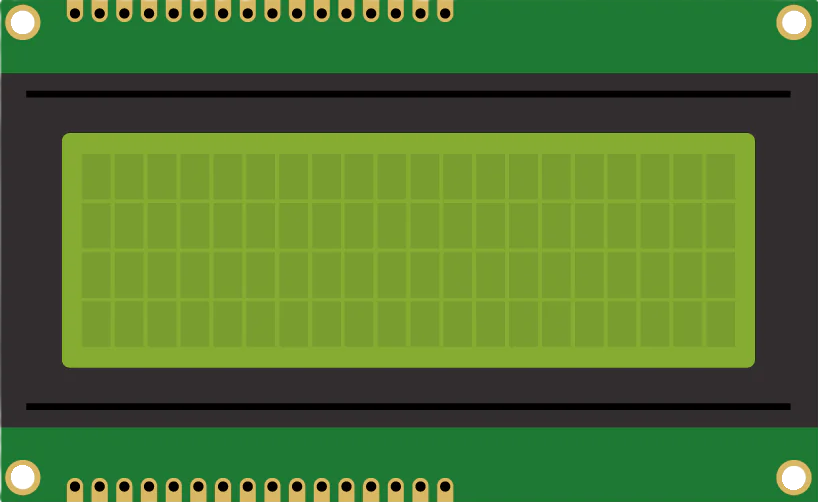

The 20x4 I2C LCD panel is a liquid crystal display capable of displaying 20 characters per line across 4 lines. It is designed to simplify interfacing with microcontrollers by utilizing the I2C (Inter-Integrated Circuit) communication protocol. This reduces the number of pins required for connection, making it ideal for projects with limited GPIO availability.

• Displaying sensor data in real-time
• User interfaces for embedded systems
• Menu systems for microcontroller-based projects
• Industrial control panels
• Educational and prototyping purposes

The following table outlines the key technical details of the 20x4 I2C LCD panel:

The 20x4 I2C LCD panel typically has a 4-pin interface for I2C communication. The pin configuration is as follows:

1. Wiring: Connect the 20x4 I2C LCD panel to your microcontroller as follows:

   • GND to the microcontroller's GND pin.
   • VCC to the 5V pin on the microcontroller.
   • SDA to the microcontroller's SDA pin (e.g., A4 on Arduino UNO).
   • SCL to the microcontroller's SCL pin (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • Use the LiquidCrystal_I2C library for Arduino. Install it via the Arduino IDE Library Manager:
     • Go to Sketch > Include Library > Manage Libraries.
     • Search for "LiquidCrystal_I2C" and install the library by Frank de Brabander.

3. Determine the I2C Address:

   • The default I2C address is typically 0x27, but it may vary. Use an I2C scanner sketch to confirm the address.

Below is an example code to display text on the 20x4 I2C LCD panel:

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

// Initialize the LCD with the I2C address (e.g., 0x27) and dimensions (20x4)
LiquidCrystal_I2C lcd(0x27, 20, 4);

void setup() {
  lcd.begin(); // Initialize the LCD
  lcd.backlight(); // Turn on the backlight

  // Display a welcome message
  lcd.setCursor(0, 0); // Set cursor to column 0, row 0
  lcd.print("20x4 I2C LCD Demo");

  lcd.setCursor(0, 1); // Set cursor to column 0, row 1
  lcd.print("Line 2: Hello!");

  lcd.setCursor(0, 2); // Set cursor to column 0, row 2
  lcd.print("Line 3: Arduino");

  lcd.setCursor(0, 3); // Set cursor to column 0, row 3
  lcd.print("Line 4: Enjoy!");
}

void loop() {
  // No actions in the loop for this example
}

• Power Supply: Ensure the panel is powered with a stable 5V DC supply.
• I2C Address Conflicts: If multiple I2C devices are connected, ensure each has a unique address.
• Contrast Adjustment: Use the onboard potentiometer to adjust the display contrast.
• Backlight Control: The backlight can be turned off programmatically using lcd.noBacklight().

1. No Display or Backlight:

   • Verify the wiring connections (GND, VCC, SDA, SCL).
   • Ensure the power supply is 5V DC.
   • Check the contrast adjustment potentiometer.

2. Incorrect or No Text Displayed:

   • Confirm the I2C address using an I2C scanner sketch.
   • Ensure the LiquidCrystal_I2C library is correctly installed and included.

3. Flickering or Unstable Display:

   • Check for loose connections or poor soldering.
   • Ensure the power supply is stable and sufficient.

4. I2C Address Not Detected:

   • Verify the SDA and SCL connections.
   • Check if pull-up resistors are required for your setup (most modules include them).

Q: Can I use the 20x4 I2C LCD panel with a 3.3V microcontroller?
A: The panel is designed for 5V operation. Use a logic level shifter if interfacing with a 3.3V microcontroller.

Q: How do I change the I2C address?
A: Some modules allow address changes by soldering jumpers on the PCB. Refer to the module's datasheet for details.

Q: Can I display custom characters?
A: Yes, the LiquidCrystal_I2C library supports custom characters. Refer to the library documentation for examples.
