How to Use MBR20100CT: Examples, Pinouts, and Specs

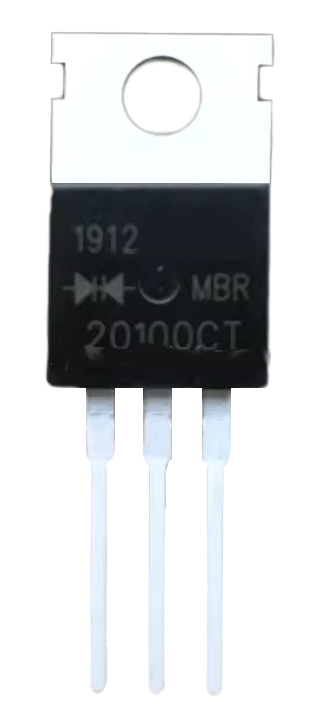

Image of MBR20100CT
Cirkit Designer LogoDesign with MBR20100CT in Cirkit Designer

Introduction

The MBR20100CT is a Schottky barrier rectifier diode designed for high-efficiency rectification in power supply circuits and other electronic applications. With a maximum reverse voltage of 100V and a forward current rating of 20A, it is ideal for applications requiring low forward voltage drop and high current handling. Its dual-diode configuration in a TO-220AB package makes it suitable for use in switching power supplies, freewheeling diodes, and polarity protection circuits.

Explore Projects Built with MBR20100CT

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Satellite-Based Timing and Navigation System with SDR and Atomic Clock Synchronization
Image of GPS 시스템 측정 구성도_Confirm: A project utilizing MBR20100CT in a practical application
This circuit appears to be a complex system involving power supply management, GPS and timing synchronization, and data communication. It includes a SI-TEX G1 Satellite Compass for GPS data, an XHTF1021 Atomic Rubidium Clock for precise timing, and Ettus USRP B200 units for software-defined radio communication. Power is supplied through various SMPS units and distributed via terminal blocks and DC jacks. Data communication is facilitated by Beelink MINI S12 N95 computers, RS232 splitters, and a 1000BASE-T Media Converter for network connectivity. RF Directional Couplers are used to interface antennas with the USRP units, and the entire system is likely contained within cases for protection and organization.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS System with Waveshare UPS 3S and Solar Charger
Image of Copy of s: A project utilizing MBR20100CT in a practical application
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Satellite Compass and Network-Integrated GPS Data Processing System
Image of GPS 시스템 측정 구성도_241016: A project utilizing MBR20100CT in a practical application
This circuit comprises a satellite compass, a mini PC, two GPS antennas, power supplies, a network switch, media converters, and an atomic rubidium clock. The satellite compass is powered by a triple output DC power supply and interfaces with an RS232 splitter for 1PPS signals. The mini PCs are connected to the USRP B200 devices via USB for data and power, and to media converters via Ethernet, which in turn connect to a network switch using fiber optic links. The antennas are connected to the USRP B200s through RF directional couplers, and the atomic clock provides a 1PPS input to the RS232 splitter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered STM32-Based Automation System with Matrix Keypad and RTC
Image of soloar cleaner : A project utilizing MBR20100CT in a practical application
This circuit features an STM32F103C8T6 microcontroller interfaced with a membrane matrix keypad for input, an RTC DS3231 for real-time clock functionality, and a 16x2 I2C LCD for display. It controls four 12V geared motors through two MD20 CYTRON motor drivers, with the motor power supplied by a 12V battery regulated by a buck converter. The battery is charged via a solar panel connected through a solar charge controller, ensuring a renewable energy source for the system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with MBR20100CT

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of GPS 시스템 측정 구성도_Confirm: A project utilizing MBR20100CT in a practical application
Satellite-Based Timing and Navigation System with SDR and Atomic Clock Synchronization
This circuit appears to be a complex system involving power supply management, GPS and timing synchronization, and data communication. It includes a SI-TEX G1 Satellite Compass for GPS data, an XHTF1021 Atomic Rubidium Clock for precise timing, and Ettus USRP B200 units for software-defined radio communication. Power is supplied through various SMPS units and distributed via terminal blocks and DC jacks. Data communication is facilitated by Beelink MINI S12 N95 computers, RS232 splitters, and a 1000BASE-T Media Converter for network connectivity. RF Directional Couplers are used to interface antennas with the USRP units, and the entire system is likely contained within cases for protection and organization.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of s: A project utilizing MBR20100CT in a practical application
Battery-Powered UPS System with Waveshare UPS 3S and Solar Charger
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of GPS 시스템 측정 구성도_241016: A project utilizing MBR20100CT in a practical application
Satellite Compass and Network-Integrated GPS Data Processing System
This circuit comprises a satellite compass, a mini PC, two GPS antennas, power supplies, a network switch, media converters, and an atomic rubidium clock. The satellite compass is powered by a triple output DC power supply and interfaces with an RS232 splitter for 1PPS signals. The mini PCs are connected to the USRP B200 devices via USB for data and power, and to media converters via Ethernet, which in turn connect to a network switch using fiber optic links. The antennas are connected to the USRP B200s through RF directional couplers, and the atomic clock provides a 1PPS input to the RS232 splitter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of soloar cleaner : A project utilizing MBR20100CT in a practical application
Solar-Powered STM32-Based Automation System with Matrix Keypad and RTC
This circuit features an STM32F103C8T6 microcontroller interfaced with a membrane matrix keypad for input, an RTC DS3231 for real-time clock functionality, and a 16x2 I2C LCD for display. It controls four 12V geared motors through two MD20 CYTRON motor drivers, with the motor power supplied by a 12V battery regulated by a buck converter. The battery is charged via a solar panel connected through a solar charge controller, ensuring a renewable energy source for the system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Switching power supplies
  • DC-DC converters
  • Battery chargers
  • Freewheeling diodes in motor control circuits
  • Polarity protection in electronic devices

Technical Specifications

Key Specifications

Parameter Value
Maximum Reverse Voltage 100V
Maximum Forward Current 20A
Forward Voltage Drop (Vf) 0.85V (typical at 10A)
Reverse Leakage Current 1mA (at 100V)
Operating Temperature Range -65°C to +150°C
Package Type TO-220AB

Pin Configuration

The MBR20100CT consists of two Schottky diodes in a common cathode configuration. The pinout for the TO-220AB package is as follows:

Pin Number Pin Name Description
1 Anode 1 Anode of the first diode
2 Cathode (Common) Common cathode for both diodes
3 Anode 2 Anode of the second diode

Package Diagram

Below is a simplified representation of the TO-220AB package pinout:

   _______
  |       |
  |       |
  |_______|
   | | |
   1 2 3

Usage Instructions

Using the MBR20100CT in a Circuit

  1. Rectification: The MBR20100CT is commonly used in full-wave rectifier circuits. Connect the anodes (Pin 1 and Pin 3) to the AC input and the cathode (Pin 2) to the positive DC output.
  2. Polarity Protection: Place the MBR20100CT in series with the power supply input to prevent damage from reverse polarity.
  3. Freewheeling Diode: Use the MBR20100CT across inductive loads (e.g., motors) to suppress voltage spikes during switching.

Important Considerations

  • Heat Dissipation: The MBR20100CT can handle high currents, but it generates heat during operation. Use an appropriate heatsink to maintain safe operating temperatures.
  • Voltage Ratings: Ensure the reverse voltage does not exceed 100V to prevent damage to the diode.
  • Current Ratings: Do not exceed the maximum forward current of 20A. For continuous operation, consider derating to account for thermal conditions.

Example: Connecting to an Arduino UNO

The MBR20100CT can be used in circuits interfacing with an Arduino UNO, such as a polarity protection circuit for the Arduino's power input. Below is an example circuit and code for monitoring the voltage after rectification.

Circuit Description

  • Connect the MBR20100CT in series with the Arduino's power input (Vin pin).
  • Use a voltage divider to step down the rectified voltage for measurement by the Arduino's analog input.

Arduino Code Example

// Example code to read rectified voltage using Arduino UNO
// Ensure the voltage divider output does not exceed 5V for safe ADC input

const int voltagePin = A0; // Analog pin connected to the voltage divider
float voltage = 0.0;       // Variable to store the measured voltage

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int adcValue = analogRead(voltagePin); // Read ADC value (0-1023)

  // Convert ADC value to voltage
  // Assuming a 10:1 voltage divider and 5V reference voltage
  voltage = (adcValue * 5.0 / 1023.0) * 10.0;

  // Print the measured voltage to the Serial Monitor
  Serial.print("Rectified Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues

  1. Excessive Heat Generation

    • Cause: High forward current or insufficient heatsinking.
    • Solution: Use a larger heatsink or improve airflow around the component.
  2. High Reverse Leakage Current

    • Cause: Operating near the maximum reverse voltage or at high temperatures.
    • Solution: Ensure the reverse voltage is well below 100V and operate within the specified temperature range.
  3. Diode Failure

    • Cause: Exceeding voltage or current ratings.
    • Solution: Verify circuit design and ensure proper derating for safe operation.

FAQs

Q: Can I use the MBR20100CT for AC rectification?
A: Yes, the MBR20100CT is suitable for AC rectification in full-wave or half-wave rectifier circuits.

Q: What is the maximum operating temperature for the MBR20100CT?
A: The maximum operating temperature is +150°C. Ensure proper cooling to avoid exceeding this limit.

Q: Can I use the MBR20100CT without a heatsink?
A: It is not recommended for high-current applications. A heatsink is necessary to dissipate heat effectively.

Q: How do I connect the MBR20100CT in a full-wave rectifier?
A: Use two MBR20100CT diodes in a bridge configuration or a single MBR20100CT for a center-tapped transformer.

This concludes the documentation for the MBR20100CT.
