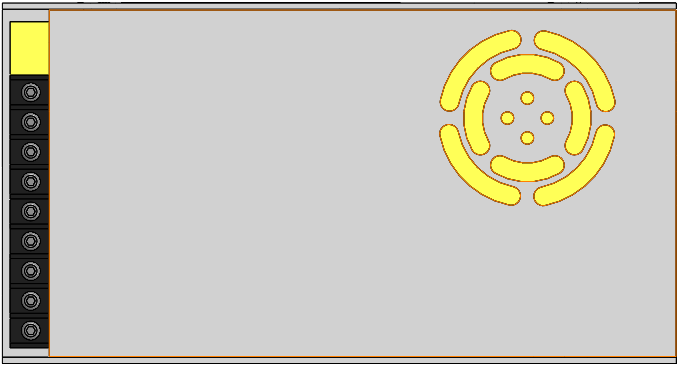

How to Use POWER SUPPLY 24v 450w: Examples, Pinouts, and Specs

The Meanwell POWER SUPPLY 24v 450w is a high-performance power supply unit designed to convert electrical energy from an input source into a stable 24-volt DC output. With a maximum power output of 450 watts, this device is ideal for powering a wide range of electronic components and systems, including industrial equipment, LED lighting, automation systems, and more. Its robust design ensures reliable operation in demanding environments.

• Industrial automation systems
• LED lighting and displays
• CNC machines and robotics
• Battery charging systems
• Laboratory equipment and testing setups

The Meanwell POWER SUPPLY 24v 450w typically features screw terminal connections for input and output. Below is the pin configuration:

1. Input Connection:

   • Connect the AC input terminals (L and N) to a suitable AC power source within the specified voltage range (90-264 VAC).
   • Ensure the FG terminal is connected to the earth ground for safety.

2. Output Connection:

   • Connect the +V terminal to the positive input of your load or circuit.
   • Connect the -V terminal to the ground or negative input of your load.

3. Load Considerations:

   • Ensure the total power consumption of the connected load does not exceed 450 watts.
   • Use appropriately rated wires to handle the output current (up to 18.75 A).

4. Mounting:

   • Mount the power supply in a well-ventilated area to ensure proper cooling.
   • Avoid placing the unit near heat sources or in environments with excessive dust or moisture.

5. Adjustments:

   • Some models may include a potentiometer to fine-tune the output voltage. Refer to the manufacturer's datasheet for adjustment instructions.

• Always verify the input voltage before powering the unit to prevent damage.
• Use fuses or circuit breakers on the input side for added protection.
• Avoid operating the power supply at maximum load for extended periods to prolong its lifespan.
• Ensure proper grounding to minimize electrical noise and enhance safety.
• If using the power supply with sensitive electronics, consider adding additional filtering capacitors to the output.

The Meanwell POWER SUPPLY 24v 450w can be used to power an Arduino UNO via a step-down voltage regulator (e.g., LM2596) to convert 24 VDC to 5 VDC. Below is an example circuit and Arduino code:

1. Connect the power supply's +V and -V terminals to the input of the step-down regulator.
2. Adjust the regulator's output to 5 VDC using a multimeter.
3. Connect the regulator's output to the Arduino UNO's 5V and GND pins.

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the power supply is properly connected to the Arduino via a step-down regulator

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Can this power supply be used outdoors?

   • No, this power supply is not weatherproof. Use it in a dry, indoor environment or within a suitable enclosure.

2. Can I connect multiple power supplies in parallel for higher current?

   • Consult the manufacturer's datasheet. Some models support parallel operation, but additional configuration may be required.

3. What happens if the load exceeds 450 watts?

   • The power supply's overload protection will activate, shutting down the output to prevent damage.

4. Is the output voltage adjustable?

   • Yes, some models include a potentiometer for fine-tuning the output voltage. Check the datasheet for details.

By following this documentation, users can safely and effectively integrate the Meanwell POWER SUPPLY 24v 450w into their projects.
