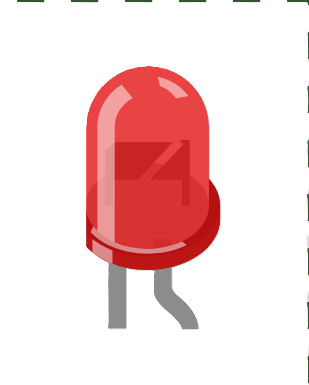

Image of led
Cirkit Designer LogoDesign with led in Cirkit Designer

Introduction

A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current passes through it. LEDs are energy-efficient and have a long lifespan, making them popular for various lighting applications. They are widely used in indicators, displays, backlighting, and general-purpose lighting. LEDs are available in various colors, sizes, and shapes, making them versatile for numerous applications.

Common applications of LEDs include:

  • Status indicators on electronic devices
  • Illumination in residential and commercial lighting
  • Backlighting for LCD displays
  • Automotive lighting (e.g., headlights, brake lights)
  • Decorative lighting and signage

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing led in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing led in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
LDR-Controlled LED Lighting System
Image of automatic street light: A project utilizing led in a practical application
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Light-Activated Relay with LED Indicator
Image of Street Light: A project utilizing led in a practical application
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of yk: A project utilizing led in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Solar Panel : A project utilizing led in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of automatic street light: A project utilizing led in a practical application
LDR-Controlled LED Lighting System
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Street Light: A project utilizing led in a practical application
Light-Activated Relay with LED Indicator
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a standard 5mm LED. Note that specifications may vary depending on the type and manufacturer.

Parameter Value
Forward Voltage (Vf) 1.8V - 3.3V (varies by color)
Forward Current (If) 10mA - 20mA
Reverse Voltage (Vr) 5V (maximum)
Power Dissipation 60mW (typical)
Viewing Angle 20° - 60°
Wavelength (for color) 400nm - 700nm (varies by type)
Lifespan 50,000+ hours

Pin Configuration

An LED typically has two pins:

Pin Name Description
Anode (+) The longer pin, connected to the positive terminal of the power supply.
Cathode (-) The shorter pin, connected to the negative terminal or ground.

Note: The longer pin (anode) is the positive terminal, and the shorter pin (cathode) is the negative terminal. If the pins are trimmed, the flat edge on the LED casing indicates the cathode.

Usage Instructions

How to Use an LED in a Circuit

  1. Determine the Resistor Value: LEDs require a current-limiting resistor to prevent damage. Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

    • (V_{supply}) is the supply voltage
    • (V_f) is the forward voltage of the LED
    • (I_f) is the forward current of the LED (in amperes)
  2. Connect the LED:

    • Connect the anode (+) to the positive terminal of the power supply through the resistor.
    • Connect the cathode (-) to the ground.
  3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED should light up.

Example: Connecting an LED to an Arduino UNO

Below is an example of how to connect and control an LED using an Arduino UNO.

Circuit Setup

  • Connect the anode (+) of the LED to a digital pin (e.g., pin 13) on the Arduino through a 220Ω resistor.
  • Connect the cathode (-) of the LED to the GND pin on the Arduino.

Arduino Code

// LED Blink Example
// This code blinks an LED connected to pin 13 of the Arduino UNO.

const int ledPin = 13; // Define the pin number for the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Important Considerations

  • Always use a current-limiting resistor to prevent excessive current from damaging the LED.
  • Ensure the LED is connected with the correct polarity (anode to positive, cathode to ground).
  • Avoid exceeding the maximum forward current and reverse voltage ratings.

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Check the polarity of the LED. Ensure the anode is connected to the positive terminal.
    • Verify the resistor value. An incorrect resistor may prevent sufficient current flow.
    • Ensure the power supply voltage is adequate for the LED's forward voltage.
  2. LED is Dim:

    • The resistor value may be too high, limiting the current excessively.
    • The power supply voltage may be too low.
  3. LED Burns Out:

    • The resistor value may be too low, allowing excessive current to flow through the LED.
    • The power supply voltage may exceed the LED's maximum ratings.
  4. Flickering LED:

    • Check for loose connections in the circuit.
    • Ensure the power supply is stable and not fluctuating.

FAQs

Q: Can I connect an LED directly to a battery without a resistor?
A: No, connecting an LED directly to a battery can cause excessive current to flow, damaging the LED. Always use a current-limiting resistor.

Q: How do I choose the correct resistor for my LED?
A: Use the formula (R = \frac{V_{supply} - V_f}{I_f}) to calculate the resistor value. For example, if (V_{supply} = 5V), (V_f = 2V), and (I_f = 20mA), the resistor value is (R = \frac{5 - 2}{0.02} = 150\Omega).

Q: Can I use an LED without knowing its forward voltage?
A: It is recommended to check the LED's datasheet for accurate specifications. If unavailable, assume a typical forward voltage of 2V for red LEDs and 3V for blue/white LEDs.

Q: Why does my LED glow faintly even when off?
A: This may be due to leakage current or a floating pin in the circuit. Ensure proper grounding and use a pull-down resistor if necessary.
