How to Use LED: Two Pin (red) - Long Pins: Examples, Pinouts, and Specs

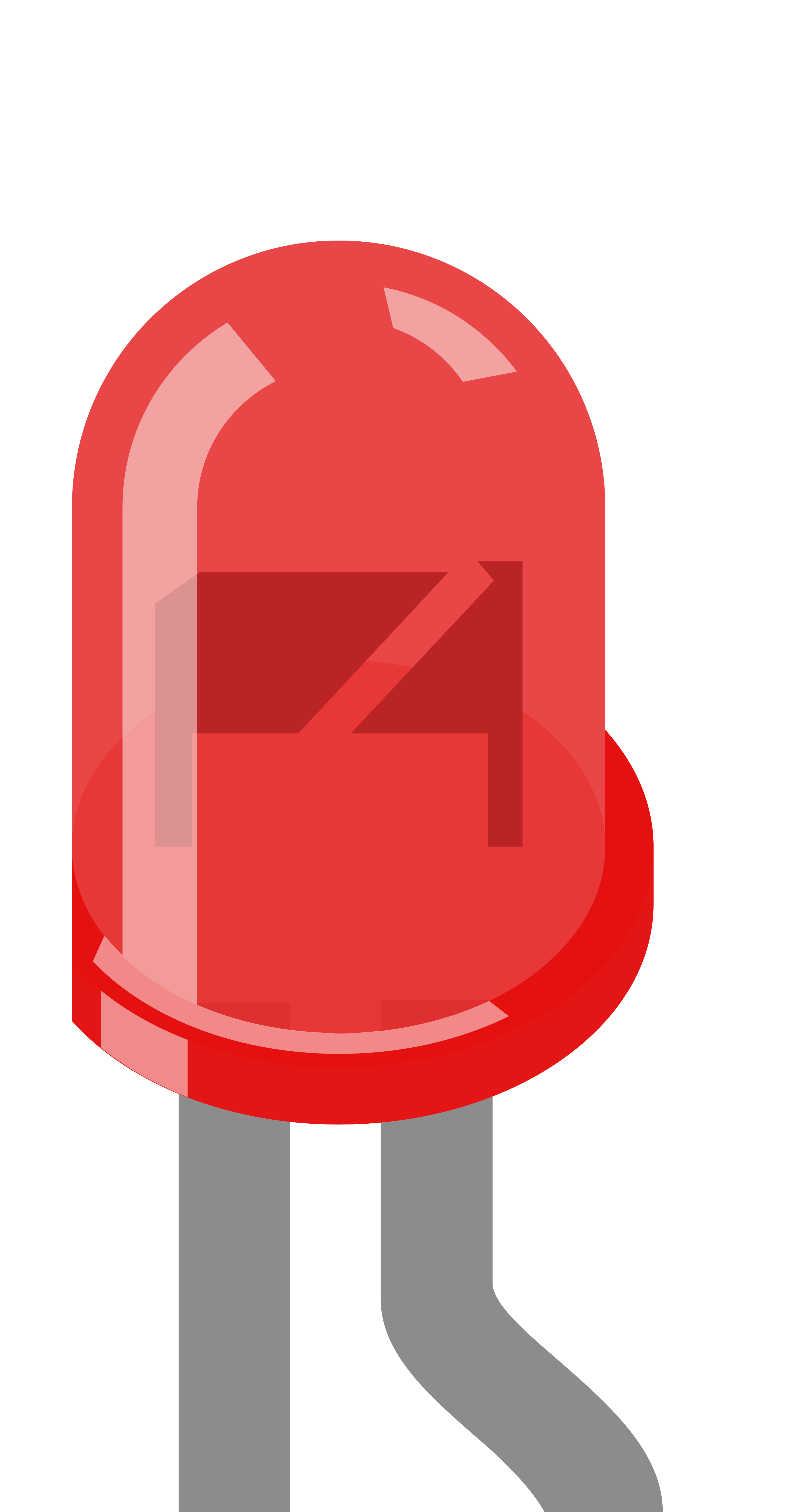

The Two Pin Red LED is a light-emitting diode that emits red light when powered. It features two pins: a longer pin (anode) and a shorter pin (cathode), making it easy to identify polarity. The long pins are particularly useful for breadboard prototyping and soldering in electronic circuits. This LED is widely used in indicator lights, status displays, and decorative lighting applications due to its simplicity, low power consumption, and reliability.

• Power and status indicators in electronic devices
• Visual feedback in circuits and projects
• Decorative and ambient lighting
• Educational and prototyping purposes

Below are the key technical details for the Two Pin Red LED:

The Two Pin Red LED has the following pin configuration:

1. Identify the Pins: The longer pin is the anode (+), and the shorter pin is the cathode (-).

2. Connect to Power:

   • Connect the anode to the positive terminal of the power source.
   • Connect the cathode to the negative terminal or ground.

3. Use a Resistor: Always use a current-limiting resistor in series with the LED to prevent damage. Calculate the resistor value using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

   • ( V_{supply} ) is the supply voltage.
   • ( V_f ) is the forward voltage of the LED (1.8V to 2.2V).
   • ( I_f ) is the forward current (20mA or 0.02A).

   For example, with a 5V supply: [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

4. Insert into Circuit: Place the LED and resistor in the circuit, ensuring correct polarity.

The Two Pin Red LED can be easily connected to an Arduino UNO for basic projects. Below is an example of blinking the LED:

• Connect the anode (long pin) of the LED to digital pin 13 on the Arduino through a 220Ω resistor.
• Connect the cathode (short pin) to the GND pin on the Arduino.

// LED Blink Example for Two Pin Red LED
// Connect the anode (long pin) to pin 13 through a 220Ω resistor
// Connect the cathode (short pin) to GND

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

• Polarity: LEDs are polarized components. Reversing the polarity may damage the LED.
• Current Limiting: Always use a resistor to limit the current through the LED.
• Brightness: The brightness of the LED depends on the current. Exceeding the maximum current can damage the LED.

1. LED Does Not Light Up:

   • Check the polarity of the LED. Ensure the anode is connected to the positive terminal.
   • Verify the resistor value. A resistor with too high a value may prevent the LED from lighting.
   • Ensure the power supply voltage is sufficient (above the forward voltage of the LED).

2. LED is Too Dim:

   • Check the resistor value. A lower resistance may increase brightness but ensure it does not exceed the maximum current rating.
   • Verify the power supply voltage.

3. LED Burns Out Quickly:

   • Ensure a current-limiting resistor is used.
   • Verify the resistor value to ensure the current does not exceed 20mA.

4. LED Flickers:

   • Check for loose connections in the circuit.
   • Ensure the power supply is stable and not fluctuating.

Q: Can I connect the LED directly to a 5V power supply?
A: No, you must use a current-limiting resistor to prevent excessive current from damaging the LED.

Q: What happens if I reverse the polarity?
A: The LED will not light up, and prolonged reverse connection may damage the LED.

Q: Can I use this LED with a 3.3V power supply?
A: Yes, as long as you calculate and use an appropriate resistor to limit the current.

Q: How do I increase the brightness of the LED?
A: You can reduce the resistor value to increase the current, but do not exceed the maximum current rating of 20mA.

This concludes the documentation for the Two Pin Red LED with long pins.
