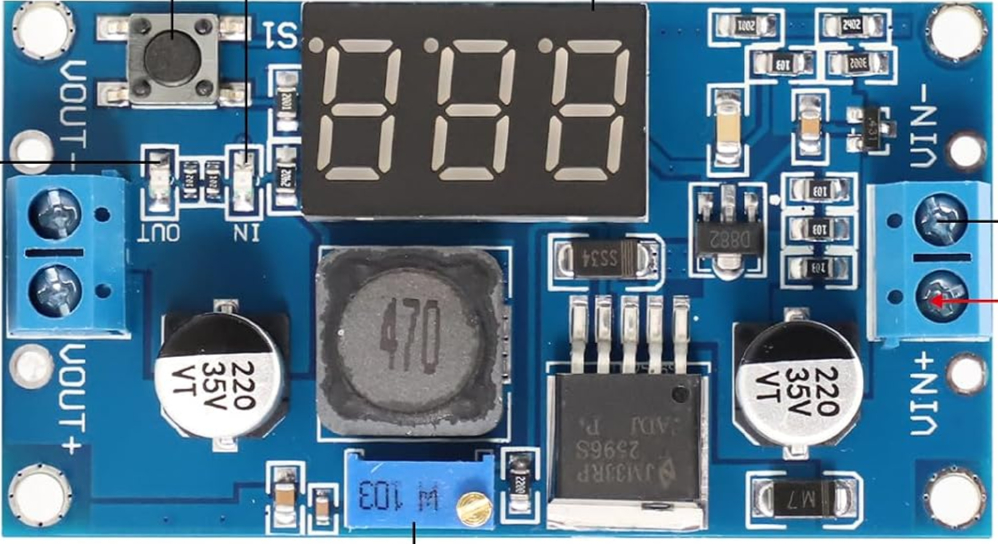

How to Use DC-DC Buck LM2596 3A LED: Examples, Pinouts, and Specs

The DC-DC Buck LM2596 3A LED module is a step-down voltage regulator designed to efficiently convert a higher input voltage to a lower output voltage. It is based on the LM2596 buck converter IC and features an onboard potentiometer for precise voltage adjustment. This module is widely used in power supply circuits, battery charging systems, and LED drivers due to its high efficiency and ease of use.

• Powering low-voltage devices from a higher voltage source (e.g., 12V to 5V conversion)
• Battery charging circuits
• LED lighting systems
• DIY electronics projects
• Arduino and microcontroller-based applications

• Input Voltage Range: 4V to 40V DC
• Output Voltage Range: 1.25V to 37V DC (adjustable via potentiometer)
• Maximum Output Current: 3A (with proper heat dissipation)
• Efficiency: Up to 92% (depending on input/output voltage and load)
• Switching Frequency: 150 kHz
• Load Regulation: ±0.5%
• Voltage Regulation: ±2.5%
• Operating Temperature: -40°C to +85°C

1. Connect the Input Voltage:
   • Attach the positive terminal of your power source to the VIN pin.
   • Connect the negative terminal of your power source to the GND pin.
2. Adjust the Output Voltage:
   • Use a multimeter to measure the output voltage across the VOUT and GND pins.
   • Turn the onboard potentiometer clockwise to increase the output voltage or counterclockwise to decrease it.
3. Connect the Load:
   • Attach the positive terminal of your load to the VOUT pin.
   • Connect the negative terminal of your load to the GND pin.
4. Verify the Connections:
   • Double-check all connections to ensure proper polarity and avoid short circuits.

• Heat Dissipation: The module can handle up to 3A of current, but proper heat dissipation (e.g., a heatsink) is required for high-current applications.
• Input Voltage: Ensure the input voltage is at least 1.5V higher than the desired output voltage for stable operation.
• Output Voltage Adjustment: Always adjust the potentiometer slowly and carefully to avoid overshooting the desired voltage.
• Capacitor Placement: For optimal performance, use input and output capacitors close to the module to reduce voltage ripple.

The LM2596 module can be used to power an Arduino UNO from a 12V power source by stepping down the voltage to 5V. Below is an example code to blink an LED connected to the Arduino, powered via the LM2596 module.

// Example code to blink an LED using Arduino UNO
// Ensure the LM2596 module is set to output 5V before connecting to the Arduino

const int ledPin = 13; // Built-in LED pin on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Incorrect wiring or insufficient input voltage.
   • Solution: Verify the input voltage is within the specified range and check all connections.

2. Output Voltage Not Adjustable:

   • Cause: Faulty potentiometer or incorrect adjustment.
   • Solution: Ensure the potentiometer is not damaged and adjust it slowly while monitoring the output voltage.

3. Overheating:

   • Cause: High current draw without proper heat dissipation.
   • Solution: Attach a heatsink to the LM2596 IC or reduce the load current.

4. Voltage Ripple or Noise:

   • Cause: Insufficient filtering capacitors.
   • Solution: Add low ESR capacitors (e.g., 100µF electrolytic) to the input and output terminals.

• Always use a multimeter to verify input and output voltages before connecting the load.
• If the module overheats, reduce the load current or improve ventilation around the module.
• For sensitive applications, use additional filtering components to minimize noise and ripple.

By following these guidelines, the DC-DC Buck LM2596 3A LED module can be effectively integrated into a wide range of electronic projects.
