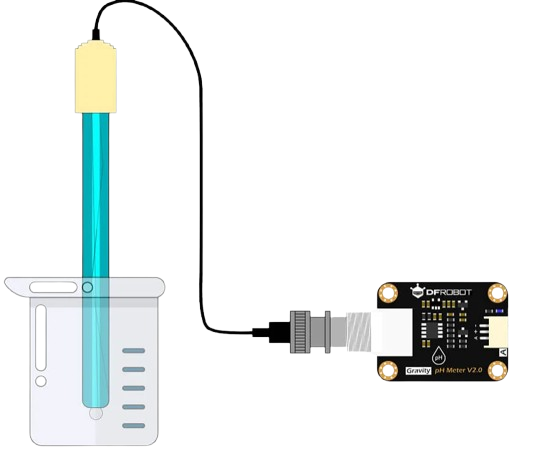

Design with ph sensor with module in Cirkit DesignerA pH sensor with module is an electronic device used to measure the acidity or alkalinity of a solution. It typically includes a pH probe and an interface module that converts the analog signal from the probe into a digital format for easy reading and processing. This component is widely used in applications such as water quality monitoring, aquariums, hydroponics, and laboratory experiments. Its ability to provide real-time pH readings makes it an essential tool for both hobbyists and professionals.
This circuit connects an ESP32 microcontroller to a pH sensor module. The ESP32's digital pin D25 is interfaced with the sensor's analog output, allowing the microcontroller to read pH levels. The circuit is designed for monitoring pH values, likely for applications such as water quality testing in environmental or laboratory settings.
Open Project in Cirkit Designer
This circuit features an ESP32 Devkit V1 microcontroller interfaced with an HC-SR04 Ultrasonic Sensor, a TDS (Total Dissolved Solids) Sensor Module, and a pH Degree Sensor Module for environmental monitoring. The ESP32 is programmed to measure distance using the ultrasonic sensor, and to read the analog values from the TDS and pH sensors to monitor water quality. All sensors are powered by a common 5V battery, and the ESP32 processes and outputs the sensor data serially.
Open Project in Cirkit Designer
This circuit features an ESP32 microcontroller connected to a PH Meter, a water flow sensor, and a TDS (Total Dissolved Solids) sensor module for monitoring water quality. The ESP32 reads the sensor outputs and displays relevant data on a 16x2 LCD display. A potentiometer is used to adjust the contrast of the LCD, and all components are powered by the ESP32's 3.3V output, with common ground connections.
Open Project in Cirkit Designer
This circuit is designed for monitoring water quality parameters and controlling water pumps based on sensor inputs. It includes a pH sensor, dissolved oxygen sensor, and electrical conductivity sensor interfaced with an Arduino UNO for data acquisition and processing. The ESP8266 WiFi module enables remote communication, while the relay module controls two water pumps, likely for adjusting water conditions in response to the sensor readings.
Open Project in Cirkit DesignerBelow are the key technical details of a typical pH sensor with module:
| Parameter | Specification |
|---|---|
| Operating Voltage | 3.3V - 5V DC |
| Output Signal | Analog (0-5V) |
| pH Measurement Range | 0 - 14 pH |
| Accuracy | ±0.1 pH (at 25°C) |
| Temperature Range | 0°C - 60°C |
| Response Time | ≤1 second |
| Probe Type | Glass electrode |
| Module Dimensions | ~42mm x 32mm |
The pH sensor module typically has the following pin configuration:
| Pin Name | Description |
|---|---|
| VCC | Power supply input (3.3V - 5V DC) |
| GND | Ground connection |
| AO | Analog output signal (proportional to pH value) |
VCC pin of the module to a 3.3V or 5V power source, and the GND pin to the ground of your circuit.AO pin to an analog input pin of your microcontroller (e.g., Arduino UNO).Below is an example of how to use the pH sensor with an Arduino UNO to read and display pH values:
// Include necessary libraries
const int pH_Pin = A0; // Analog pin connected to the pH sensor module
float voltage, pH_value;
void setup() {
Serial.begin(9600); // Initialize serial communication
pinMode(pH_Pin, INPUT); // Set the pH sensor pin as input
}
void loop() {
// Read the analog value from the pH sensor
int sensorValue = analogRead(pH_Pin);
// Convert the analog value to voltage (assuming 5V reference)
voltage = sensorValue * (5.0 / 1023.0);
// Convert the voltage to pH value (calibration may be required)
pH_value = 3.5 * voltage; // Example conversion factor
// Print the pH value to the Serial Monitor
Serial.print("pH Value: ");
Serial.println(pH_value);
delay(1000); // Wait for 1 second before the next reading
}
3.5 in the example) may vary depending on the specific sensor module and calibration. Adjust this value based on your calibration results.Inaccurate Readings
No Output or Unstable Readings
pH Value Stuck at a Constant Level
Fluctuating Readings
Q: How often should I calibrate the pH sensor?
A: For best results, calibrate the sensor before each use or at least once a week if used frequently.
Q: Can I immerse the entire module in liquid?
A: No, only the pH probe is designed for immersion. The module should remain dry.
Q: What is the lifespan of a pH probe?
A: The lifespan of a pH probe is typically 1-2 years, depending on usage and maintenance.
Q: Can I use the pH sensor in high-temperature solutions?
A: Most pH probes are rated for temperatures up to 60°C. Check the specifications of your specific probe before use.
