How to Use Stepperonline DM302T Stepper Drive: Examples, Pinouts, and Specs

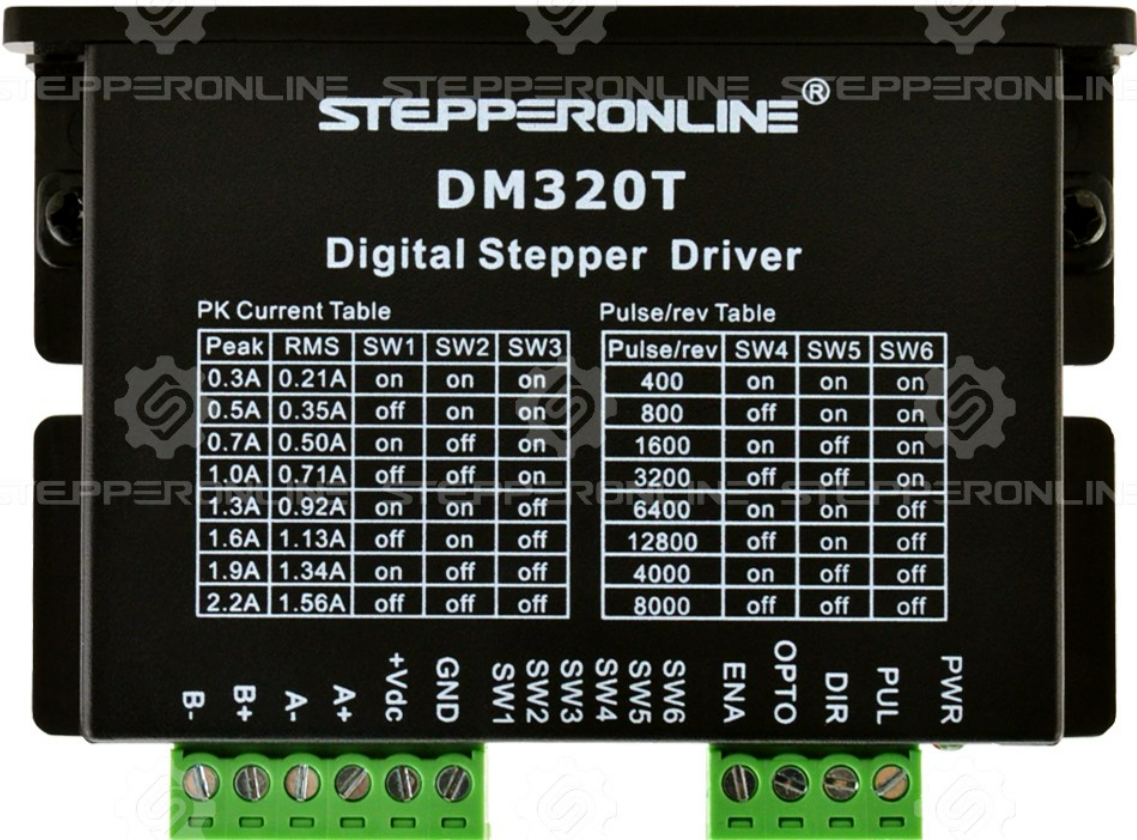

Image of Stepperonline DM302T Stepper DriveDesign with Stepperonline DM302T Stepper Drive in Cirkit Designer

Introduction

The Stepperonline DM302T is a digital stepper motor driver designed for controlling stepper motors with high precision and efficiency. It supports adjustable current settings and microstepping capabilities, enabling smooth and reliable motor operation. This driver is ideal for applications requiring precise motion control, such as CNC machines, 3D printers, robotics, and automated systems.

Explore Projects Built with Stepperonline DM302T Stepper Drive

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino-Controlled Stepper Motor with LCD Interface and Rotary Encoder: A project utilizing Stepperonline DM302T Stepper Drive in a practical application
Arduino-Controlled Stepper Motor with LCD Interface and Rotary Encoder

This circuit is designed to control a bipolar stepper motor using an Arduino Mega 2560 microcontroller and a STEPPERONLINE DM542T driver. The Arduino interfaces with a 20x4 LCD display over I2C for user feedback, a membrane matrix keypad for user input, and a rotary encoder for precise control inputs. The power supply provides the necessary voltage and current to drive the stepper motor through the DM542T driver.

Open Project in Cirkit Designer
Image of CNC Machine Control System with Dual tb6600 Stepper Drivers and MAch3 USB Interface: A project utilizing Stepperonline DM302T Stepper Drive in a practical application
CNC Machine Control System with Dual tb6600 Stepper Drivers and MAch3 USB Interface

This circuit appears to be a control system for a CNC machine or similar automated equipment. It includes two tb6600 Micro Stepping Motor Drivers for controlling stepper motors, a DC power source with a step-down buck converter to provide the necessary voltage levels, and a 4-channel relay module for switching higher power loads. The MAch3 CNC USB interface suggests the system is designed to interface with computer numerical control software, and the RMCS_3001 BLDC Driver indicates the presence of a brushless DC motor control. The Tiva C launchpad microcontroller and various connectors imply that the system is modular and may be programmable for specific automation tasks.

Open Project in Cirkit Designer
Image of Stepper Motor Control Circuit with Integrated Drive and Programmable Power Supply: A project utilizing Stepperonline DM302T Stepper Drive in a practical application
Stepper Motor Control Circuit with Integrated Drive and Programmable Power Supply

This circuit connects an integrated stepper motor drive to a bipolar stepper motor, enabling controlled movement of the motor's shaft in precise increments. The stepper motor drive receives power from a programmable DC power supply, with connections for both ground and voltage supply. There is no embedded code provided, suggesting that the stepper motor drive may be pre-programmed or manually controlled.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

The DM302T is a versatile and robust stepper motor driver with the following key specifications:

Parameter Value
Input Voltage Range 20V to 30V DC
Output Current Range 1.0A to 3.0A (adjustable via DIP switches)
Microstepping Resolution Up to 1/256 steps
Control Signal Input Pulse (PUL), Direction (DIR), and Enable (ENA)
Pulse Frequency Range 0 to 200 kHz
Motor Compatibility 2-phase and 4-phase stepper motors
Operating Temperature -10°C to +45°C
Dimensions 118 mm x 75 mm x 34 mm
Weight 200 g

Pin Configuration and Descriptions

The DM302T features two main connectors: one for motor and power connections, and another for control signals. Below is the pin configuration:

Motor and Power Connector

Pin Name Description
1 A+ Positive terminal for motor coil A
2 A- Negative terminal for motor coil A
3 B+ Positive terminal for motor coil B
4 B- Negative terminal for motor coil B
5 V+ Positive power supply input (20V-30V DC)
6 GND Ground for power supply

Control Signal Connector

Pin Name Description
1 PUL+ Positive pulse signal input
2 PUL- Negative pulse signal input
3 DIR+ Positive direction signal input
4 DIR- Negative direction signal input
5 ENA+ Positive enable signal input
6 ENA- Negative enable signal input

Usage Instructions

How to Use the DM302T in a Circuit

  1. Power Supply: Connect a DC power supply (20V-30V) to the V+ and GND pins of the motor and power connector.
  2. Motor Connection: Connect the stepper motor coils to the A+, A-, B+, and B- pins. Ensure proper wiring to avoid motor malfunction.
  3. Control Signals: Connect the PUL, DIR, and ENA pins to a microcontroller or motion controller. Use appropriate pull-up or pull-down resistors if required.
  4. DIP Switch Settings: Configure the DIP switches on the driver to set the desired current limit and microstepping resolution. Refer to the DM302T datasheet for detailed DIP switch settings.
  5. Testing: Power on the system and send pulse signals to the PUL pin to drive the motor. Adjust the direction using the DIR pin and enable/disable the driver using the ENA pin.

Important Considerations and Best Practices

Example Code for Arduino UNO

Below is an example code to control the DM302T using an Arduino UNO:

// Define control pins
const int pulsePin = 2;  // Pin connected to PUL+ (PUL- to GND)
const int dirPin = 3;    // Pin connected to DIR+ (DIR- to GND)
const int enablePin = 4; // Pin connected to ENA+ (ENA- to GND)

void setup() {
  // Set pin modes
  pinMode(pulsePin, OUTPUT);
  pinMode(dirPin, OUTPUT);
  pinMode(enablePin, OUTPUT);

  // Enable the driver
  digitalWrite(enablePin, LOW); // LOW to enable, HIGH to disable
}

void loop() {
  // Set direction
  digitalWrite(dirPin, HIGH); // HIGH for one direction, LOW for the other

  // Generate pulses to move the motor
  for (int i = 0; i < 200; i++) { // 200 steps for one revolution (example)
    digitalWrite(pulsePin, HIGH);
    delayMicroseconds(500); // Adjust for speed (500 µs = 1 kHz pulse frequency)
    digitalWrite(pulsePin, LOW);
    delayMicroseconds(500);
  }

  delay(1000); // Wait 1 second before changing direction

  // Reverse direction
  digitalWrite(dirPin, LOW);
  for (int i = 0; i < 200; i++) {
    digitalWrite(pulsePin, HIGH);
    delayMicroseconds(500);
    digitalWrite(pulsePin, LOW);
    delayMicroseconds(500);
  }

  delay(1000); // Wait 1 second before repeating
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Not Moving

    • Cause: Incorrect wiring or loose connections.
    • Solution: Double-check all connections, especially motor coil wiring and control signals.
  2. Overheating

    • Cause: Current limit set too high or insufficient cooling.
    • Solution: Adjust the current limit using DIP switches and ensure proper ventilation.
  3. Erratic Motor Movement

    • Cause: Noise in control signals or incorrect microstepping settings.
    • Solution: Use shielded cables for control signals and verify DIP switch settings.
  4. Driver Not Enabling

    • Cause: ENA pin not properly configured.
    • Solution: Ensure the ENA pin is set to LOW to enable the driver.

FAQs

This concludes the documentation for the Stepperonline DM302T Stepper Drive. For further assistance, consult the manufacturer's datasheet or support resources.
