How to Use DHT11 Sensor Module: Examples, Pinouts, and Specs

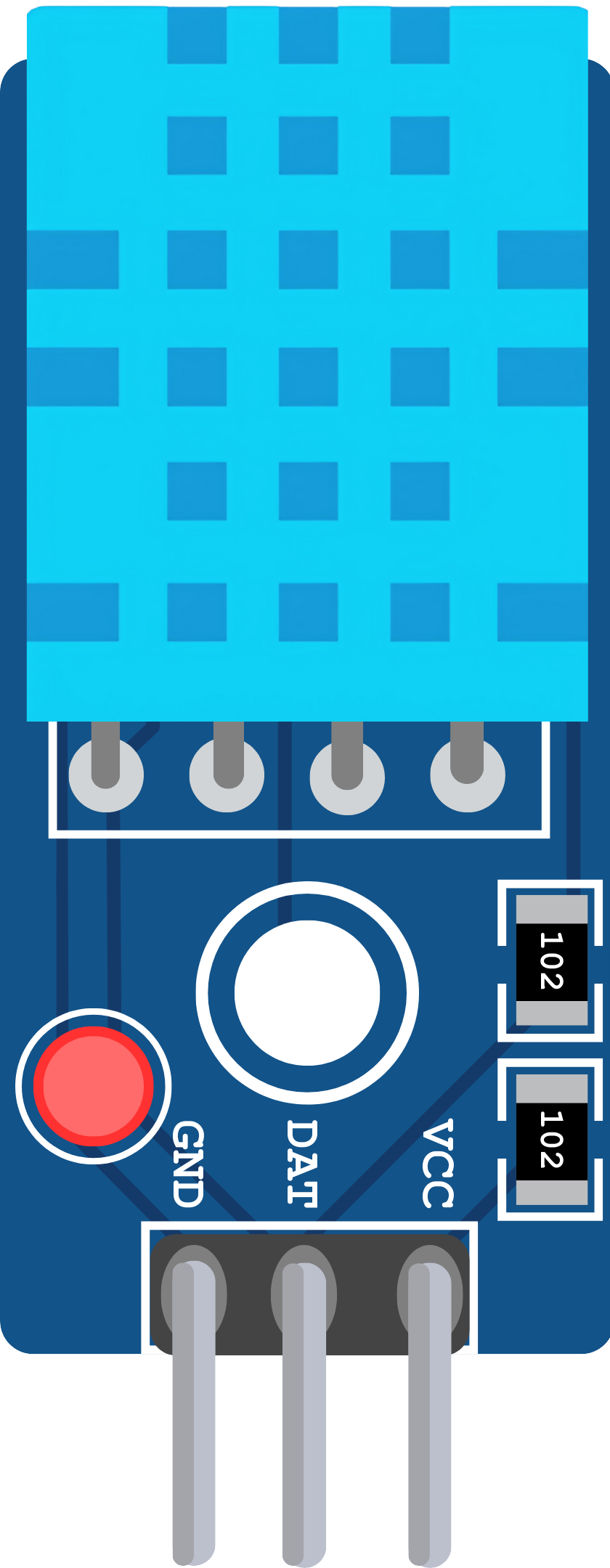

Image of DHT11 Sensor Module
Cirkit Designer LogoDesign with DHT11 Sensor Module in Cirkit Designer

Introduction

The DHT11 Sensor Module is a digital temperature and humidity sensor designed to provide accurate readings of environmental conditions. It features a calibrated digital signal output and uses a single-wire communication protocol, making it easy to interface with microcontrollers. The DHT11 is widely used in applications such as weather monitoring systems, home automation, and HVAC control.

Explore Projects Built with DHT11 Sensor Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino and ESP8266 Based Environmental Monitoring System with LoRa Communication
Image of MP50: A project utilizing DHT11 Sensor Module in a practical application
This circuit is a multi-sensor data acquisition system with wireless communication capabilities. It uses an Arduino 101 to interface with a DHT11 temperature and humidity sensor, an MQ2 gas sensor, a flow rate sensor, and a PH meter. The data collected from these sensors is transmitted via a LoRa Ra-02 SX1278 module, and the system can also communicate with an ESP8266 module for additional wireless functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU-Based Weather Monitoring Station with LCD Display
Image of IOT: A project utilizing DHT11 Sensor Module in a practical application
This is an environmental monitoring system that uses an ESP8266 NodeMCU to collect data from a DHT11 temperature and humidity sensor, an LDR light sensor, and a rain sensor. The data is displayed on a 16x2 LCD screen, interfaced through an I2C module for simplified communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU with DHT11 Sensor for Temperature and Humidity Monitoring
Image of temperature and humidity sensore : A project utilizing DHT11 Sensor Module in a practical application
This circuit connects a DHT11 Humidity and Temperature Sensor to an ESP8266 NodeMCU microcontroller. The DHT11 sensor's data pin is interfaced with the D5 pin on the NodeMCU for digital signal communication, while both the sensor and the NodeMCU share a common ground (GND). The sensor is powered by the NodeMCU's VIN pin, which likely supplies the required voltage for the DHT11 to operate.
Cirkit Designer LogoOpen Project in Cirkit Designer
NodeMCU ESP8266 with DHT11 and MQ Gas Sensors for Environmental Monitoring
Image of air quality monitoring: A project utilizing DHT11 Sensor Module in a practical application
This circuit features a NodeMCU V3 ESP8266 microcontroller interfaced with an array of sensors for environmental monitoring. The KY-015 DHT11 sensor is connected for temperature and humidity readings, while the MQ-2 and MQ135 sensors are used for detecting various gases and air quality. The NodeMCU reads analog and digital signals from these sensors to process and potentially transmit environmental data.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DHT11 Sensor Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of MP50: A project utilizing DHT11 Sensor Module in a practical application
Arduino and ESP8266 Based Environmental Monitoring System with LoRa Communication
This circuit is a multi-sensor data acquisition system with wireless communication capabilities. It uses an Arduino 101 to interface with a DHT11 temperature and humidity sensor, an MQ2 gas sensor, a flow rate sensor, and a PH meter. The data collected from these sensors is transmitted via a LoRa Ra-02 SX1278 module, and the system can also communicate with an ESP8266 module for additional wireless functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IOT: A project utilizing DHT11 Sensor Module in a practical application
ESP8266 NodeMCU-Based Weather Monitoring Station with LCD Display
This is an environmental monitoring system that uses an ESP8266 NodeMCU to collect data from a DHT11 temperature and humidity sensor, an LDR light sensor, and a rain sensor. The data is displayed on a 16x2 LCD screen, interfaced through an I2C module for simplified communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of temperature and humidity sensore : A project utilizing DHT11 Sensor Module in a practical application
ESP8266 NodeMCU with DHT11 Sensor for Temperature and Humidity Monitoring
This circuit connects a DHT11 Humidity and Temperature Sensor to an ESP8266 NodeMCU microcontroller. The DHT11 sensor's data pin is interfaced with the D5 pin on the NodeMCU for digital signal communication, while both the sensor and the NodeMCU share a common ground (GND). The sensor is powered by the NodeMCU's VIN pin, which likely supplies the required voltage for the DHT11 to operate.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of air quality monitoring: A project utilizing DHT11 Sensor Module in a practical application
NodeMCU ESP8266 with DHT11 and MQ Gas Sensors for Environmental Monitoring
This circuit features a NodeMCU V3 ESP8266 microcontroller interfaced with an array of sensors for environmental monitoring. The KY-015 DHT11 sensor is connected for temperature and humidity readings, while the MQ-2 and MQ135 sensors are used for detecting various gases and air quality. The NodeMCU reads analog and digital signals from these sensors to process and potentially transmit environmental data.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Weather stations for monitoring temperature and humidity
  • Home automation systems for environmental control
  • Greenhouse monitoring
  • HVAC (Heating, Ventilation, and Air Conditioning) systems
  • IoT (Internet of Things) projects

Technical Specifications

The DHT11 Sensor Module is designed for low-cost, low-power applications. Below are its key technical details:

Parameter Value
Operating Voltage 3.3V to 5.5V
Operating Current 0.3mA (measuring), 60µA (standby)
Temperature Range 0°C to 50°C
Temperature Accuracy ±2°C
Humidity Range 20% to 90% RH
Humidity Accuracy ±5% RH
Sampling Period 1 second
Communication Protocol Single-wire (digital)

Pin Configuration and Descriptions

The DHT11 Sensor Module typically has three or four pins. Below is the pinout for the module:

Pin Name Description
1 VCC Power supply pin (3.3V to 5.5V)
2 DATA Digital data output pin for temperature and humidity readings
3 NC (or GND) Not connected (on some modules) or Ground pin (connect to GND of the circuit)
4 GND Ground pin (if present, connect to GND of the circuit)

Note: Some DHT11 modules include a pull-up resistor on the DATA pin. If your module does not, you may need to add an external 10kΩ pull-up resistor between the DATA pin and VCC.

Usage Instructions

How to Use the DHT11 Sensor Module in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground of your circuit.
  2. Connect the DATA Pin: Connect the DATA pin to a digital input pin on your microcontroller. If required, add a 10kΩ pull-up resistor between the DATA pin and VCC.
  3. Install Required Libraries: If using an Arduino, install the "DHT sensor library" by Adafruit from the Arduino Library Manager.
  4. Write the Code: Use the library functions to initialize the sensor and read temperature and humidity data.

Important Considerations and Best Practices

  • Sampling Rate: The DHT11 has a minimum sampling period of 1 second. Avoid reading data more frequently to ensure accurate results.
  • Environmental Conditions: The sensor is designed for indoor use. Avoid exposing it to extreme temperatures, high humidity, or water.
  • Cable Length: Keep the cable length between the sensor and microcontroller as short as possible to reduce signal degradation.
  • Pull-Up Resistor: Ensure a pull-up resistor is used on the DATA pin if not already included on the module.

Example Code for Arduino UNO

Below is an example of how to use the DHT11 Sensor Module with an Arduino UNO:

#include "DHT.h"  // Include the DHT library

#define DHTPIN 2     // Pin connected to the DATA pin of the DHT11
#define DHTTYPE DHT11 // Define the sensor type (DHT11)

DHT dht(DHTPIN, DHTTYPE); // Initialize the DHT sensor

void setup() {
  Serial.begin(9600); // Start the serial communication
  dht.begin();        // Initialize the DHT sensor
  Serial.println("DHT11 Sensor Initialized");
}

void loop() {
  delay(2000); // Wait 2 seconds between readings

  float temperature = dht.readTemperature(); // Read temperature in Celsius
  float humidity = dht.readHumidity();       // Read humidity percentage

  // Check if the readings are valid
  if (isnan(temperature) || isnan(humidity)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the readings to the Serial Monitor
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");

  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.println(" %");
}

Note: Ensure the DHT library is installed in your Arduino IDE before uploading the code.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Data or Incorrect Readings

    • Cause: Missing or incorrect pull-up resistor on the DATA pin.
    • Solution: Add a 10kΩ pull-up resistor between the DATA pin and VCC.
  2. "Failed to read from DHT sensor!" Error

    • Cause: Loose connections or incorrect wiring.
    • Solution: Double-check all connections and ensure the DATA pin is connected to the correct digital pin on the microcontroller.
  3. Inconsistent Readings

    • Cause: Reading data too frequently.
    • Solution: Ensure a delay of at least 1 second between consecutive readings.
  4. High Cable Length

    • Cause: Long cables can cause signal degradation.
    • Solution: Use shorter cables or add a capacitor (e.g., 100nF) between VCC and GND near the sensor.

FAQs

Q: Can the DHT11 measure negative temperatures?
A: No, the DHT11 can only measure temperatures in the range of 0°C to 50°C.

Q: Can I use the DHT11 outdoors?
A: The DHT11 is not designed for outdoor use. For outdoor applications, consider using a sensor with a wider operating range and better environmental protection, such as the DHT22.

Q: What is the difference between the DHT11 and DHT22?
A: The DHT22 offers a wider temperature and humidity range, higher accuracy, and faster response time compared to the DHT11, but it is more expensive.

Q: Do I need an external library to use the DHT11 with Arduino?
A: Yes, it is recommended to use the Adafruit DHT library for easier implementation and reliable performance.
