How to Use VL53L0X: Examples, Pinouts, and Specs

The VL53L0X is a time-of-flight (ToF) distance sensor that utilizes laser technology to measure distances with high precision. It can measure distances up to 2 meters and is designed to provide fast and reliable results. Its compact size and low power consumption make it ideal for a wide range of applications, including robotics, automation, gesture recognition, and proximity sensing.

• Obstacle detection in robotics
• Proximity sensing in consumer electronics
• Gesture recognition systems
• Distance measurement in industrial automation
• Object tracking in drones and autonomous vehicles

Below are the key technical details of the VL53L0X sensor:

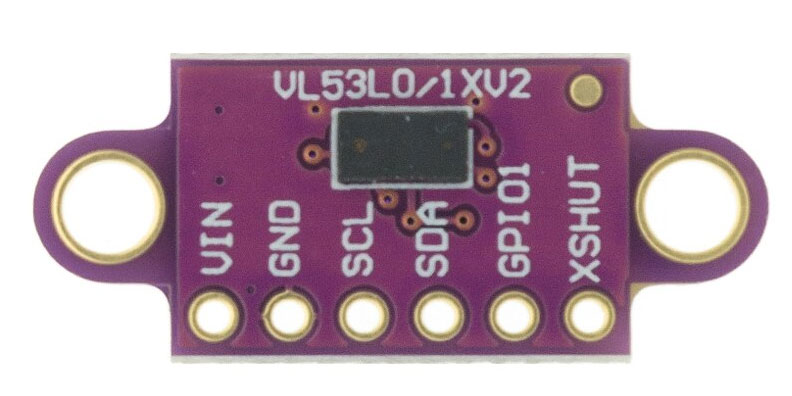

The VL53L0X sensor has six pins, as described in the table below:

1. Power Supply: Connect the VIN pin to a 3.3V or 5V power source and the GND pin to ground.
2. I²C Communication: Connect the SDA and SCL pins to the corresponding I²C pins on your microcontroller. Use pull-up resistors (typically 4.7kΩ) on both lines if not already present.
3. Shutdown Control: Optionally, connect the XSHUT pin to a GPIO pin on your microcontroller to enable or disable the sensor.
4. Interrupts: If needed, connect the GPIO1 pin to a microcontroller pin to handle interrupts.

• Ensure the sensor is not exposed to direct sunlight or reflective surfaces, as this may affect accuracy.
• Place the sensor at least 30mm away from the target object for reliable measurements.
• Use a level shifter if your microcontroller operates at 5V logic levels, as the VL53L0X operates at 3.3V logic.

Below is an example of how to use the VL53L0X with an Arduino UNO. This code uses the Adafruit VL53L0X library, which can be installed via the Arduino Library Manager.

#include <Wire.h>
#include <Adafruit_VL53L0X.h>

// Create an instance of the VL53L0X sensor
Adafruit_VL53L0X lox = Adafruit_VL53L0X();

void setup() {
  Serial.begin(9600); // Initialize serial communication
  while (!Serial) {
    delay(10); // Wait for the serial monitor to open
  }

  Serial.println("VL53L0X Test");

  // Initialize the sensor
  if (!lox.begin()) {
    Serial.println("Failed to initialize VL53L0X! Check connections.");
    while (1); // Halt execution if initialization fails
  }
}

void loop() {
  VL53L0X_RangingMeasurementData_t measure;

  // Perform a distance measurement
  lox.rangingTest(&measure, false);

  // Check if the measurement is valid
  if (measure.RangeStatus != 4) { // 4 indicates an out-of-range error
    Serial.print("Distance (mm): ");
    Serial.println(measure.RangeMilliMeter);
  } else {
    Serial.println("Out of range");
  }

  delay(100); // Wait 100ms before the next measurement
}

• Ensure the I²C address of the VL53L0X matches the default address (0x29) or modify the library settings if using multiple sensors.
• Use a stable power supply to avoid measurement errors.

1. Sensor Not Detected

   • Cause: Incorrect I²C wiring or address conflict.
   • Solution: Verify the SDA and SCL connections. Check for other devices on the I²C bus that may have the same address.

2. Inaccurate Measurements

   • Cause: Reflective or transparent surfaces in the sensor's field of view.
   • Solution: Avoid placing the sensor near reflective or transparent objects. Use a matte surface for testing.

3. Out-of-Range Errors

   • Cause: Target object is too close (<30mm) or too far (>2000mm).
   • Solution: Ensure the object is within the sensor's measurement range.

4. Interference from Ambient Light

   • Cause: Strong ambient light or sunlight affecting the sensor.
   • Solution: Shield the sensor from direct light or use it in controlled lighting conditions.

Q: Can I use multiple VL53L0X sensors on the same I²C bus?
A: Yes, but you must change the I²C address of each sensor. This can be done by toggling the XSHUT pin and reinitializing each sensor with a unique address.

Q: What is the maximum measurement frequency of the VL53L0X?
A: The sensor can perform up to 50 measurements per second, depending on the configuration.

Q: Does the VL53L0X require calibration?
A: The sensor is factory-calibrated, but additional calibration may be needed for specific applications or environments.

Q: Can the VL53L0X detect transparent objects?
A: No, the sensor is not designed to detect transparent objects like glass or clear plastic.
