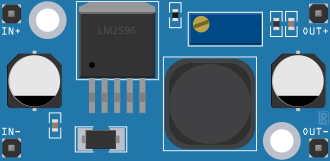

Image of LM2596S DC-DC STEP DOWN
Cirkit Designer LogoDesign with LM2596S DC-DC STEP DOWN in Cirkit Designer

Introduction

The LM2596S is a step-down (buck) voltage regulator designed to efficiently convert a higher input voltage to a lower output voltage. Manufactured by CN China, this component is widely used in power supply applications due to its high efficiency, ease of use, and robust protection features. It can deliver up to 3A of output current and includes built-in thermal shutdown, current limiting, and short-circuit protection.

Explore Projects Built with LM2596S DC-DC STEP DOWN

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
Image of solar system router ups: A project utilizing LM2596S DC-DC STEP DOWN in a practical application
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing LM2596S DC-DC STEP DOWN in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing LM2596S DC-DC STEP DOWN in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Micro USB Power Supply with Buck Converter
Image of ac: A project utilizing LM2596S DC-DC STEP DOWN in a practical application
This circuit is designed to convert AC power to regulated DC power. An AC source feeds a power transformer that steps down the voltage, which is then rectified by a bridge rectifier to produce a pulsating DC. This DC is further converted to a stable DC output by a step-down buck converter, which then provides power through a Micro USB connector.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LM2596S DC-DC STEP DOWN

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of solar system router ups: A project utilizing LM2596S DC-DC STEP DOWN in a practical application
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing LM2596S DC-DC STEP DOWN in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test 1 ih: A project utilizing LM2596S DC-DC STEP DOWN in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ac: A project utilizing LM2596S DC-DC STEP DOWN in a practical application
AC to DC Micro USB Power Supply with Buck Converter
This circuit is designed to convert AC power to regulated DC power. An AC source feeds a power transformer that steps down the voltage, which is then rectified by a bridge rectifier to produce a pulsating DC. This DC is further converted to a stable DC output by a step-down buck converter, which then provides power through a Micro USB connector.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Power supply modules for embedded systems
  • Battery-powered devices
  • Voltage regulation for microcontrollers and sensors
  • LED drivers
  • Industrial automation systems

Technical Specifications

Key Technical Details

Parameter Value
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.23V to 37V (adjustable)
Maximum Output Current 3A
Efficiency Up to 92%
Switching Frequency 150 kHz
Output Voltage Accuracy ±4%
Thermal Shutdown Yes
Current Limiting Yes
Package Type TO-263 (Surface Mount)

Pin Configuration and Descriptions

The LM2596S has 5 pins, as described in the table below:

Pin Number Pin Name Description
1 VIN Input voltage pin. Connect to the unregulated DC input voltage.
2 Output Regulated output voltage pin. Connect to the load.
3 Ground Ground pin. Connect to the system ground.
4 Feedback Feedback pin. Used to set the output voltage via an external resistor divider.
5 ON/OFF Enable pin. Logic high enables the regulator; logic low disables it.

Usage Instructions

How to Use the LM2596S in a Circuit

  1. Input Voltage: Ensure the input voltage (VIN) is within the range of 4.5V to 40V.
  2. Output Voltage Adjustment: Use a resistor divider network connected to the Feedback pin to set the desired output voltage. The output voltage can be calculated using the formula: [ V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right) ] where ( V_{REF} ) is 1.23V, and ( R1 ) and ( R2 ) are the resistors in the divider.
  3. Capacitors: Add input and output capacitors to stabilize the circuit. Typical values are:
    • Input capacitor: 100 µF electrolytic
    • Output capacitor: 220 µF electrolytic
  4. Inductor Selection: Choose an inductor with a current rating higher than the maximum output current (3A) and an appropriate inductance value (e.g., 33 µH).
  5. Enable Pin: Connect the ON/OFF pin to VIN for continuous operation or control it with a microcontroller or switch.

Example Circuit

Below is a basic circuit diagram for the LM2596S:

VIN ----+---- Input Capacitor ----+---- LM2596S ----+---- Output Capacitor ---- VOUT
        |                        |                 |                           |
       GND                      GND               GND                         GND

Arduino UNO Example Code

The LM2596S can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Here's an example code to control the ON/OFF pin using a digital output pin:

// Define the ON/OFF pin connected to the LM2596S
const int enablePin = 7;

void setup() {
  pinMode(enablePin, OUTPUT); // Set the pin as an output
  digitalWrite(enablePin, HIGH); // Enable the LM2596S regulator
}

void loop() {
  // The LM2596S will remain enabled as long as the pin is HIGH
  // Add your main code here
}

Important Considerations

  • Heat Dissipation: The LM2596S can generate heat during operation. Use a heatsink or ensure proper ventilation if operating at high currents.
  • Input Voltage Ripple: Minimize input voltage ripple by using a low-ESR input capacitor.
  • Output Voltage Accuracy: Use precision resistors in the feedback network for better output voltage accuracy.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage

    • Cause: The ON/OFF pin is not properly connected.
    • Solution: Ensure the ON/OFF pin is connected to VIN or controlled by a microcontroller.
  2. Output Voltage is Incorrect

    • Cause: Incorrect resistor values in the feedback network.
    • Solution: Verify the resistor values and recalculate the output voltage using the formula.
  3. Overheating

    • Cause: Excessive current draw or insufficient cooling.
    • Solution: Reduce the load current or add a heatsink to the LM2596S.
  4. High Output Ripple

    • Cause: Insufficient output capacitance or poor capacitor quality.
    • Solution: Use a low-ESR capacitor with a higher capacitance value.

FAQs

Q1: Can the LM2596S be used for 3.3V output?
A1: Yes, the LM2596S can be configured for a 3.3V output by selecting the appropriate resistor values in the feedback network.

Q2: What is the maximum input voltage for the LM2596S?
A2: The maximum input voltage is 40V. Exceeding this value may damage the component.

Q3: Can the LM2596S operate without a heatsink?
A3: It depends on the load current. For currents below 1A, a heatsink may not be necessary. For higher currents, a heatsink is recommended to prevent overheating.

Q4: Is the LM2596S suitable for battery-powered applications?
A4: Yes, its high efficiency makes it ideal for battery-powered devices, as it minimizes power loss.

Q5: Can the LM2596S be used with an Arduino Nano?
A5: Yes, the LM2596S can step down a higher voltage to 5V or 3.3V to power an Arduino Nano.
