How to Use Battery Holders: Examples, Pinouts, and Specs

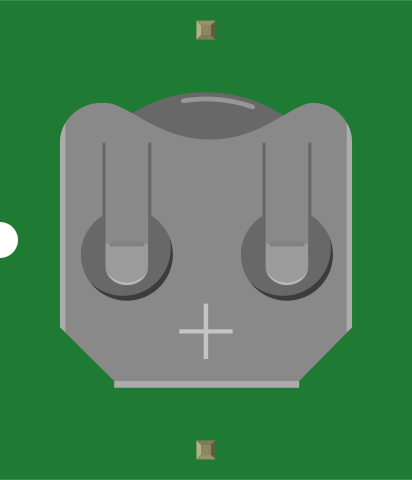

Battery holders are devices that securely hold batteries in place, providing electrical connections to the battery terminals while allowing for easy replacement and maintenance. They are commonly used in portable electronic devices, DIY projects, and prototyping. Battery holders come in various configurations to accommodate different battery sizes (e.g., AA, AAA, 9V, coin cells) and quantities.

• Portable electronic devices (e.g., flashlights, remote controls)
• DIY electronics and prototyping
• Robotics and IoT projects
• Backup power supplies
• Educational kits and experiments

Battery holders vary in design and specifications depending on the type and size of the batteries they support. Below are general specifications for common types of battery holders:

• Material: Plastic (ABS or polycarbonate) with metal contacts (nickel-plated or stainless steel)
• Voltage: Depends on the number and type of batteries (e.g., 1.5V per AA/AAA cell)
• Current Rating: Typically up to 2A (varies by holder type)
• Mounting Options: Panel mount, PCB mount, or free-standing
• Connection Type: Solder tabs, wire leads, or snap connectors

Battery holders do not have traditional "pins" like ICs but instead feature terminals or leads for electrical connections. Below is a table describing the common connection points:

1. Select the Appropriate Holder: Choose a battery holder that matches the size and number of batteries required for your circuit (e.g., AA, AAA, 9V, or coin cell).
2. Insert Batteries: Place the batteries into the holder, ensuring correct polarity (match the "+" and "-" markings on the holder with the battery terminals).
3. Connect to Circuit:
   • For holders with wire leads, connect the red wire to the positive terminal of your circuit and the black wire to the negative terminal.
   • For PCB-mounted holders, solder the terminals to the appropriate pads on the PCB.
   • For 9V snap connectors, attach the male and female snaps to the battery and connect the wires to your circuit.
4. Secure the Holder: If necessary, use screws, adhesive, or clips to secure the holder to your project enclosure.

• Polarity: Always double-check the polarity of the batteries and connections to avoid damage to your circuit.
• Current Rating: Ensure the battery holder can handle the current requirements of your circuit.
• Mounting: Secure the holder properly to prevent movement or disconnection during operation.
• Battery Type: Use only the specified battery type to avoid overheating or damage.
• Maintenance: Periodically check for corrosion or loose connections, especially in outdoor or high-humidity environments.

Below is an example of using a 4xAA battery holder (6V output) to power an Arduino UNO:

/* Example: Powering an Arduino UNO with a 4xAA Battery Holder
   Ensure the battery holder provides 6V (4xAA batteries) and connect it to the
   Arduino's VIN and GND pins. */

void setup() {
  // No setup required for power input
}

void loop() {
  // Your Arduino code goes here
}

Connection Instructions:

• Connect the positive terminal of the battery holder to the Arduino's VIN pin.
• Connect the negative terminal of the battery holder to the Arduino's GND pin.

1. No Power to the Circuit:

   • Cause: Batteries inserted incorrectly or depleted.
   • Solution: Check battery polarity and replace batteries if necessary.

2. Loose Connections:

   • Cause: Terminals or wires are not securely connected.
   • Solution: Ensure all connections are tight and soldered if needed.

3. Corrosion on Terminals:

   • Cause: Exposure to moisture or leaking batteries.
   • Solution: Clean terminals with a small amount of isopropyl alcohol and a cotton swab. Replace the holder if corrosion is severe.

4. Overheating:

   • Cause: Exceeding the current rating of the holder.
   • Solution: Use a holder rated for higher current or reduce the load on the circuit.

Q: Can I use rechargeable batteries with a battery holder?
A: Yes, most battery holders support rechargeable batteries (e.g., NiMH or Li-ion), but ensure the voltage and size match the holder's specifications.

Q: How do I secure a battery holder in my project?
A: Use screws, adhesive tape, or mounting brackets to secure the holder. Some holders come with built-in mounting holes for easy installation.

Q: Can I connect multiple battery holders in series or parallel?
A: Yes, you can connect holders in series to increase voltage or in parallel to increase capacity. Ensure proper wiring and polarity.

Q: What should I do if my battery holder gets hot?
A: Disconnect the power immediately and check for short circuits or excessive current draw. Replace the holder if damaged.
