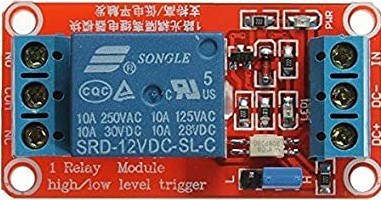

How to Use 12v Relay: Examples, Pinouts, and Specs

A 12V relay is an electromechanical switch that uses an electromagnetic coil to open or close its internal contacts. This allows a low-power control signal to manage a high-power circuit, making it an essential component in many electronic and electrical systems. Relays are widely used for automation, isolation, and control purposes.

• Home Automation: Controlling lights, fans, and appliances.
• Automotive Systems: Switching headlights, horns, and other vehicle electronics.
• Industrial Control: Managing motors, pumps, and solenoids.
• Microcontroller Projects: Interfacing with Arduino, Raspberry Pi, or other microcontrollers to control high-power devices.

Below are the key technical details of a standard 12V relay:

The 12V relay typically has 5 pins for SPDT configuration. Below is the pinout:

1. Power the Coil: Connect the coil terminals (pins 1 and 2) to a 12V DC power source. Use a transistor or MOSFET to control the coil with a low-power signal from a microcontroller.
2. Connect the Load:
   • Connect the load's power source to the COM pin (pin 3).
   • Connect the load to either the NO pin (pin 4) or the NC pin (pin 5), depending on the desired behavior:
     • Use NO if the load should be powered only when the relay is activated.
     • Use NC if the load should be powered when the relay is inactive.
3. Control the Relay: Use a microcontroller or switch to activate the relay by energizing the coil.

• Diode Protection: Always place a flyback diode (e.g., 1N4007) across the coil terminals to protect the circuit from voltage spikes caused by the collapsing magnetic field when the relay is deactivated.
• Current Ratings: Ensure the relay's contact ratings (voltage and current) are sufficient for the load.
• Isolation: Use optocouplers or transistors to isolate the control circuit from the high-power load circuit.
• Power Supply: Provide a stable 12V DC supply to the relay coil to ensure reliable operation.

Below is an example of how to control a 12V relay using an Arduino UNO:

// Define the pin connected to the relay module
const int relayPin = 7;

void setup() {
  pinMode(relayPin, OUTPUT); // Set the relay pin as an output
  digitalWrite(relayPin, LOW); // Ensure the relay is off initially
}

void loop() {
  digitalWrite(relayPin, HIGH); // Activate the relay
  delay(5000); // Keep the relay on for 5 seconds
  digitalWrite(relayPin, LOW); // Deactivate the relay
  delay(5000); // Keep the relay off for 5 seconds
}

Note: Ensure the relay module has a built-in transistor and flyback diode for safe operation with the Arduino.

1. Relay Not Activating:

   • Cause: Insufficient voltage or current to the coil.
   • Solution: Verify the power supply provides 12V DC and sufficient current. Check connections.

2. Load Not Switching:

   • Cause: Incorrect wiring of the load circuit.
   • Solution: Double-check the connections to the COM, NO, and NC pins.

3. Microcontroller Resetting:

   • Cause: Voltage spikes from the relay coil.
   • Solution: Add a flyback diode across the coil terminals.

4. Relay Clicking Rapidly:

   • Cause: Unstable control signal or insufficient power supply.
   • Solution: Stabilize the control signal and ensure the power supply can handle the relay's current draw.

• Q: Can I use a 12V relay with a 5V microcontroller?
  A: Yes, but you need a transistor or relay driver circuit to amplify the 5V signal to 12V for the relay coil.

• Q: What is the purpose of the flyback diode?
  A: It protects the circuit from voltage spikes generated when the relay coil is de-energized.

• Q: Can I use the relay to switch AC loads?
  A: Yes, as long as the load's voltage and current are within the relay's rated specifications.

• Q: How do I know if the relay is SPDT or DPDT?
  A: Check the relay's datasheet or count the number of pins. SPDT relays typically have 5 pins, while DPDT relays have 8 pins.
