How to Use ESP8266 LoLin NodeMCU V3: Examples, Pinouts, and Specs

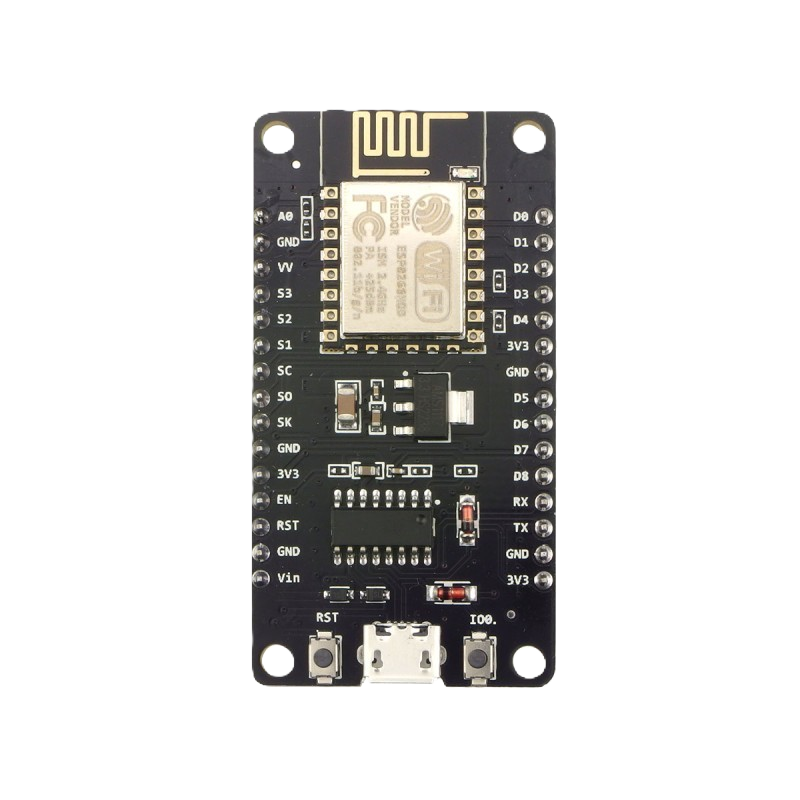

The ESP8266 LoLin NodeMCU V3 is a low-cost Wi-Fi microcontroller board based on the ESP8266 chip. It is designed for IoT (Internet of Things) applications and features a built-in USB interface for easy programming. The board includes a variety of GPIO (General Purpose Input/Output) pins, making it suitable for connecting sensors, actuators, and other devices. Its compact design and integrated Wi-Fi capabilities make it a popular choice for hobbyists and professionals alike.

• Home automation systems
• IoT devices and prototypes
• Wireless sensor networks
• Smart appliances
• Remote data logging and monitoring
• Educational projects and learning platforms

• Microcontroller: ESP8266
• Operating Voltage: 3.3V
• Input Voltage (via USB): 5V
• Flash Memory: 4MB
• Clock Speed: 80 MHz (can be overclocked to 160 MHz)
• Wi-Fi Standard: 802.11 b/g/n
• GPIO Pins: 11 (including ADC)
• ADC Resolution: 10-bit
• USB Interface: CH340G USB-to-Serial converter
• Power Consumption: ~70mA (idle), up to 200mA (Wi-Fi active)
• Dimensions: 58mm x 31mm x 13mm

The ESP8266 LoLin NodeMCU V3 has a total of 30 pins. Below is the pinout description:

1. Powering the Board:

   • Connect the board to your computer using a micro-USB cable. This will power the board and allow programming.
   • Alternatively, supply 5V to the VIN pin and connect GND to the ground of your power source.

2. Programming the Board:

   • Install the Arduino IDE and add the ESP8266 board package via the Board Manager.
   • Select "NodeMCU 1.0 (ESP-12E Module)" from the Tools > Board menu.
   • Connect the board to your computer and select the appropriate COM port.

3. Connecting Components:

   • Use the GPIO pins (D0-D8) for digital input/output or PWM signals.
   • Use the A0 pin for reading analog signals (e.g., from a potentiometer or sensor).
   • For I2C communication, connect your device to the SDA and SCL pins.
   • For SPI communication, use the SD3 and SD2 pins.

4. Uploading Code:

   • Write your code in the Arduino IDE and click the "Upload" button to flash it to the board.

• Voltage Levels: The GPIO pins operate at 3.3V. Do not connect 5V signals directly to the pins, as this may damage the board.
• Wi-Fi Power Consumption: Ensure your power supply can handle the peak current draw of ~200mA during Wi-Fi transmissions.
• Reset and Flash Buttons: Use the RST button to reset the board and the Flash button to enter bootloader mode if needed.
• External Pull-Up/Down Resistors: For stable operation, use pull-up or pull-down resistors on GPIO pins as required.

Below is an example of how to connect the ESP8266 LoLin NodeMCU V3 to an Arduino UNO for basic communication:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial esp8266(2, 3); // RX = Pin 2, TX = Pin 3

void setup() {
  Serial.begin(9600); // Start Serial Monitor at 9600 baud
  esp8266.begin(9600); // Start ESP8266 communication at 9600 baud

  Serial.println("ESP8266 Communication Initialized");
  esp8266.println("AT"); // Send AT command to test communication
}

void loop() {
  // Check if data is available from ESP8266
  if (esp8266.available()) {
    String data = esp8266.readString();
    Serial.println("From ESP8266: " + data);
  }

  // Check if data is available from Serial Monitor
  if (Serial.available()) {
    String command = Serial.readString();
    esp8266.println(command); // Send command to ESP8266
  }
}

1. Board Not Detected by Computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Install the CH340G USB driver if the board is not recognized.

2. Upload Fails with "Failed to Connect" Error:

   • Press and hold the Flash button while uploading the code.
   • Ensure the correct COM port and board type are selected in the Arduino IDE.

3. Wi-Fi Connection Issues:

   • Verify the SSID and password in your code.
   • Ensure the router is within range and supports 2.4 GHz Wi-Fi.

4. GPIO Pin Malfunction:

   • Check for incorrect voltage levels or short circuits.
   • Avoid using GPIO0 and GPIO2 for input during boot, as they affect boot modes.

Q: Can I power the board with a 5V power supply?
A: Yes, you can power the board via the VIN pin or USB port with a 5V supply. The onboard regulator will step it down to 3.3V.

Q: How do I reset the board?
A: Press the RST button to reset the microcontroller.

Q: Can I use the board with 5V logic devices?
A: No, the GPIO pins are not 5V tolerant. Use a level shifter to interface with 5V devices.

Q: What is the maximum Wi-Fi range?
A: The range depends on the environment but is typically around 30-50 meters indoors and up to 100 meters outdoors.
