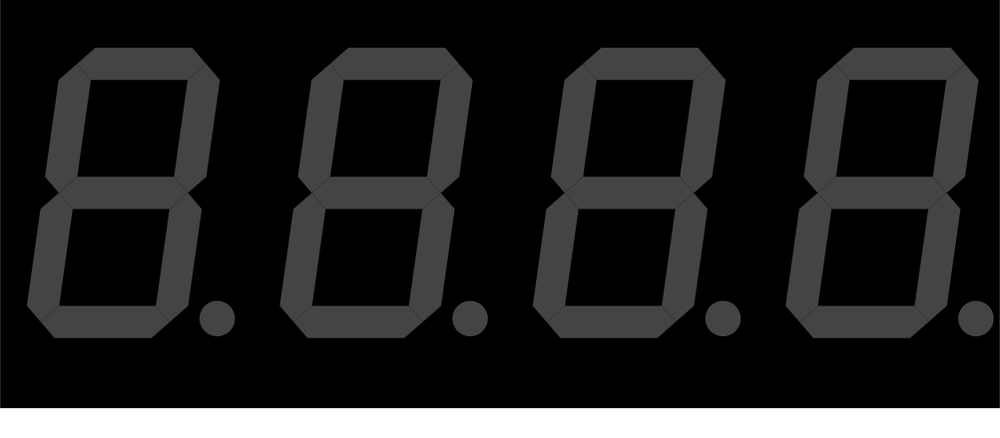

Design with 4 Digit Seven Segment Display in Cirkit DesignerThe 4 Digit Seven Segment Display is a versatile display device that consists of four sets of seven LED segments, each capable of representing decimal numbers (0-9) and some alphabetic characters. By illuminating specific combinations of segments, the display can visually represent numeric and alphanumeric data. This component is widely used in digital clocks, counters, timers, and other devices requiring a simple and efficient way to display information.
This circuit uses an Arduino UNO to control a 4-digit 7-segment display. The Arduino is programmed to sequentially display the numbers 1, 2, 3, and 4 on the display by driving the appropriate segments and digits.
Open Project in Cirkit Designer
This circuit utilizes an Arduino UNO to control a seven-segment display, allowing it to display digits from 0 to 9 in a sequential manner. The Arduino is programmed to set the appropriate pins high or low to illuminate the segments of the display, creating the desired digit patterns. The display updates every second, providing a simple visual output for numerical representation.
Open Project in Cirkit Designer
This circuit features an Arduino UNO controlling multiple blue LEDs and a 4-digit 7-segment display. The LEDs are configured with current-limiting resistors, and the display is interfaced with the Arduino for potential numeric or character output. The provided code for the Arduino is a template without specific functionality.
Open Project in Cirkit Designer
This is a user-interactive circuit where an Arduino UNO microcontroller drives a seven-segment display and reads input from two pushbuttons. The display's segments are individually controlled by the Arduino, and the pushbuttons are set up to provide user input, potentially to change the displayed digit or trigger other actions.
Open Project in Cirkit DesignerBelow are the key technical details of the 4 Digit Seven Segment Display:
| Parameter | Value |
|---|---|
| Operating Voltage | 3.3V to 5V |
| Operating Current | ~20mA per segment (typical) |
| Number of Digits | 4 |
| Number of Segments | 7 per digit + 1 decimal point |
| Display Type | Common Cathode or Common Anode |
| LED Color | Red (commonly), Green, Blue |
| Dimensions | Varies (e.g., 50mm x 20mm) |
The pin configuration of a 4 Digit Seven Segment Display depends on whether it is a Common Cathode or Common Anode type. Below is a general pinout for a 12-pin display:
| Pin Number | Description |
|---|---|
| 1 | Segment "E" |
| 2 | Segment "D" |
| 3 | Common Cathode/Anode (Digit 4) |
| 4 | Segment "C" |
| 5 | Segment "DP" (Decimal Point) |
| 6 | Segment "B" |
| 7 | Segment "A" |
| 8 | Common Cathode/Anode (Digit 3) |
| 9 | Segment "F" |
| 10 | Common Cathode/Anode (Digit 2) |
| 11 | Segment "G" |
| 12 | Common Cathode/Anode (Digit 1) |
Note: Always refer to the datasheet of your specific display module for exact pinout details.
Below is an example of how to connect and control a 4 Digit Seven Segment Display using an Arduino UNO:
// Example code to control a 4 Digit Seven Segment Display with Arduino UNO
// This code uses multiplexing to display "1234" on the display.
const int segmentPins[] = {2, 3, 4, 5, 6, 7, 8, 9}; // Pins for segments A-G, DP
const int digitPins[] = {10, 11, 12, 13}; // Pins for digit control
// Segment patterns for digits 0-9 (Common Cathode configuration)
const byte digitPatterns[] = {
0b00111111, // 0
0b00000110, // 1
0b01011011, // 2
0b01001111, // 3
0b01100110, // 4
0b01101101, // 5
0b01111101, // 6
0b00000111, // 7
0b01111111, // 8
0b01101111 // 9
};
void setup() {
// Set segment pins as outputs
for (int i = 0; i < 8; i++) {
pinMode(segmentPins[i], OUTPUT);
}
// Set digit pins as outputs
for (int i = 0; i < 4; i++) {
pinMode(digitPins[i], OUTPUT);
}
}
void loop() {
int numberToDisplay = 1234; // Number to display
for (int digit = 0; digit < 4; digit++) {
displayDigit(digit, (numberToDisplay / (int)pow(10, 3 - digit)) % 10);
delay(5); // Short delay for multiplexing
}
}
void displayDigit(int digit, int number) {
// Turn off all digits
for (int i = 0; i < 4; i++) {
digitalWrite(digitPins[i], HIGH); // HIGH for Common Cathode
}
// Set segment pattern for the number
for (int i = 0; i < 8; i++) {
digitalWrite(segmentPins[i], (digitPatterns[number] >> i) & 0x01);
}
// Turn on the current digit
digitalWrite(digitPins[digit], LOW); // LOW for Common Cathode
}
Q: Can I use this display with a 3.3V microcontroller?
A: Yes, but ensure the forward voltage of the LEDs is compatible with 3.3V. Use appropriate resistors.
Q: How do I display letters on the display?
A: Letters can be displayed by defining custom segment patterns in your code. Note that not all letters can be represented clearly.
Q: Can I control this display without multiplexing?
A: Yes, but it would require a separate microcontroller pin for each segment and digit, which is impractical for most applications.
Q: What is the difference between Common Cathode and Common Anode?
A: In Common Cathode, all cathodes are connected together and must be grounded. In Common Anode, all anodes are connected together and must be connected to the positive supply voltage.
