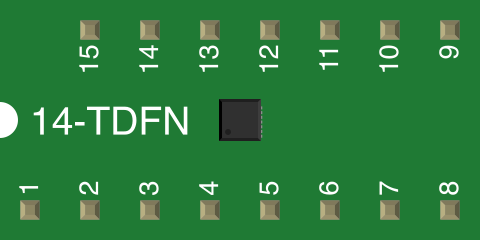

How to Use Stereo 3.7W Class D Amplifier: Examples, Pinouts, and Specs

The Stereo 3.7W Class D Amplifier is a compact and efficient audio amplifier designed to deliver high-quality sound output while consuming minimal power. Utilizing Class D technology, this amplifier is capable of providing up to 3.7 watts of power per channel, making it ideal for driving small speakers in portable or space-constrained applications. Its low heat dissipation and high efficiency make it suitable for battery-powered devices, DIY audio projects, and embedded systems.

• Portable Bluetooth speakers
• DIY audio systems
• Embedded audio solutions
• Battery-powered devices
• Soundbars and compact home audio systems

Below are the key technical details of the Stereo 3.7W Class D Amplifier:

The Stereo 3.7W Class D Amplifier typically comes in an 8-pin package. Below is the pin configuration:

1. Power Supply: Connect the VDD pin to a stable power source within the range of 2.5V to 5.5V. Ensure proper decoupling by placing a 0.1 µF ceramic capacitor close to the VDD pin.
2. Audio Input: Feed the left and right audio signals to the INL and INR pins, respectively. Use coupling capacitors (e.g., 1 µF) to block DC components in the input signal.
3. Speaker Connection: Connect the left and right speakers to the OUTL and OUTR pins. Ensure the speaker impedance is within the supported range (4Ω to 8Ω).
4. Shutdown Control: Use the SD pin to enable or disable the amplifier. Pull the pin high to enable the amplifier or low to put it in shutdown mode.
5. Noise Filtering: Connect a bypass capacitor (e.g., 0.1 µF) to the BYPASS pin to reduce noise and improve audio quality.

• Heat Management: Although Class D amplifiers are highly efficient, ensure proper ventilation to avoid overheating in high-power applications.
• Speaker Impedance: Use speakers with the recommended impedance (4Ω to 8Ω) to prevent damage to the amplifier.
• PCB Layout: Minimize the length of traces for power and ground connections to reduce noise and improve performance.
• Decoupling Capacitors: Always use decoupling capacitors close to the power supply pins to stabilize the voltage and reduce noise.

The Stereo 3.7W Class D Amplifier can be used with an Arduino UNO to amplify audio signals. Below is an example of how to generate a simple tone and output it to the amplifier:

// Example: Generating a tone with Arduino and driving the amplifier
// Connect the amplifier's INL or INR pin to Arduino's PWM pin (e.g., pin 9).

#define AUDIO_PIN 9  // PWM pin connected to the amplifier's audio input

void setup() {
  pinMode(AUDIO_PIN, OUTPUT);  // Set the audio pin as an output
}

void loop() {
  // Generate a 1 kHz tone for 1 second
  tone(AUDIO_PIN, 1000, 1000);  // tone(pin, frequency, duration)
  delay(1000);                  // Wait for 1 second

  // Pause for 1 second
  noTone(AUDIO_PIN);            // Stop the tone
  delay(1000);
}

Note: Use a low-pass filter (e.g., RC filter) between the Arduino PWM output and the amplifier input to smooth the signal and improve audio quality.

1. No Sound Output

   • Cause: The amplifier is in shutdown mode.
   • Solution: Ensure the SD pin is pulled high to enable the amplifier.

2. Distorted Audio

   • Cause: Input signal level is too high.
   • Solution: Reduce the input signal amplitude or use a voltage divider.

3. Excessive Noise

   • Cause: Poor power supply decoupling or long input traces.
   • Solution: Add decoupling capacitors near the VDD pin and minimize trace lengths.

4. Overheating

   • Cause: Speaker impedance is too low or insufficient ventilation.
   • Solution: Use speakers with the recommended impedance (4Ω to 8Ω) and ensure proper airflow.

• Can I use this amplifier with a 3.3V power supply? Yes, the amplifier supports a supply voltage range of 2.5V to 5.5V, so 3.3V is within the acceptable range.

• What is the maximum speaker wattage I can use? The amplifier can drive speakers up to 3.7W per channel. Ensure the speaker's power rating matches or exceeds this value.

• Do I need a heatsink for this amplifier? No, a heatsink is generally not required due to the high efficiency of Class D amplifiers. However, ensure proper ventilation in high-power applications.

• Can I use this amplifier for mono audio? Yes, you can use only one channel (e.g., INL and OUTL) for mono audio applications. Leave the unused channel unconnected.
