Introduction

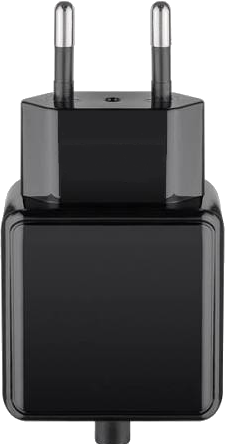

The Plug Power Supply 5V is a compact and reliable device designed to convert standard AC voltage from a wall outlet (typically 100-240V AC) into a stable 5V DC output. This component is widely used to power low-voltage electronic devices, microcontrollers, sensors, and other circuits requiring a regulated 5V DC supply. Its ease of use and universal compatibility make it an essential tool for hobbyists, engineers, and professionals alike.
Common Applications and Use Cases
- Powering microcontroller boards such as Arduino, Raspberry Pi, and ESP32.
- Supplying power to sensors, modules, and small electronic circuits.
- Charging USB-powered devices like smartphones and portable gadgets.
- Providing a stable 5V DC source for prototyping and testing electronic projects.
Technical Specifications
The following table outlines the key technical details of the Plug Power Supply 5V:
Pin Configuration and Descriptions
For models with a barrel jack connector, the pin configuration is as follows:
For USB-based models, the pin configuration is standard for USB connectors:
- VCC (5V): Supplies the 5V DC output.
- GND: Ground connection.
Usage Instructions
How to Use the Plug Power Supply 5V in a Circuit
- Verify Compatibility: Ensure the device or circuit you are powering operates at 5V DC and does not exceed the current rating of the power supply.
- Connect the Output:
- For barrel jack models, connect the center pin to the positive terminal of your circuit and the outer pin to ground.
- For USB models, plug the USB connector into the device or a USB breakout board.
- Plug into an AC Outlet: Insert the power supply into a standard wall outlet (100-240V AC).
- Power On the Circuit: Once connected, the power supply will provide a stable 5V DC output to your device.
Important Considerations and Best Practices
- Check Polarity: For barrel jack models, ensure the polarity matches your circuit's requirements to avoid damage.
- Avoid Overloading: Do not exceed the maximum current rating of the power supply, as this may trigger protection features or damage the unit.
- Use Proper Connectors: Ensure secure and reliable connections to prevent voltage drops or intermittent power issues.
- Ventilation: Avoid covering the power supply during operation to prevent overheating.
Example: Using with an Arduino UNO
The Plug Power Supply 5V can be used to power an Arduino UNO via its barrel jack or USB port. Below is an example of Arduino code to blink an LED when powered by the 5V supply:
// Blink an LED connected to pin 13
// Ensure the Arduino is powered by the Plug Power Supply 5V
void setup() {
pinMode(13, OUTPUT); // Set pin 13 as an output
}
void loop() {
digitalWrite(13, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(13, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
No Output Voltage:
- Cause: The power supply may not be properly plugged into the AC outlet.
- Solution: Ensure the power supply is securely connected to the wall outlet and the circuit.
Device Not Powering On:
- Cause: The current demand of the device exceeds the power supply's rating.
- Solution: Use a power supply with a higher current rating.
Overheating:
- Cause: The power supply is overloaded or lacks proper ventilation.
- Solution: Reduce the load or ensure adequate airflow around the power supply.
Intermittent Power:
- Cause: Loose connections or damaged cables.
- Solution: Check all connections and replace damaged cables if necessary.
FAQs
Q: Can I use this power supply with a Raspberry Pi?
A: Yes, as long as the current rating meets the Raspberry Pi's requirements (typically 2.5A for newer models).
Q: Is this power supply safe for continuous operation?
A: Yes, the Plug Power Supply 5V is designed for continuous use, provided it is not overloaded and has proper ventilation.
Q: Can I use this power supply outdoors?
A: No, unless explicitly stated by the manufacturer, this power supply is intended for indoor use only.
By following these guidelines and best practices, you can ensure reliable and safe operation of the Plug Power Supply 5V in your electronic projects.
