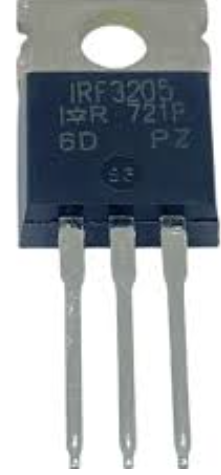

Image of MOSFET IRF3205
Cirkit Designer LogoDesign with MOSFET IRF3205 in Cirkit Designer

Introduction

The IRF3205 is an N-channel MOSFET designed for high-speed switching applications. It features low on-resistance and high current handling capabilities, making it ideal for power management, motor control, and other high-power applications. With its robust design, the IRF3205 is widely used in DC-DC converters, inverters, and automotive systems.

Explore Projects Built with MOSFET IRF3205

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Pixhawk-Controlled Solenoid Driver with Voltage Regulation
Image of solenoid control circuit: A project utilizing MOSFET IRF3205 in a practical application
This circuit uses an LM393 comparator to drive an IRFZ44N MOSFET based on the comparison between two input signals from a pixhawk 2.4.8 flight controller. The MOSFET switches a solenoid, with a diode for back EMF protection, and the system is powered by a Lipo battery with voltage regulation provided by a step-up boost converter and a step-down voltage regulator to ensure stable operation. A resistor is connected to the gate of the MOSFET for proper biasing.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Motor with IRFZ44N MOSFET
Image of circit design: A project utilizing MOSFET IRF3205 in a practical application
This circuit uses an ESP32 microcontroller to control a motor through an IRFZ44N MOSFET. The ESP32's GPIO pin D21 is connected through a 10-ohm resistor to the gate of the MOSFET, which switches the motor on and off. A 10k-ohm pull-down resistor is connected to the gate to ensure the MOSFET turns off when the GPIO pin is not driving it, and the motor is powered by a 12V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual Motor Control Circuit with LED Indicator and Adjustable Speed
Image of Simple Drone: A project utilizing MOSFET IRF3205 in a practical application
This circuit is designed to control the speed and direction of coreless motors using MOSFETs, with a potentiometer providing adjustable speed control for one direction. A rocker switch enables power control, and a red LED serves as a power indicator. Diodes are included for motor back-EMF protection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LM393-Based Voltage Comparator Circuit with MOSFET Control
Image of cut off charger: A project utilizing MOSFET IRF3205 in a practical application
This circuit is a power regulation and control system that uses an LM393 comparator to monitor voltage levels and control a MOSFET (IRFZ44N) for switching. It is powered by a 12V battery and a USB power source, and includes various resistors and capacitors for filtering and stabilization.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with MOSFET IRF3205

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of solenoid control circuit: A project utilizing MOSFET IRF3205 in a practical application
Pixhawk-Controlled Solenoid Driver with Voltage Regulation
This circuit uses an LM393 comparator to drive an IRFZ44N MOSFET based on the comparison between two input signals from a pixhawk 2.4.8 flight controller. The MOSFET switches a solenoid, with a diode for back EMF protection, and the system is powered by a Lipo battery with voltage regulation provided by a step-up boost converter and a step-down voltage regulator to ensure stable operation. A resistor is connected to the gate of the MOSFET for proper biasing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of circit design: A project utilizing MOSFET IRF3205 in a practical application
ESP32-Controlled Motor with IRFZ44N MOSFET
This circuit uses an ESP32 microcontroller to control a motor through an IRFZ44N MOSFET. The ESP32's GPIO pin D21 is connected through a 10-ohm resistor to the gate of the MOSFET, which switches the motor on and off. A 10k-ohm pull-down resistor is connected to the gate to ensure the MOSFET turns off when the GPIO pin is not driving it, and the motor is powered by a 12V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Simple Drone: A project utilizing MOSFET IRF3205 in a practical application
Dual Motor Control Circuit with LED Indicator and Adjustable Speed
This circuit is designed to control the speed and direction of coreless motors using MOSFETs, with a potentiometer providing adjustable speed control for one direction. A rocker switch enables power control, and a red LED serves as a power indicator. Diodes are included for motor back-EMF protection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of cut off charger: A project utilizing MOSFET IRF3205 in a practical application
Battery-Powered LM393-Based Voltage Comparator Circuit with MOSFET Control
This circuit is a power regulation and control system that uses an LM393 comparator to monitor voltage levels and control a MOSFET (IRFZ44N) for switching. It is powered by a 12V battery and a USB power source, and includes various resistors and capacitors for filtering and stabilization.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Motor control circuits
  • Power management in DC-DC converters
  • High-current switching applications
  • Battery-powered systems
  • Automotive electronics

Technical Specifications

The IRF3205 is a high-performance MOSFET with the following key specifications:

Parameter Value
Type N-Channel MOSFET
Maximum Drain-Source Voltage (VDS) 55V
Maximum Gate-Source Voltage (VGS) ±20V
Continuous Drain Current (ID) @ 25°C 110A
Pulsed Drain Current (IDM) 390A
Power Dissipation (PD) 200W
On-Resistance (RDS(on)) @ VGS = 10V 8 mΩ
Gate Threshold Voltage (VGS(th)) 2.0V - 4.0V
Operating Temperature Range -55°C to +175°C
Package Type TO-220

Pin Configuration

The IRF3205 comes in a TO-220 package with three pins. The pinout is as follows:

Pin Number Pin Name Description
1 Gate (G) Controls the MOSFET switching operation
2 Drain (D) Current flows from drain to source
3 Source (S) Connected to ground or load return path

Usage Instructions

How to Use the IRF3205 in a Circuit

  1. Gate Control: The gate of the IRF3205 is used to control the MOSFET's switching. Apply a voltage between 4.5V and 10V to the gate to turn it on. Ensure the gate voltage does not exceed ±20V to avoid damage.
  2. Drain-Source Connection: Connect the load between the drain and the positive supply voltage. The source is typically connected to ground or the return path of the circuit.
  3. Gate Resistor: Use a resistor (typically 10Ω to 100Ω) in series with the gate to limit inrush current and prevent oscillations.
  4. Flyback Diode: For inductive loads (e.g., motors), add a flyback diode across the load to protect the MOSFET from voltage spikes during switching.

Example Circuit with Arduino UNO

The IRF3205 can be controlled using an Arduino UNO for switching applications. Below is an example of how to use the IRF3205 to control a DC motor:

Circuit Connections

  • Gate (G): Connect to an Arduino digital pin (e.g., D9) through a 100Ω resistor.
  • Drain (D): Connect to one terminal of the motor.
  • Source (S): Connect to ground.
  • Motor: Connect the other terminal to the positive supply voltage.
  • Flyback Diode: Place a diode (e.g., 1N4007) across the motor terminals, with the cathode connected to the positive supply.

Arduino Code

// Example code to control a DC motor using the IRF3205 MOSFET
const int motorPin = 9; // Pin connected to the MOSFET gate

void setup() {
  pinMode(motorPin, OUTPUT); // Set the motor pin as an output
}

void loop() {
  digitalWrite(motorPin, HIGH); // Turn the motor ON
  delay(1000);                  // Keep the motor ON for 1 second
  digitalWrite(motorPin, LOW);  // Turn the motor OFF
  delay(1000);                  // Keep the motor OFF for 1 second
}

Important Considerations

  • Ensure the gate voltage is within the specified range (4.5V to 10V for full switching).
  • Use a heat sink with the IRF3205 for high-current applications to prevent overheating.
  • Avoid exceeding the maximum voltage and current ratings to prevent damage to the MOSFET.
  • For PWM (Pulse Width Modulation) control, ensure the switching frequency is within the MOSFET's capabilities.

Troubleshooting and FAQs

Common Issues and Solutions

  1. MOSFET Overheating

    • Cause: Insufficient heat dissipation or excessive current.
    • Solution: Use a heat sink or active cooling. Ensure the current is within the rated limit.
  2. MOSFET Not Switching

    • Cause: Insufficient gate voltage or incorrect wiring.
    • Solution: Verify the gate voltage is at least 4.5V. Check the circuit connections.
  3. High Power Loss

    • Cause: High on-resistance or improper gate drive.
    • Solution: Ensure the gate voltage is at least 10V for minimal RDS(on). Use a gate driver if necessary.
  4. Voltage Spikes Damaging the MOSFET

    • Cause: Inductive load without a flyback diode.
    • Solution: Add a flyback diode across the load to suppress voltage spikes.

FAQs

Q1: Can the IRF3205 be used for low-voltage applications?
A1: Yes, the IRF3205 can handle low-voltage applications, but ensure the gate voltage is sufficient for full switching.

Q2: Is the IRF3205 suitable for high-frequency switching?
A2: The IRF3205 can handle moderate switching frequencies. For very high frequencies, consider using a MOSFET with lower gate charge.

Q3: Can I drive the IRF3205 directly from a microcontroller?
A3: Yes, but ensure the microcontroller can provide a gate voltage of at least 4.5V. For optimal performance, use a gate driver circuit.

Q4: What is the maximum current the IRF3205 can handle?
A4: The IRF3205 can handle up to 110A continuously at 25°C, but proper heat dissipation is required.
