How to Use LCD 16X2: Examples, Pinouts, and Specs

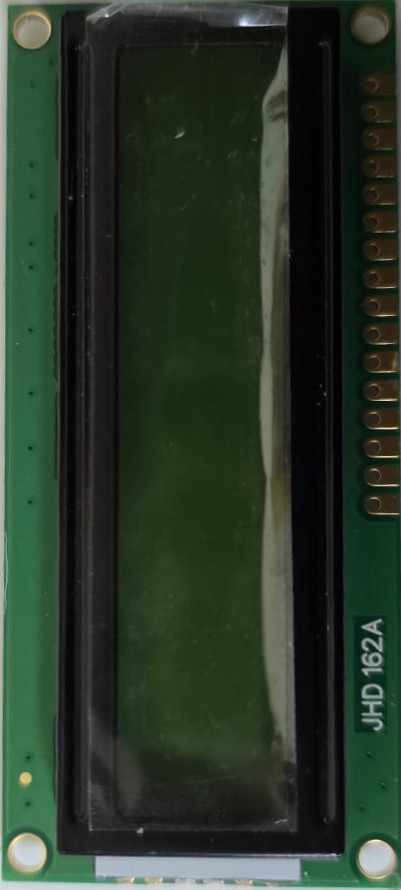

The LCD 16x2 is a Liquid Crystal Display module capable of displaying 16 characters per line across 2 lines. It is widely used in embedded systems and microcontroller-based projects for displaying text, numbers, and simple symbols. This module is popular due to its low power consumption, ease of use, and compatibility with various microcontrollers, including Arduino, Raspberry Pi, and others.

• Displaying sensor data in IoT projects
• User interfaces for embedded systems
• Digital clocks and timers
• Menu systems for devices
• Educational and prototyping purposes

The LCD 16x2 module operates using the Hitachi HD44780 controller or a compatible chipset, which allows for easy interfacing with microcontrollers.

The LCD 16x2 module typically has 16 pins. Below is the pinout and description:

1. Power the LCD: Connect the VSS pin to ground and the VDD pin to a 5V power supply.
2. Adjust Contrast: Connect the VO pin to the middle terminal of a 10kΩ potentiometer. Connect the other two terminals of the potentiometer to VDD and ground.
3. Connect Control Pins:
   • RS: Connect to a digital pin on the microcontroller.
   • RW: Connect to ground (for write-only mode).
   • E: Connect to another digital pin on the microcontroller.
4. Connect Data Pins:
   • For 4-bit mode: Use D4 to D7 and leave D0 to D3 unconnected.
   • For 8-bit mode: Use all data pins (D0 to D7).
5. Backlight: Connect pin 15 (A) to 5V through a 220Ω resistor and pin 16 (K) to ground.

• Use a current-limiting resistor for the backlight to prevent damage.
• Ensure proper grounding to avoid noise or flickering issues.
• Use 4-bit mode for simpler wiring and fewer microcontroller pins.
• Initialize the LCD properly in your code before sending data.

Below is an example of how to interface the LCD 16x2 with an Arduino UNO in 4-bit mode using the LiquidCrystal library:

#include <LiquidCrystal.h>

// Initialize the library with the pins connected to the LCD
// RS, E, D4, D5, D6, D7
LiquidCrystal lcd(7, 8, 9, 10, 11, 12);

void setup() {
  // Set up the LCD's number of columns and rows
  lcd.begin(16, 2);

  // Print a message to the LCD
  lcd.print("Hello, World!");
}

void loop() {
  // Move the cursor to the second line
  lcd.setCursor(0, 1);

  // Print a dynamic message
  lcd.print("Count: ");
  lcd.print(millis() / 1000); // Display elapsed time in seconds
}

• Connect the pins in the code (7, 8, 9, 10, 11, 12) to the corresponding pins on the LCD.
• Install the LiquidCrystal library if not already included in your Arduino IDE.

1. No Display on the LCD:

   • Check the power connections (VSS, VDD).
   • Adjust the contrast using the potentiometer connected to VO.
   • Ensure the backlight is connected properly.

2. Flickering or Garbled Text:

   • Verify proper grounding of the circuit.
   • Check for loose connections or poor soldering.
   • Ensure the LCD is initialized correctly in the code.

3. Backlight Not Working:

   • Check the resistor value for the backlight (use ~220Ω).
   • Verify the polarity of the backlight pins (A and K).

4. Text Not Displaying Properly:

   • Ensure the RS, RW, and E pins are connected correctly.
   • Verify the data pins (D4 to D7) are properly wired.
   • Double-check the code for correct initialization and commands.

Q: Can I use the LCD 16x2 with a 3.3V microcontroller?
A: Yes, but you will need a level shifter or resistor divider for the control and data pins. The backlight may also require a lower voltage.

Q: How do I display custom characters?
A: Use the createChar() function in the LiquidCrystal library to define custom 5x8 pixel characters.

Q: Can I use the LCD without a potentiometer for contrast?
A: Yes, you can use a fixed resistor (e.g., 1kΩ to 10kΩ) between VO and ground, but a potentiometer provides better control.

Q: What is the maximum viewing angle of the LCD?
A: The typical viewing angle is around 45° to 60°, depending on the manufacturer.

This concludes the documentation for the LCD 16x2 module.
