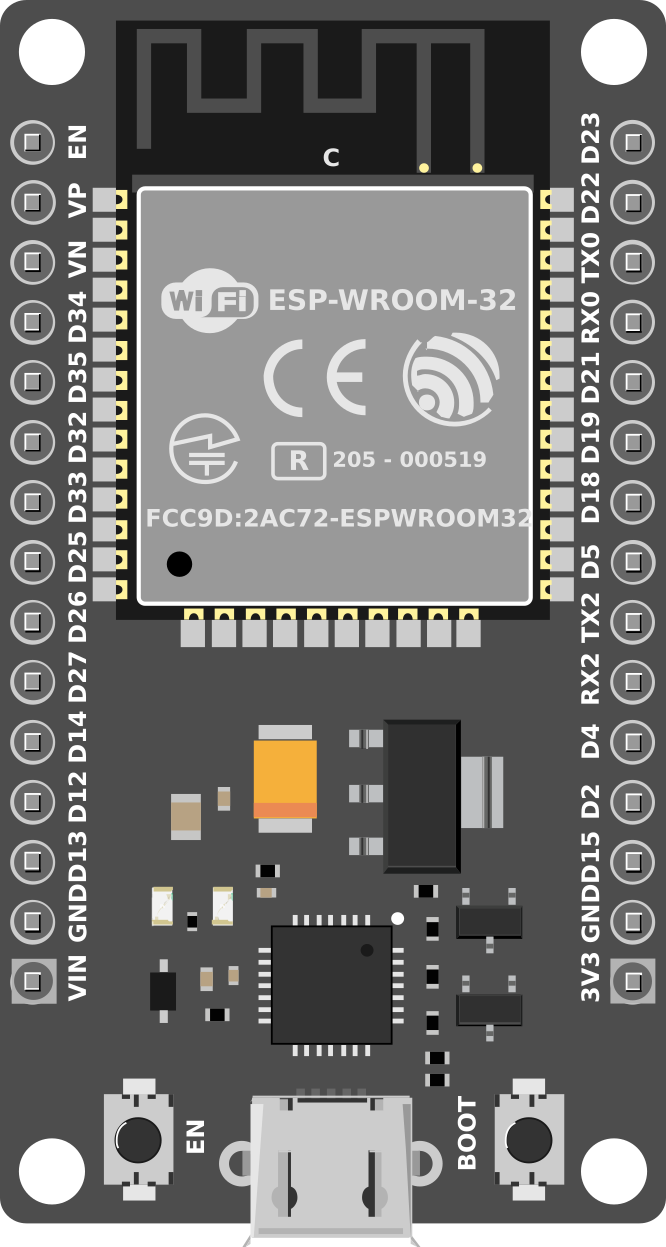

Image of esp 32 dev kit
Cirkit Designer LogoDesign with esp 32 dev kit in Cirkit Designer

Introduction

The ESP32 Dev Kit is a versatile development board built around the ESP32 chip, which integrates Wi-Fi and Bluetooth capabilities. This board is widely used in Internet of Things (IoT) projects, enabling developers to create applications that require wireless communication. Its compact design, powerful processing capabilities, and extensive GPIO options make it ideal for a variety of use cases, including smart home devices, wearable electronics, and industrial automation.

Explore Projects Built with esp 32 dev kit

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of mark: A project utilizing esp 32 dev kit in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Agriculture System with LoRa Communication
Image of Soil Monitoring Device: A project utilizing esp 32 dev kit in a practical application
This circuit features an ESP32 Devkit V1 microcontroller as the central processing unit, interfacing with various sensors including a PH Meter, an NPK Soil Sensor, and a Soil Moisture Sensor for environmental data collection. It also includes an EBYTE LoRa E220 module for wireless communication. Power management is handled by a Step Up Boost Power Converter, which is connected to a 12V Battery, stepping up the voltage to power the ESP32 and sensors, with common ground connections throughout the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Smart Relay System with Motion Detection and Manual Override
Image of home automation: A project utilizing esp 32 dev kit in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a 4-channel 5V relay module, multiple pushbuttons, a PIR motion sensor, and a green LED. The ESP32 controls the relay channels, which in turn can switch AC-powered devices (bulbs) connected via sockets. The pushbuttons and PIR sensor provide input signals to the ESP32, which can be programmed to respond to these inputs by toggling the state of the relays and the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of Schematic: A project utilizing esp 32 dev kit in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and devices, including a DHT11 temperature and humidity sensor, an MQ-2 gas sensor, and a WS2812 RGB LED strip. The ESP32 controls the LED strip and processes sensor readings, while a SIM900A module provides cellular communication capabilities. Power management is handled by a UPS module fed by a 12V battery charged via a solar panel and charge controller, with voltage regulation provided by step-down converters. Additionally, a piezo buzzer is included for audible alerts, and the system's safety is ensured by a circuit breaker connected to a switching power supply for AC to DC conversion.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with esp 32 dev kit

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mark: A project utilizing esp 32 dev kit in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Soil Monitoring Device: A project utilizing esp 32 dev kit in a practical application
ESP32-Based Smart Agriculture System with LoRa Communication
This circuit features an ESP32 Devkit V1 microcontroller as the central processing unit, interfacing with various sensors including a PH Meter, an NPK Soil Sensor, and a Soil Moisture Sensor for environmental data collection. It also includes an EBYTE LoRa E220 module for wireless communication. Power management is handled by a Step Up Boost Power Converter, which is connected to a 12V Battery, stepping up the voltage to power the ESP32 and sensors, with common ground connections throughout the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of home automation: A project utilizing esp 32 dev kit in a practical application
ESP32-Controlled Smart Relay System with Motion Detection and Manual Override
This circuit features an ESP32 Devkit V1 microcontroller connected to a 4-channel 5V relay module, multiple pushbuttons, a PIR motion sensor, and a green LED. The ESP32 controls the relay channels, which in turn can switch AC-powered devices (bulbs) connected via sockets. The pushbuttons and PIR sensor provide input signals to the ESP32, which can be programmed to respond to these inputs by toggling the state of the relays and the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Schematic: A project utilizing esp 32 dev kit in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and devices, including a DHT11 temperature and humidity sensor, an MQ-2 gas sensor, and a WS2812 RGB LED strip. The ESP32 controls the LED strip and processes sensor readings, while a SIM900A module provides cellular communication capabilities. Power management is handled by a UPS module fed by a 12V battery charged via a solar panel and charge controller, with voltage regulation provided by step-down converters. Additionally, a piezo buzzer is included for audible alerts, and the system's safety is ensured by a circuit breaker connected to a switching power supply for AC to DC conversion.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Robotics and automation
  • Prototyping for Bluetooth and Wi-Fi-enabled devices

Technical Specifications

Key Technical Details

Specification Value
Microcontroller ESP32 Dual-Core Xtensa LX6
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 (BLE)
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB or external power supply)
GPIO Pins 30-38 (varies by board version)
ADC Channels Up to 18
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power modes available
Dimensions ~54 mm x 27 mm

Pin Configuration and Descriptions

The ESP32 Dev Kit features multiple GPIO pins, which can be configured for various functions. Below is a general pinout description:

Pin Name Functionality
VIN Input voltage (5V) for powering the board
GND Ground
3V3 3.3V output for powering external components
GPIO0 Used for boot mode selection (must be LOW during flashing)
GPIO2 General-purpose I/O, often used for onboard LED
GPIO12-39 General-purpose I/O pins with ADC, PWM, I2C, SPI, or UART functionality
EN Reset pin (active HIGH)
TX0/RX0 UART0 communication pins (default serial interface)
ADC1/ADC2 Analog-to-digital converter channels
DAC1/DAC2 Digital-to-analog converter channels

Note: The exact pinout may vary depending on the specific ESP32 Dev Kit model. Always refer to the datasheet for your board.

Usage Instructions

How to Use the ESP32 Dev Kit in a Circuit

  1. Powering the Board:

    • Connect the ESP32 Dev Kit to your computer via a micro-USB cable for power and programming.
    • Alternatively, supply 5V to the VIN pin and connect GND to the ground of your power source.
  2. Programming the Board:

    • Install the Arduino IDE and add the ESP32 board package via the Board Manager.
    • Select the appropriate ESP32 Dev Kit model from the Tools > Board menu.
    • Connect the board to your computer and select the correct COM port.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure that the voltage levels of connected devices are compatible with the ESP32 (3.3V logic).
  4. Uploading Code:

    • Write your code in the Arduino IDE or another supported environment.
    • Press the "Upload" button to flash the code to the ESP32.
    • If the upload fails, hold down the "BOOT" button on the board while uploading.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to GPIO2:

// Define the GPIO pin where the LED is connected
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

Important Considerations

  • Voltage Levels: The ESP32 operates at 3.3V logic. Avoid connecting 5V signals directly to GPIO pins.
  • Boot Mode: Ensure GPIO0 is pulled LOW during flashing to enter boot mode.
  • Power Supply: Use a stable power source to avoid unexpected resets or malfunctions.
  • Wi-Fi Interference: Place the board away from sources of interference for optimal wireless performance.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The ESP32 is not detected by the computer.
    Solution:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver for your operating system.
  2. Problem: Code upload fails with a timeout error.
    Solution:

    • Hold down the "BOOT" button while uploading the code.
    • Check that the correct COM port and board model are selected in the Arduino IDE.
  3. Problem: The ESP32 keeps resetting.
    Solution:

    • Verify that the power supply is stable and sufficient.
    • Check for short circuits or excessive current draw from connected peripherals.
  4. Problem: Wi-Fi connection is unstable.
    Solution:

    • Ensure the ESP32 is within range of the Wi-Fi router.
    • Reduce interference by moving the board away from other electronic devices.

FAQs

Q: Can I use the ESP32 Dev Kit with a 5V sensor?
A: Yes, but you will need a level shifter to convert the 5V signal to 3.3V for compatibility with the ESP32 GPIO pins.

Q: How do I reset the ESP32?
A: Press the "EN" button on the board to reset the ESP32.

Q: Can the ESP32 Dev Kit run on battery power?
A: Yes, you can connect a 3.7V LiPo battery to the appropriate pins or use a battery shield for extended portability.

Q: Is the ESP32 compatible with Arduino libraries?
A: Yes, the ESP32 supports many Arduino libraries, but some may require modifications for compatibility.

By following this documentation, you can effectively use the ESP32 Dev Kit for your IoT and wireless communication projects.
