How to Use MCB 1 Phase schneider: Examples, Pinouts, and Specs
Design with MCB 1 Phase schneider in Cirkit DesignerIntroduction

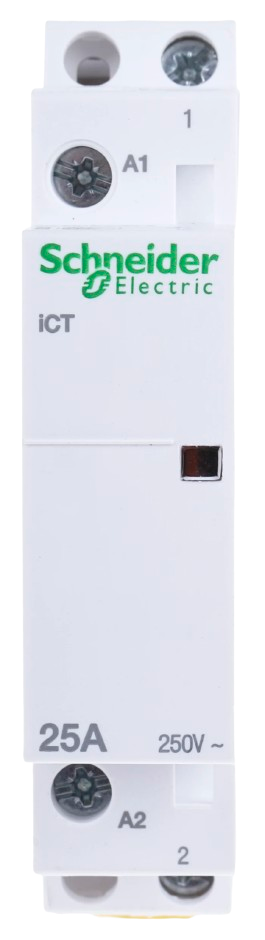

The MCB 1 Phase Schneider is a Miniature Circuit Breaker (MCB) designed for single-phase electrical circuits. Manufactured by Schneider Electric, this component provides automatic protection by disconnecting the circuit in the event of an overload or short circuit. It ensures the safety of electrical installations and prevents damage to connected devices.
Explore Projects Built with MCB 1 Phase schneider
Flush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Open Project in Cirkit DesignerLED Indicator System with Power Stabilizer and Measurement Meters
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Open Project in Cirkit DesignerIndustrial Power Distribution and Safety Control System
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Open Project in Cirkit DesignerSolar-Powered Home Energy System with Automatic Transfer Switch and Battery Backup
This circuit is a solar power system with an automatic transfer switch (ATS) that manages power from both a solar panel and an AC supply. The solar panel charges a battery through a solar charge controller, and the power inverter converts the stored DC power to AC, which is then distributed through an MCB to a socket. The ATS ensures seamless switching between solar and AC power sources.
Open Project in Cirkit DesignerExplore Projects Built with MCB 1 Phase schneider
Flush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Open Project in Cirkit DesignerLED Indicator System with Power Stabilizer and Measurement Meters
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Open Project in Cirkit DesignerIndustrial Power Distribution and Safety Control System
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Open Project in Cirkit DesignerSolar-Powered Home Energy System with Automatic Transfer Switch and Battery Backup
This circuit is a solar power system with an automatic transfer switch (ATS) that manages power from both a solar panel and an AC supply. The solar panel charges a battery through a solar charge controller, and the power inverter converts the stored DC power to AC, which is then distributed through an MCB to a socket. The ATS ensures seamless switching between solar and AC power sources.
Open Project in Cirkit DesignerCommon Applications and Use Cases
- Residential and commercial electrical distribution systems
- Protection of lighting circuits, power outlets, and appliances
- Industrial control panels and machinery
- Renewable energy systems (e.g., solar inverters)
- Backup power systems and UPS installations
Technical Specifications
Key Technical Details
| Parameter | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Part ID | MCB 1 Phase Schneider |
| Rated Voltage | 230/240 V AC |
| Rated Current | 6 A, 10 A, 16 A, 20 A, 32 A, 40 A |
| Breaking Capacity | 6 kA |
| Number of Poles | 1 (Single Phase) |
| Tripping Curve | B, C, or D (depending on model) |
| Frequency | 50/60 Hz |
| Mounting Type | DIN Rail |
| Operating Temperature | -5°C to +55°C |
| Standards Compliance | IEC 60898-1, IEC 60947-2 |
Pin Configuration and Descriptions
The MCB 1 Phase Schneider does not have traditional pins but instead features screw terminals for electrical connections. Below is a description of the terminal configuration:
| Terminal Name | Description |
|---|---|
| Line (Input) | Connects to the incoming live wire from the power source. |
| Load (Output) | Connects to the outgoing live wire to the load or circuit. |
| Neutral | Not applicable (single-phase MCBs do not switch the neutral). |
Usage Instructions
How to Use the MCB in a Circuit
Mounting the MCB:
- Install the MCB on a standard DIN rail in the distribution box or panel.
- Ensure the MCB is securely locked into place.
Wiring the MCB:
- Connect the incoming live wire (line) to the input terminal of the MCB.
- Connect the outgoing live wire (load) to the output terminal of the MCB.
- Tighten the screws securely to ensure proper electrical contact.
Testing the MCB:
- After installation, switch on the MCB and test its functionality by simulating an overload or short circuit (if safe to do so).
- Verify that the MCB trips and disconnects the circuit as expected.
Resetting the MCB:
- After a trip, identify and resolve the cause of the fault.
- Flip the MCB switch to the "OFF" position, then back to the "ON" position to reset it.
Important Considerations and Best Practices
- Always ensure the MCB's rated current matches the load requirements of the circuit.
- Do not exceed the MCB's breaking capacity (6 kA) to avoid damage or failure.
- Use appropriate wire sizes for the connected load to prevent overheating.
- Regularly inspect the MCB for signs of wear, damage, or loose connections.
- Ensure compliance with local electrical codes and standards during installation.
Arduino UNO Integration
While MCBs are not directly interfaced with microcontrollers like the Arduino UNO, they can be used in circuits that power Arduino-based systems. For example, an MCB can protect the power supply line feeding an Arduino project.
Here is an example of how an MCB might be used in a circuit with an Arduino UNO:
Power Source (230V AC) --> MCB 1 Phase Schneider --> Step-Down Transformer
--> DC Power Supply --> Arduino UNO
Troubleshooting and FAQs
Common Issues and Solutions
| Issue | Possible Cause | Solution |
|---|---|---|
| MCB trips frequently | Overload or short circuit in the circuit | Check the connected load and wiring for faults. |
| MCB does not trip during a fault | Faulty MCB or incorrect installation | Verify wiring and replace the MCB if necessary. |
| MCB cannot be reset | Persistent fault in the circuit | Inspect and resolve the fault before resetting. |
| Loose connections at terminals | Improper tightening of screws | Re-tighten the terminal screws securely. |
FAQs
Can I use the MCB 1 Phase Schneider for DC circuits?
No, this MCB is designed for AC circuits only. For DC applications, use a DC-rated circuit breaker.What is the difference between B, C, and D tripping curves?
- B Curve: Trips at 3-5 times the rated current, suitable for residential circuits.
- C Curve: Trips at 5-10 times the rated current, ideal for commercial and industrial loads.
- D Curve: Trips at 10-20 times the rated current, used for high inrush current devices like motors.
How do I select the correct MCB rating for my circuit?
Calculate the total load current of the circuit and choose an MCB with a slightly higher rated current. Ensure the MCB's breaking capacity matches the fault current of the system.Can I install the MCB horizontally?
Yes, the MCB 1 Phase Schneider can be installed in both vertical and horizontal orientations, but ensure proper alignment for reliable operation.
By following this documentation, users can safely and effectively utilize the MCB 1 Phase Schneider in their electrical systems.
