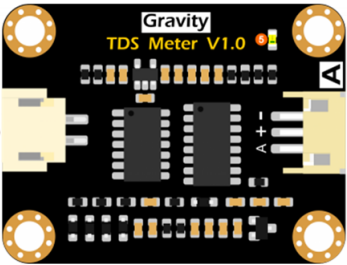

How to Use TDS: Examples, Pinouts, and Specs

• A Total Dissolved Solids (TDS) meter measures the concentration of dissolved solids in water, providing an indication of water quality and purity. It is widely used in water filtration systems, aquariums, hydroponics, and environmental monitoring.
• Common applications include testing drinking water quality, monitoring water in aquaculture, and ensuring proper nutrient levels in hydroponic systems.

• Measurement Range: 0 - 1000 ppm (parts per million) or higher, depending on the model
• Accuracy: ±2% of the reading
• Operating Voltage: 3.3V - 5V DC
• Output Signal: Analog voltage (proportional to TDS value)
• Temperature Compensation: Built-in (for some models)
• Operating Temperature: 0°C - 60°C

1. Connect the TDS Meter to a Microcontroller:

   • Connect the VCC pin to the 5V or 3.3V power supply of your microcontroller.
   • Connect the GND pin to the ground of your microcontroller.
   • Connect the AOUT pin to an analog input pin on your microcontroller (e.g., A0 on an Arduino UNO).

2. Place the TDS Probe in Water:

   • Submerge the TDS probe in the water sample. Ensure the probe is fully immersed but avoid submerging the connector.

3. Read the Analog Signal:

   • The analog output voltage from the AOUT pin corresponds to the TDS value. Use the microcontroller's ADC (Analog-to-Digital Converter) to read this voltage and calculate the TDS value.

• Calibration: Calibrate the TDS meter using a standard solution to ensure accurate readings.
• Temperature Compensation: If your TDS meter does not have built-in temperature compensation, account for temperature variations manually in your calculations.
• Avoid Contamination: Clean the probe after each use to prevent contamination and ensure accurate readings.
• Power Supply: Use a stable power supply to avoid fluctuations in the analog output signal.

// Example code to read TDS value using an Arduino UNO
// Connect the TDS meter's AOUT pin to A0 on the Arduino UNO

const int TDS_PIN = A0; // Analog pin connected to TDS meter
const float VREF = 5.0; // Reference voltage of Arduino UNO (5V)
const int ADC_RESOLUTION = 1024; // 10-bit ADC resolution

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int analogValue = analogRead(TDS_PIN); // Read analog value from TDS meter
  float voltage = (analogValue / float(ADC_RESOLUTION)) * VREF;
  // Convert ADC value to voltage

  float tdsValue = (voltage / VREF) * 1000;
  // Convert voltage to TDS value (assuming 0-1000 ppm range)

  Serial.print("TDS Value: ");
  Serial.print(tdsValue);
  Serial.println(" ppm"); // Print TDS value in ppm

  delay(1000); // Wait for 1 second before next reading
}

1. Inaccurate Readings:

   • Cause: The TDS meter is not calibrated.
   • Solution: Calibrate the meter using a standard TDS solution.

2. Fluctuating Output:

   • Cause: Unstable power supply or electrical noise.
   • Solution: Use a regulated power supply and ensure proper grounding.

3. No Output Signal:

   • Cause: Incorrect wiring or damaged probe.
   • Solution: Verify connections and check the probe for physical damage.

4. Temperature-Related Errors:

   • Cause: Water temperature affects TDS readings.
   • Solution: Use a TDS meter with built-in temperature compensation or manually adjust for temperature.

• Q: Can the TDS meter be used with liquids other than water?
  A: TDS meters are designed for water-based solutions. Using them with other liquids may damage the probe or produce inaccurate readings.

• Q: How often should I calibrate the TDS meter?
  A: Calibration frequency depends on usage. For critical applications, calibrate before each use. For general use, calibrate monthly.

• Q: What is the lifespan of a TDS probe?
  A: The lifespan varies based on usage and maintenance. Proper cleaning and storage can extend the probe's life to several years.

• Q: Can I use the TDS meter in hot water?
  A: Most TDS meters operate within 0°C - 60°C. Avoid using the probe in water outside this range to prevent damage.
