How to Use LCD 20X4: Examples, Pinouts, and Specs

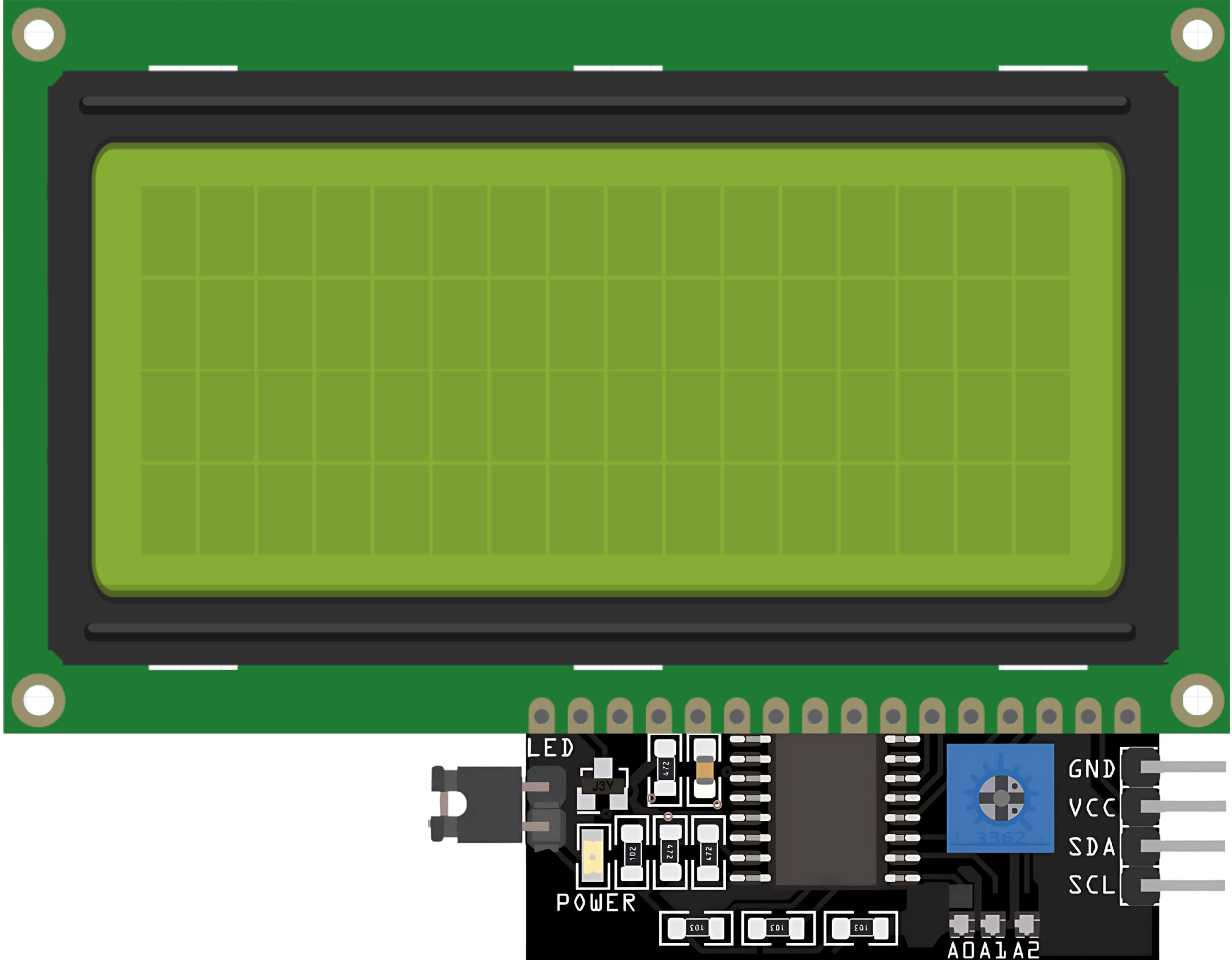

Image of LCD 20X4
Cirkit Designer LogoDesign with LCD 20X4 in Cirkit Designer

Introduction

The LCD 20x4 is a Liquid Crystal Display module capable of displaying 20 characters per line across 4 lines. It is widely used in embedded systems and microcontroller projects for presenting textual information such as sensor readings, system status, or user instructions. This display is based on the HD44780 controller, which is compatible with most microcontrollers, including Arduino, Raspberry Pi, and others.

Explore Projects Built with LCD 20X4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO I2C 20x4 LCD Display Project
Image of sample: A project utilizing LCD 20X4 in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a 20x4 I2C LCD display. The Arduino provides power and communicates with the LCD via I2C protocol to display static text messages across its four rows.
Cirkit Designer LogoOpen Project in Cirkit Designer
I2C LCD Display Module with Power Supply Interface
Image of J8 +j22 lcd closeup: A project utilizing LCD 20X4 in a practical application
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and I2C LCD Display Power Supply Project
Image of lcd display: A project utilizing LCD 20X4 in a practical application
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled I2C LCD Display
Image of LCD_I2C: A project utilizing LCD 20X4 in a practical application
This circuit connects an ESP32 microcontroller to a 20x4 LCD display with an I2C interface. The ESP32 powers the LCD and communicates with it using the I2C protocol, with D21 and D22 pins serving as the data (SDA) and clock (SCL) lines, respectively. The circuit is designed to display information or user interface elements controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LCD 20X4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of sample: A project utilizing LCD 20X4 in a practical application
Arduino UNO I2C 20x4 LCD Display Project
This circuit consists of an Arduino UNO microcontroller connected to a 20x4 I2C LCD display. The Arduino provides power and communicates with the LCD via I2C protocol to display static text messages across its four rows.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of J8 +j22 lcd closeup: A project utilizing LCD 20X4 in a practical application
I2C LCD Display Module with Power Supply Interface
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lcd display: A project utilizing LCD 20X4 in a practical application
Arduino Nano and I2C LCD Display Power Supply Project
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LCD_I2C: A project utilizing LCD 20X4 in a practical application
ESP32-Controlled I2C LCD Display
This circuit connects an ESP32 microcontroller to a 20x4 LCD display with an I2C interface. The ESP32 powers the LCD and communicates with it using the I2C protocol, with D21 and D22 pins serving as the data (SDA) and clock (SCL) lines, respectively. The circuit is designed to display information or user interface elements controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Displaying sensor data in IoT projects
  • User interfaces for embedded systems
  • Menu systems for devices
  • Real-time status updates in industrial applications

Technical Specifications

Below are the key technical details of the LCD 20x4 module:

Parameter Value
Display Type 20x4 Character LCD
Controller HD44780 or compatible
Operating Voltage 4.7V to 5.3V
Backlight Voltage 4.2V to 4.6V
Current Consumption 1-2 mA (without backlight), ~120 mA (with backlight)
Character Size 5x8 dot matrix
Interface Type Parallel (4-bit or 8-bit mode)
Operating Temperature -20°C to +70°C

Pin Configuration

The LCD 20x4 module typically has 16 pins. Below is the pinout and description:

Pin Name Description
1 VSS Ground (0V)
2 VDD Power supply (4.7V to 5.3V)
3 VO Contrast adjustment (connect to a potentiometer)
4 RS Register Select (0: Command, 1: Data)
5 RW Read/Write (0: Write, 1: Read)
6 E Enable signal (triggers data read/write)
7-14 D0-D7 Data pins (D0-D3 used in 8-bit mode, D4-D7 used in 4-bit mode)
15 A (LED+) Backlight anode (connect to +5V via a resistor)
16 K (LED-) Backlight cathode (connect to ground)

Usage Instructions

Connecting the LCD 20x4 to an Arduino UNO

The LCD 20x4 can be connected to an Arduino UNO using the 4-bit mode to save pins. Below is a typical wiring configuration:

LCD Pin Arduino Pin
VSS GND
VDD 5V
VO Potentiometer (middle pin)
RS Digital Pin 12
RW GND
E Digital Pin 11
D4 Digital Pin 5
D5 Digital Pin 4
D6 Digital Pin 3
D7 Digital Pin 2
A (LED+) 5V (via 220Ω resistor)
K (LED-) GND

Arduino Code Example

Below is an example code to display text on the LCD 20x4 using the Arduino LiquidCrystal library:

#include <LiquidCrystal.h>

// Initialize the library with the pins connected to the LCD
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

void setup() {
  // Set up the LCD's number of columns and rows
  lcd.begin(20, 4);

  // Print a message to the LCD
  lcd.setCursor(0, 0); // Set cursor to column 0, row 0
  lcd.print("Hello, World!");

  lcd.setCursor(0, 1); // Set cursor to column 0, row 1
  lcd.print("LCD 20x4 Demo");

  lcd.setCursor(0, 2); // Set cursor to column 0, row 2
  lcd.print("Line 3 Example");

  lcd.setCursor(0, 3); // Set cursor to column 0, row 3
  lcd.print("Line 4 Example");
}

void loop() {
  // Nothing to do here
}

Important Considerations

  1. Contrast Adjustment: Use a 10kΩ potentiometer to adjust the contrast by connecting its middle pin to VO (Pin 3).
  2. Backlight Resistor: Use a 220Ω resistor in series with the backlight (Pin 15) to limit current and prevent damage.
  3. 4-bit vs. 8-bit Mode: The 4-bit mode is recommended for saving microcontroller pins, as it only uses D4-D7.
  4. Power Supply: Ensure a stable 5V power supply to avoid flickering or malfunction.

Troubleshooting and FAQs

Common Issues

  1. No Display on LCD

    • Solution: Check the power connections (VSS to GND, VDD to 5V).
    • Solution: Adjust the contrast using the potentiometer connected to VO.
  2. Flickering or Garbled Text

    • Solution: Ensure proper grounding and stable power supply.
    • Solution: Verify the connections to the data pins (D4-D7) and control pins (RS, RW, E).
  3. Backlight Not Working

    • Solution: Check the backlight connections (Pin 15 to 5V via a resistor, Pin 16 to GND).
    • Solution: Ensure the resistor value is appropriate (220Ω recommended).
  4. Text Not Displaying Correctly

    • Solution: Verify the code and ensure the lcd.begin(20, 4) function is called in the setup.
    • Solution: Check the wiring for loose or incorrect connections.

FAQs

  1. Can I use the LCD 20x4 with a 3.3V microcontroller?

    • Yes, but you will need a level shifter or voltage divider for the data and control pins. The backlight may also require a lower voltage.
  2. How do I clear the display?

    • Use the lcd.clear() function in your code to clear the screen.
  3. Can I use the LCD without a potentiometer?

    • Yes, but the contrast may not be adjustable. You can connect VO (Pin 3) to GND for maximum contrast.
  4. What is the maximum cable length for connecting the LCD?

    • Keep the cable length as short as possible (preferably under 30cm) to avoid signal degradation.

By following this documentation, you can effectively integrate the LCD 20x4 into your projects and troubleshoot common issues with ease.
