Introduction

The 2N2222 is a widely used NPN bipolar junction transistor (BJT) designed for low to medium power switching and amplification applications. Known for its reliability and versatility, the 2N2222 is commonly used in hobbyist projects, educational circuits, and professional designs. Its ability to handle moderate current and voltage levels makes it suitable for a variety of applications, including signal amplification, motor control, and switching operations.

Explore Projects Built with 2N2222

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Tesla Coil with 2N2222 Transistor Control
Image of tesla coil: A project utilizing 2N2222 in a practical application
This circuit is a basic Tesla coil driver powered by a Li-ion battery. It uses a 2n2222 transistor to switch the primary coil of the Tesla coil, with a resistor and switch controlling the base of the transistor. The circuit generates high voltage in the secondary coil of the Tesla coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Transistor-Based Signal Modulation Circuit with AC/DC Power Integration
Image of PPPPP: A project utilizing 2N2222 in a practical application
This circuit appears to be a transistor-based switching or amplification system powered by a 12v battery, with an AC supply possibly for signal input or additional power. It includes filtering through ceramic capacitors and uses resistors for biasing the transistors. The presence of both PNP and NPN transistors suggests a push-pull configuration or a form of signal modulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
NPN Transistor-Based Voltage Measurement Circuit with Dual Power Supplies
Image of lab9: A project utilizing 2N2222 in a practical application
This circuit is a simple NPN transistor switch configuration powered by two power supplies. It includes resistors to limit current and multimeters to measure voltage and current at various points in the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
NPN Transistor-Based Signal Amplifier with Power Supply and Capacitors
Image of lab10: A project utilizing 2N2222 in a practical application
This circuit appears to be a basic transistor amplifier with a power supply, resistors, and capacitors. The NPN transistor is configured with various resistors and capacitors to control the biasing and signal amplification, while the AC supply and electrolytic capacitors are used for coupling and filtering purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 2N2222

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of tesla coil: A project utilizing 2N2222 in a practical application
Battery-Powered Tesla Coil with 2N2222 Transistor Control
This circuit is a basic Tesla coil driver powered by a Li-ion battery. It uses a 2n2222 transistor to switch the primary coil of the Tesla coil, with a resistor and switch controlling the base of the transistor. The circuit generates high voltage in the secondary coil of the Tesla coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PPPPP: A project utilizing 2N2222 in a practical application
Transistor-Based Signal Modulation Circuit with AC/DC Power Integration
This circuit appears to be a transistor-based switching or amplification system powered by a 12v battery, with an AC supply possibly for signal input or additional power. It includes filtering through ceramic capacitors and uses resistors for biasing the transistors. The presence of both PNP and NPN transistors suggests a push-pull configuration or a form of signal modulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lab9: A project utilizing 2N2222 in a practical application
NPN Transistor-Based Voltage Measurement Circuit with Dual Power Supplies
This circuit is a simple NPN transistor switch configuration powered by two power supplies. It includes resistors to limit current and multimeters to measure voltage and current at various points in the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lab10: A project utilizing 2N2222 in a practical application
NPN Transistor-Based Signal Amplifier with Power Supply and Capacitors
This circuit appears to be a basic transistor amplifier with a power supply, resistors, and capacitors. The NPN transistor is configured with various resistors and capacitors to control the biasing and signal amplification, while the AC supply and electrolytic capacitors are used for coupling and filtering purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Signal amplification in audio and RF circuits
  • Low-power motor drivers
  • LED and relay switching
  • Oscillator circuits
  • General-purpose switching in digital and analog circuits

Technical Specifications

The following table outlines the key technical specifications of the 2N2222 transistor:

Parameter Value
Transistor Type NPN
Maximum Collector-Emitter Voltage (VCEO) 40V
Maximum Collector-Base Voltage (VCBO) 75V
Maximum Emitter-Base Voltage (VEBO) 6V
Maximum Collector Current (IC) 800mA
Maximum Power Dissipation (PD) 500mW
DC Current Gain (hFE) 100 to 300
Transition Frequency (fT) 250 MHz
Package Type TO-18 (metal can) or TO-92 (plastic)

Pin Configuration

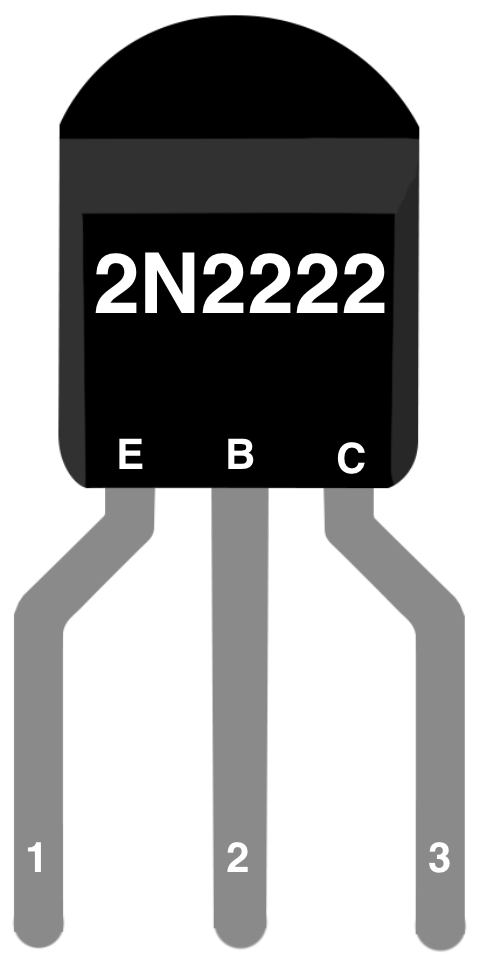

The 2N2222 is typically available in the TO-92 package. The pinout for this package is as follows:

Pin Number Pin Name Description
1 Emitter Connected to ground or negative terminal
2 Base Controls the transistor's operation
3 Collector Connected to the load or positive terminal

Note: Ensure the flat side of the TO-92 package is facing you to correctly identify the pins.

Usage Instructions

Using the 2N2222 in a Circuit

The 2N2222 transistor operates as a switch or amplifier depending on the circuit configuration. Below are the steps to use it effectively:

  1. Determine the Operating Mode:

    • Switching Mode: Use the transistor to control a load (e.g., LED, motor, or relay) by applying a small current to the base.
    • Amplification Mode: Use the transistor to amplify weak signals by biasing it in the active region.
  2. Base Resistor Selection:

    • To prevent damage to the transistor, calculate the base resistor value using the formula: [ R_b = \frac{V_{in} - V_{BE}}{I_B} ] where ( V_{in} ) is the input voltage, ( V_{BE} ) is typically 0.7V, and ( I_B ) is the base current (approximately ( I_C / h_{FE} )).
  3. Connect the Circuit:

    • Connect the emitter to ground (or the negative terminal of the power supply).
    • Connect the collector to the load and then to the positive terminal of the power supply.
    • Use a resistor between the base and the input signal to limit the base current.

Example: Controlling an LED with Arduino UNO

The following example demonstrates how to use the 2N2222 to control an LED with an Arduino UNO:

// Define the pin connected to the base of the 2N2222 transistor
const int transistorBasePin = 9; // Digital pin 9
const int ledState = HIGH;       // Set to HIGH to turn on the LED

void setup() {
  pinMode(transistorBasePin, OUTPUT); // Set the pin as an output
}

void loop() {
  digitalWrite(transistorBasePin, ledState); // Turn on the LED
  delay(1000);                              // Wait for 1 second
  digitalWrite(transistorBasePin, LOW);     // Turn off the LED
  delay(1000);                              // Wait for 1 second
}

Important Considerations:

  • Always use a base resistor to limit the current into the base pin.
  • Ensure the collector current does not exceed 800mA to avoid damaging the transistor.
  • Use a heat sink if the transistor is dissipating significant power.

Troubleshooting and FAQs

Common Issues

  1. Transistor Overheating:

    • Cause: Exceeding the maximum collector current or power dissipation.
    • Solution: Use a heat sink or reduce the load current.
  2. No Output Signal:

    • Cause: Incorrect base resistor value or insufficient base current.
    • Solution: Recalculate the base resistor value and ensure the base current is adequate.
  3. LED or Load Not Turning On:

    • Cause: Incorrect wiring or insufficient input voltage.
    • Solution: Double-check the circuit connections and ensure the input voltage is sufficient to drive the transistor.

FAQs

Q1: Can the 2N2222 handle AC signals?
A1: Yes, the 2N2222 can amplify AC signals when configured in the active region. It is commonly used in audio and RF circuits for this purpose.

Q2: What is the difference between the TO-18 and TO-92 packages?
A2: The TO-18 package is a metal can that provides better thermal dissipation, while the TO-92 package is a plastic casing that is more cost-effective and compact.

Q3: Can I use the 2N2222 for high-power applications?
A3: No, the 2N2222 is designed for low to medium power applications. For high-power applications, consider using power transistors like the TIP120 or MOSFETs.

By following this documentation, you can effectively use the 2N2222 transistor in your electronic projects.
