How to Use FR120N mosfet board: Examples, Pinouts, and Specs

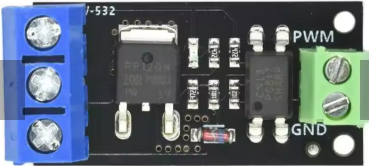

Image of FR120N mosfet boardDesign with FR120N mosfet board in Cirkit Designer

Introduction

The FR120N MOSFET board is a compact circuit board that integrates the FR120N MOSFET, a field-effect transistor designed for efficient switching and amplification of electronic signals. This board is widely used in power management applications, motor control, LED driving, and other circuits requiring high-speed switching and low power loss. Its robust design and high efficiency make it a popular choice for hobbyists and professionals alike.

Explore Projects Built with FR120N mosfet board

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Pixhawk-Controlled Solenoid Driver with Voltage Regulation: A project utilizing FR120N mosfet board in a practical application
Pixhawk-Controlled Solenoid Driver with Voltage Regulation

This circuit uses an LM393 comparator to drive an IRFZ44N MOSFET based on the comparison between two input signals from a pixhawk 2.4.8 flight controller. The MOSFET switches a solenoid, with a diode for back EMF protection, and the system is powered by a Lipo battery with voltage regulation provided by a step-up boost converter and a step-down voltage regulator to ensure stable operation. A resistor is connected to the gate of the MOSFET for proper biasing.

Open Project in Cirkit Designer
Image of STM32 Nucleo-Controlled Solenoid Actuation System: A project utilizing FR120N mosfet board in a practical application
STM32 Nucleo-Controlled Solenoid Actuation System

This circuit appears to be a microcontroller-driven array of push-pull solenoids with flyback diodes for protection. The STM32 Nucleo F303RE microcontroller's GPIO pins are connected to the gates of several nMOS transistors, which act as switches to control the current flow to the solenoids. A pushbutton with a pull-up resistor is also interfaced with the microcontroller for user input, and the power supply is connected to the solenoids with ground return paths through the nMOS transistors.

Open Project in Cirkit Designer

Common Applications:

Technical Specifications

Key Technical Details:

Pin Configuration and Descriptions:

The FR120N MOSFET board typically has three main pins or terminals for connection:

Pin Name Description
Gate (G) Controls the MOSFET's switching state. A voltage applied here turns the MOSFET on or off.
Drain (D) The terminal where the load is connected. Current flows from the drain to the source when the MOSFET is on.
Source (S) The terminal connected to ground or the negative side of the circuit.

Some boards may include additional pins for auxiliary features like a VCC input or enable pin. Always refer to the specific board's datasheet for exact pinout details.

Usage Instructions

How to Use the FR120N MOSFET Board in a Circuit:

  1. Power Supply: Ensure the power supply voltage does not exceed the maximum VDS rating of 100V.
  2. Gate Control: Connect the Gate pin to a microcontroller (e.g., Arduino) or a signal source. Use a resistor (typically 220Ω to 1kΩ) between the microcontroller pin and the Gate to limit current and prevent damage.
  3. Load Connection: Connect the load (e.g., motor, LED) between the Drain pin and the positive terminal of the power supply.
  4. Source Connection: Connect the Source pin to the ground of the power supply.
  5. Heat Dissipation: If operating at high currents, attach a heatsink to the MOSFET to prevent overheating.

Example Circuit with Arduino UNO:

Below is an example of using the FR120N MOSFET board to control an LED with an Arduino UNO.

Circuit Connections:

Arduino Code:

// Example code to control an LED using the FR120N MOSFET board
const int mosfetGatePin = 9; // Pin connected to the Gate of the MOSFET

void setup() {
  pinMode(mosfetGatePin, OUTPUT); // Set the MOSFET Gate pin as an output
}

void loop() {
  digitalWrite(mosfetGatePin, HIGH); // Turn the MOSFET on (LED ON)
  delay(1000); // Wait for 1 second
  digitalWrite(mosfetGatePin, LOW);  // Turn the MOSFET off (LED OFF)
  delay(1000); // Wait for 1 second
}

Important Considerations:

Troubleshooting and FAQs

Common Issues and Solutions:

  1. MOSFET Not Switching Properly:

    • Cause: Insufficient Gate voltage.
    • Solution: Ensure the Gate voltage is at least 10V for full switching. If using a 5V microcontroller, consider using a Gate driver circuit.
  2. Overheating:

    • Cause: High current or inadequate heat dissipation.
    • Solution: Attach a heatsink to the MOSFET and ensure proper ventilation.
  3. Load Not Turning On:

    • Cause: Incorrect wiring or damaged MOSFET.
    • Solution: Double-check the circuit connections. Test the MOSFET with a multimeter to verify functionality.
  4. Voltage Spikes Damaging the MOSFET:

    • Cause: Inductive load without a flyback diode.
    • Solution: Add a flyback diode across the load to suppress voltage spikes.

FAQs:

This documentation provides a comprehensive guide to using the FR120N MOSFET board effectively in your projects.
