How to Use Arduino nano: Examples, Pinouts, and Specs

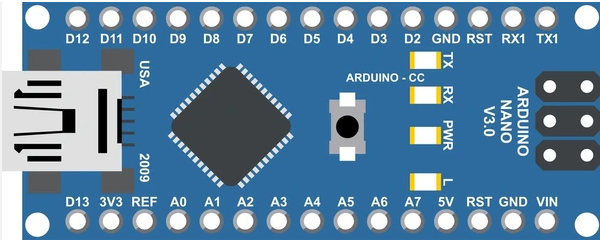

Image of Arduino nano
Cirkit Designer LogoDesign with Arduino nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is designed for easy integration into a wide range of projects, offering a small form factor without compromising functionality. The Nano is equipped with both digital and analog I/O pins, USB connectivity for programming, and compatibility with the Arduino IDE, making it a versatile choice for hobbyists, students, and professionals alike.

Explore Projects Built with Arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Arduino nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing Arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Basic Setup for Embedded Projects
Image of yt: A project utilizing Arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Multi-Sensor Data Logger with GPS, Bluetooth, and TFT Display
Image of mt: A project utilizing Arduino nano in a practical application
This circuit features an Arduino Nano as the central microcontroller, interfaced with a variety of sensors and modules for data acquisition and display. It includes a GPS module for location tracking, a DS18B20 temperature sensor, an MPU-6050 for motion tracking, an ADXL335 accelerometer, a MAX30100 pulse oximeter, and an Adafruit TFT display for output. Additionally, the circuit integrates an HC-05 Bluetooth module for wireless communication and is powered by a 3.7v LiPo battery through a charging module, indicating a portable, multi-sensor data logging or monitoring system with display and wireless capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Compass: A project utilizing Arduino nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OLED Display: A project utilizing Arduino nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yt: A project utilizing Arduino nano in a practical application
Arduino Nano Basic Setup for Embedded Projects
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mt: A project utilizing Arduino nano in a practical application
Arduino Nano-Based Multi-Sensor Data Logger with GPS, Bluetooth, and TFT Display
This circuit features an Arduino Nano as the central microcontroller, interfaced with a variety of sensors and modules for data acquisition and display. It includes a GPS module for location tracking, a DS18B20 temperature sensor, an MPU-6050 for motion tracking, an ADXL335 accelerometer, a MAX30100 pulse oximeter, and an Adafruit TFT display for output. Additionally, the circuit integrates an HC-05 Bluetooth module for wireless communication and is powered by a 3.7v LiPo battery through a charging module, indicating a portable, multi-sensor data logging or monitoring system with display and wireless capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of embedded systems
  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Wearable electronics
  • Sensor data acquisition and processing
  • Educational tools for learning microcontroller programming

Technical Specifications

The following table outlines the key technical details of the Arduino Nano:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB
Dimensions 18 x 45 mm

Pin Configuration and Descriptions

The Arduino Nano features a total of 30 pins. Below is a detailed description of the pin configuration:

Power Pins

Pin Name Description
1 VIN Input voltage to the board when using an external power source (7-12V recommended).
2 5V Regulated 5V output from the board. Can be used to power external components.
3 3.3V Regulated 3.3V output.
4 GND Ground pins (multiple GND pins available).
5 RESET Resets the microcontroller when pulled LOW.

Digital I/O Pins

Pin Name Description
D0-D13 Digital General-purpose digital I/O pins. Pins D3, D5, D6, D9, D10, and D11 support PWM.

Analog Input Pins

Pin Name Description
A0-A7 Analog Analog input pins for reading sensor data (10-bit resolution).

Communication Pins

Pin Name Description
D0, D1 RX, TX UART communication pins for serial data transmission and reception.
D10-D13 SPI SPI communication pins (SS, MOSI, MISO, SCK).
A4, A5 I2C I2C communication pins (SDA, SCL).

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Connect the Nano to your computer via a Mini-B USB cable for programming and power.
    • Alternatively, supply power through the VIN pin (7-12V recommended) or the 5V pin (regulated 5V).
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Select "Arduino Nano" as the board type and "ATmega328P" as the processor in the Tools menu.
    • Connect the Nano to your computer and select the appropriate COM port.
    • Write your code in the Arduino IDE and upload it to the board.
  3. Connecting Components:

    • Use the digital and analog pins to connect sensors, actuators, and other peripherals.
    • Ensure that the current drawn by connected components does not exceed the pin's maximum rating (40 mA).

Example: Blinking an LED

The following example demonstrates how to blink an LED connected to pin D13:

// This example blinks an LED connected to pin D13 on the Arduino Nano.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating of 40 mA per pin to prevent damage.
  • Use external pull-up or pull-down resistors for stable digital input readings.
  • When using analog inputs, ensure the input voltage does not exceed 5V.
  • For long-term projects, consider using a regulated power supply to avoid voltage fluctuations.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Check if the correct COM port is selected in the Arduino IDE.
    • Install or update the USB driver for the Arduino Nano.
  2. Code upload fails:

    • Verify that the correct board and processor are selected in the Tools menu.
    • Press the RESET button on the Nano before uploading the code.
    • Check for loose USB connections.
  3. The board is not powering on:

    • Confirm that the power source is within the recommended voltage range.
    • Inspect the board for physical damage or loose solder joints.
  4. Analog readings are unstable:

    • Use a capacitor (e.g., 0.1 µF) between the analog input pin and GND to filter noise.
    • Ensure the sensor or input device is properly grounded.

FAQs

Q: Can the Arduino Nano be powered by a battery?
A: Yes, the Nano can be powered by a battery through the VIN pin (7-12V) or the 5V pin (regulated 5V).

Q: Is the Arduino Nano compatible with shields?
A: The Nano does not directly support standard Arduino shields due to its smaller size, but it can be used with custom shields or breakout boards.

Q: How do I reset the Arduino Nano?
A: Press the RESET button on the board, or connect the RESET pin to GND momentarily.

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, the Nano can be paired with wireless modules like Bluetooth (HC-05/HC-06) or Wi-Fi (ESP8266) for wireless communication.

Q: What is the difference between the Arduino Nano and Arduino Uno?
A: The Nano is smaller and more compact than the Uno, making it ideal for space-constrained projects. Both use the same ATmega328P microcontroller and are functionally similar.
