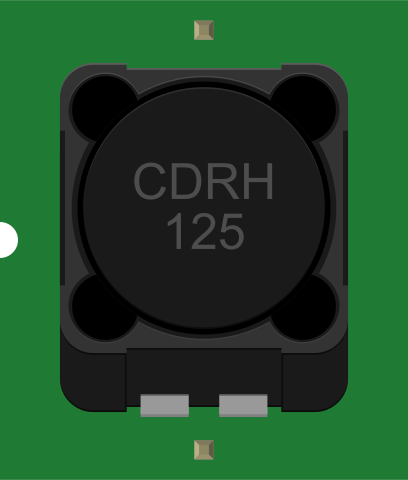

How to Use Inductors: Examples, Pinouts, and Specs

Inductors are passive electrical components that store energy in a magnetic field when electrical current flows through them. They are typically made of a coil of wire wound around a core, which can be air, ferrite, or another magnetic material. Inductors are widely used in electronic circuits for their ability to resist changes in current and to filter or smooth signals.

• Filtering: Used in power supplies and audio circuits to filter out unwanted noise or ripple.
• Energy Storage: Found in DC-DC converters and power management circuits.
• Tuning Circuits: Used in radio frequency (RF) applications to tune circuits to specific frequencies.
• Transformers: Inductors are a key component in transformer design for voltage conversion.
• Chokes: Used to block high-frequency AC signals while allowing DC or low-frequency signals to pass.

Inductors come in various shapes, sizes, and specifications depending on their intended application. Below are the key technical parameters and a typical pin configuration.

• Inductance (L): Measured in henries (H), typically in microhenries (µH) or millihenries (mH).
• Current Rating: Maximum current the inductor can handle without overheating.
• Saturation Current: The current at which the core material saturates, reducing inductance.
• DC Resistance (DCR): The resistance of the wire used in the coil, measured in ohms (Ω).
• Quality Factor (Q): A measure of the inductor's efficiency at a specific frequency.
• Self-Resonant Frequency (SRF): The frequency at which the inductor's inductance and parasitic capacitance resonate.

Inductors typically have two terminals, but their configuration can vary depending on the type (e.g., axial, radial, or surface-mount). Below is a general description:

For surface-mount inductors, the pins are often labeled as A and B or may not have explicit markings. Always refer to the manufacturer's datasheet for specific details.

1. Determine the Required Inductance: Calculate the inductance value needed for your application using circuit design equations (e.g., LC filter or resonant circuit formulas).
2. Select an Appropriate Inductor: Choose an inductor with the correct inductance, current rating, and other specifications.
3. Connect the Inductor: Place the inductor in series or parallel in the circuit, depending on the application. For example:
   • In a low-pass filter, connect the inductor in series with the load.
   • In a resonant circuit, pair the inductor with a capacitor.
4. Observe Polarity (if applicable): While most inductors are non-polarized, some specialized inductors (e.g., coupled inductors) may have polarity markings.

• Avoid Saturation: Ensure the current through the inductor does not exceed its saturation current.
• Minimize Parasitics: Be aware of parasitic capacitance and resistance, especially in high-frequency applications.
• Thermal Management: Monitor the inductor's temperature to prevent overheating.
• Use Proper Core Material: Select a core material suitable for the operating frequency and power level.

Inductors are often used in conjunction with microcontrollers like the Arduino UNO for tasks such as signal filtering or energy storage in DC-DC converters. Below is an example of using an inductor in a simple low-pass filter to smooth a PWM signal.

• Connect the inductor in series with the output pin of the Arduino.
• Place a capacitor in parallel with the load to form the low-pass filter.

// Example: Generating a PWM signal to test an inductor-based low-pass filter
// This code outputs a PWM signal on pin 9 of the Arduino UNO.

const int pwmPin = 9; // PWM output pin

void setup() {
  pinMode(pwmPin, OUTPUT); // Set pin 9 as an output
}

void loop() {
  analogWrite(pwmPin, 128); // Output a 50% duty cycle PWM signal
  delay(1000); // Wait for 1 second
  analogWrite(pwmPin, 64); // Output a 25% duty cycle PWM signal
  delay(1000); // Wait for 1 second
}

Note: The low-pass filter will smooth the PWM signal into an approximate DC voltage. Adjust the inductor and capacitor values to achieve the desired cutoff frequency.

1. Inductor Overheating:

   • Cause: Exceeding the current rating or poor thermal management.
   • Solution: Use an inductor with a higher current rating or improve cooling.

2. Unexpected Noise or Oscillations:

   • Cause: Parasitic capacitance or improper circuit design.
   • Solution: Use shielded inductors or redesign the circuit to minimize parasitics.

3. Low Efficiency in High-Frequency Applications:

   • Cause: Core material not suitable for high frequencies.
   • Solution: Use ferrite cores designed for high-frequency operation.

4. Inductor Saturation:

   • Cause: Current exceeds the saturation current of the inductor.
   • Solution: Select an inductor with a higher saturation current.

• Q: Can I use any inductor for RF applications?
  A: No, RF applications require inductors with high Q factors and low parasitic capacitance.

• Q: How do I calculate the cutoff frequency for an LC filter?
  A: Use the formula ( f_c = \frac{1}{2\pi\sqrt{L \cdot C}} ), where ( L ) is the inductance and ( C ) is the capacitance.

• Q: Are inductors polarized?
  A: Most inductors are non-polarized, but some specialized types (e.g., coupled inductors) may have polarity markings.

• Q: What happens if I exceed the inductor's current rating?
  A: The inductor may overheat, lose efficiency, or become damaged.

By following this documentation, you can effectively select, use, and troubleshoot inductors in your electronic projects.
