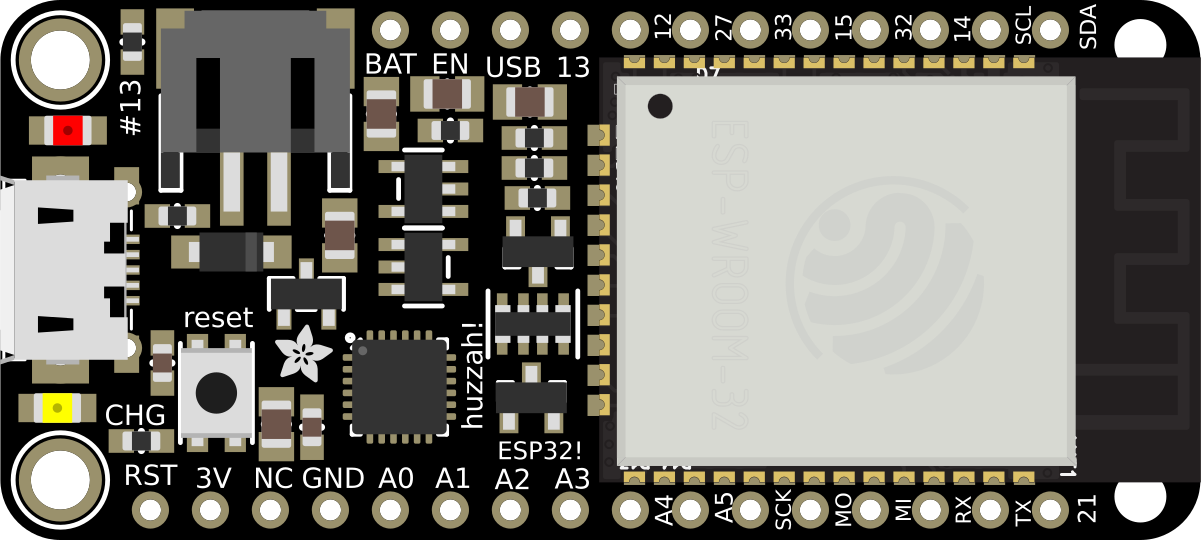

Image of ESP32
Cirkit Designer LogoDesign with ESP32 in Cirkit Designer

Introduction

The ESP32 is a powerful, low-cost microcontroller with integrated Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications and embedded systems. Developed by Espressif Systems, the ESP32 is widely used in smart home devices, wearable electronics, industrial automation, and more. Its dual-core processor, extensive GPIO options, and support for various communication protocols make it a versatile and efficient solution for a wide range of projects.

Common applications of the ESP32 include:

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Robotics and industrial control systems
  • Audio streaming and Bluetooth-enabled devices

Explore Projects Built with ESP32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing ESP32 in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based NTP Clock with DHT22 Temperature Sensor and WS2812 LED Matrix Display
Image of date time and temperature display : A project utilizing ESP32 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and an 8x8 WS2812 RGB LED matrix. The ESP32 reads temperature data from the DHT22 sensor and displays the current date, time, and temperature on the LED matrix, with date and time synchronized via NTP (Network Time Protocol). The ESP32 provides power to both the DHT22 and the LED matrix and communicates with the DHT22 via GPIO 4 and with the LED matrix via GPIO 5.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Water Flow Sensing
Image of Water: A project utilizing ESP32 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing ESP32 in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of MVP_design: A project utilizing ESP32 in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of date time and temperature display : A project utilizing ESP32 in a practical application
ESP32-Based NTP Clock with DHT22 Temperature Sensor and WS2812 LED Matrix Display
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and an 8x8 WS2812 RGB LED matrix. The ESP32 reads temperature data from the DHT22 sensor and displays the current date, time, and temperature on the LED matrix, with date and time synchronized via NTP (Network Time Protocol). The ESP32 provides power to both the DHT22 and the LED matrix and communicates with the DHT22 via GPIO 4 and with the LED matrix via GPIO 5.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Water: A project utilizing ESP32 in a practical application
ESP32-Based Environmental Monitoring System with Water Flow Sensing
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing ESP32 in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The ESP32 microcontroller is packed with features that make it suitable for both simple and complex projects. Below are its key technical specifications:

Feature Specification
Processor Dual-core Xtensa® 32-bit LX6 microprocessor, up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wi-Fi 802.11 b/g/n, 2.4 GHz
Bluetooth Bluetooth 4.2 and BLE (Bluetooth Low Energy)
GPIO Pins Up to 34 GPIO pins (multiplexed with other functions)
Operating Voltage 3.3 V
Input Voltage Range 3.0 V to 3.6 V
Power Consumption Ultra-low power consumption in deep sleep mode (~10 µA)
ADC Channels 18 channels, 12-bit resolution
DAC Channels 2 channels, 8-bit resolution
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM, and more
Temperature Range -40°C to 125°C

Pin Configuration and Descriptions

The ESP32 has a flexible pinout, with many pins serving multiple functions. Below is a table summarizing the key pins and their descriptions:

Pin Function Description
GPIO0 Input/Output, Boot Mode Selection Used for boot mode selection during startup.
GPIO2 Input/Output, ADC, DAC General-purpose I/O, supports ADC and DAC functions.
GPIO12 Input/Output, ADC, Touch Sensor General-purpose I/O, supports ADC and capacitive touch sensing.
GPIO13 Input/Output, ADC, Touch Sensor General-purpose I/O, supports ADC and capacitive touch sensing.
GPIO15 Input/Output, ADC, PWM General-purpose I/O, supports ADC and PWM.
GPIO16 Input/Output General-purpose I/O.
GPIO17 Input/Output General-purpose I/O.
EN Enable Active-high enable pin for the ESP32.
3V3 Power 3.3 V power supply input.
GND Ground Ground connection.

Usage Instructions

How to Use the ESP32 in a Circuit

  1. Powering the ESP32: The ESP32 operates at 3.3 V. Ensure your power supply provides a stable 3.3 V. If using a USB connection, the onboard voltage regulator will handle the conversion.
  2. Connecting Peripherals: Use the GPIO pins to connect sensors, actuators, or other peripherals. Be mindful of the pin's voltage and current limits.
  3. Programming the ESP32: The ESP32 can be programmed using the Arduino IDE, Espressif's ESP-IDF, or other compatible environments. Install the necessary drivers and libraries for your chosen platform.

Example: Blinking an LED with Arduino IDE

Below is an example of how to blink an LED connected to GPIO2 using the Arduino IDE:

// Define the GPIO pin where the LED is connected
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3 V. Avoid connecting 5 V signals directly to its GPIO pins to prevent damage.
  • Boot Mode: Ensure GPIO0 is pulled low during startup if you need to enter bootloader mode for programming.
  • Power Consumption: Use deep sleep mode to minimize power consumption in battery-powered applications.
  • Antenna Placement: For optimal Wi-Fi and Bluetooth performance, ensure the onboard antenna is not obstructed by metal or other materials.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Detected by Computer:

    • Ensure the correct USB driver is installed for your operating system.
    • Check the USB cable for damage or try a different cable.
  2. Upload Fails with "Failed to Connect" Error:

    • Hold down the "BOOT" button on the ESP32 while uploading the code.
    • Verify that the correct COM port and board type are selected in the Arduino IDE.
  3. Wi-Fi Connection Issues:

    • Double-check the SSID and password in your code.
    • Ensure the Wi-Fi network is operating on the 2.4 GHz band, as the ESP32 does not support 5 GHz.
  4. Random Resets or Instability:

    • Verify that the power supply provides sufficient current (at least 500 mA).
    • Add decoupling capacitors near the power pins to reduce noise.

FAQs

Q: Can the ESP32 be powered directly from a 5 V source?
A: No, the ESP32 operates at 3.3 V. However, if your board has an onboard voltage regulator, you can supply 5 V to the VIN pin.

Q: How do I use the ESP32's Bluetooth functionality?
A: The ESP32 supports both Bluetooth Classic and BLE. Use the Arduino IDE's BluetoothSerial or BLE libraries to implement Bluetooth functionality.

Q: Can I use the ESP32 with a 5 V logic level device?
A: You will need a level shifter to safely interface 5 V logic devices with the ESP32's 3.3 V GPIO pins.

Q: What is the maximum range of the ESP32's Wi-Fi?
A: The range depends on environmental factors but typically extends up to 100 meters in open spaces.

By following this documentation, you can effectively integrate the ESP32 into your projects and troubleshoot common issues with ease.
