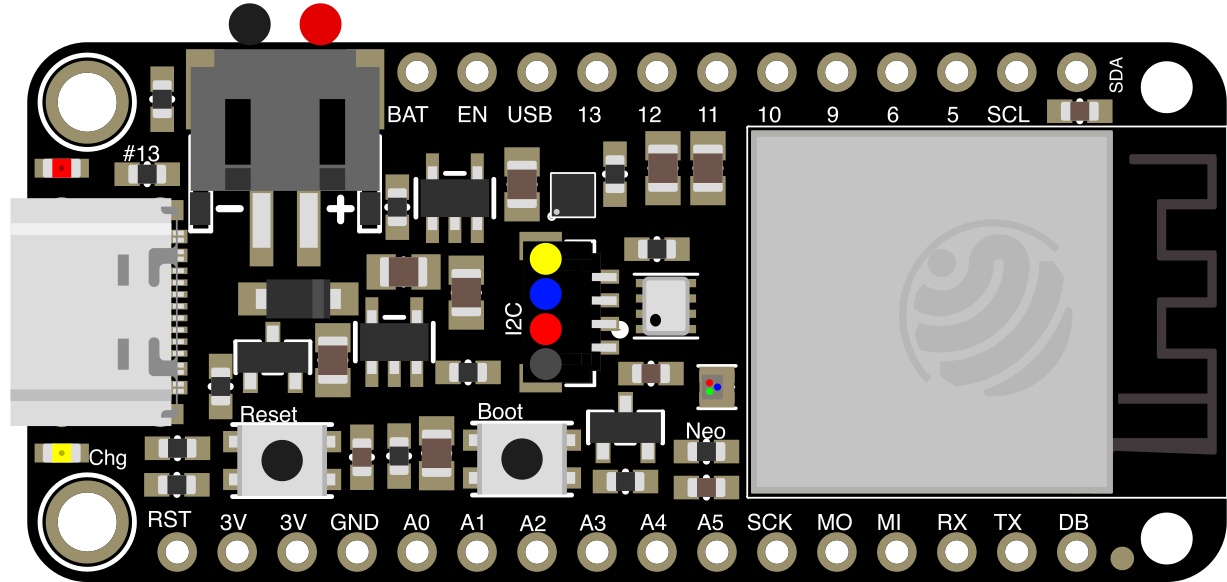

How to Use Adafruit Feather ESP32-S2: Examples, Pinouts, and Specs

The Adafruit Feather ESP32-S2 (Manufacturer Part ID: 5000) is a compact and versatile microcontroller board designed for IoT and wireless applications. Powered by the ESP32-S2 chip, it features built-in Wi-Fi capabilities, making it an excellent choice for projects requiring wireless connectivity. Its small form factor and compatibility with the Feather ecosystem allow for seamless integration with a wide range of peripherals and accessories.

• IoT devices and smart home automation
• Wireless sensor networks
• Data logging and remote monitoring
• Prototyping and development of Wi-Fi-enabled projects
• Wearable electronics

The following table outlines the key technical details of the Adafruit Feather ESP32-S2:

The Adafruit Feather ESP32-S2 features a standard Feather pinout. Below is the pin configuration:

1. Powering the Board:

   • Connect the board to a USB Type-C cable for power and programming.
   • Alternatively, connect a 3.7V LiPo battery to the JST connector for portable applications.

2. Programming the Board:

   • Install the ESP32-S2 board support package in the Arduino IDE or CircuitPython.
   • Select "Adafruit Feather ESP32-S2" as the target board in the IDE.
   • Use the USB Type-C connection to upload your code.

3. Connecting Peripherals:

   • Use the GPIO pins for digital and analog input/output.
   • Connect I2C devices to the SDA and SCL pins.
   • Use the UART pins (RX/TX) for serial communication.

• Ensure the input voltage does not exceed 6V to avoid damaging the board.
• Use level shifters when interfacing with 5V logic devices, as the board operates at 3.3V logic.
• Avoid shorting the GPIO pins to ground or power to prevent damage.
• For battery-powered applications, monitor the battery voltage using the BAT pin.

Below is an example of how to blink an LED connected to GPIO5 on the Adafruit Feather ESP32-S2:

// Example: Blink an LED on GPIO5 (D5)

// Define the LED pin
#define LED_PIN 5

void setup() {
  // Set the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

1. Board Not Detected by Computer:

   • Ensure the USB cable is data-capable (not just for charging).
   • Check that the correct board and port are selected in the Arduino IDE.
   • Try pressing the reset button on the board.

2. Code Upload Fails:

   • Verify that the ESP32-S2 board support package is installed in the IDE.
   • Hold the BOOT button while pressing the RESET button to enter bootloader mode.

3. Wi-Fi Connection Issues:

   • Double-check the SSID and password in your code.
   • Ensure the Wi-Fi network is 2.4 GHz, as the ESP32-S2 does not support 5 GHz networks.

4. Battery Not Charging:

   • Confirm that the LiPo battery is properly connected to the JST connector.
   • Check the USB power source for sufficient current (at least 500mA).

Q: Can I use CircuitPython with this board?
A: Yes, the Adafruit Feather ESP32-S2 is fully compatible with CircuitPython. You can install CircuitPython firmware and use it for rapid prototyping.

Q: Does the board support Bluetooth?
A: No, the ESP32-S2 chip does not include Bluetooth functionality. For Bluetooth-enabled projects, consider using the ESP32 or ESP32-S3 boards.

Q: What is the maximum current output of the 3.3V pin?
A: The 3.3V pin can supply up to 500mA, depending on the input power source.

Q: Can I use this board with a 5V sensor?
A: Yes, but you will need a level shifter to safely interface the 5V sensor with the 3.3V logic of the board.
