How to Use ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine: Examples, Pinouts, and Specs

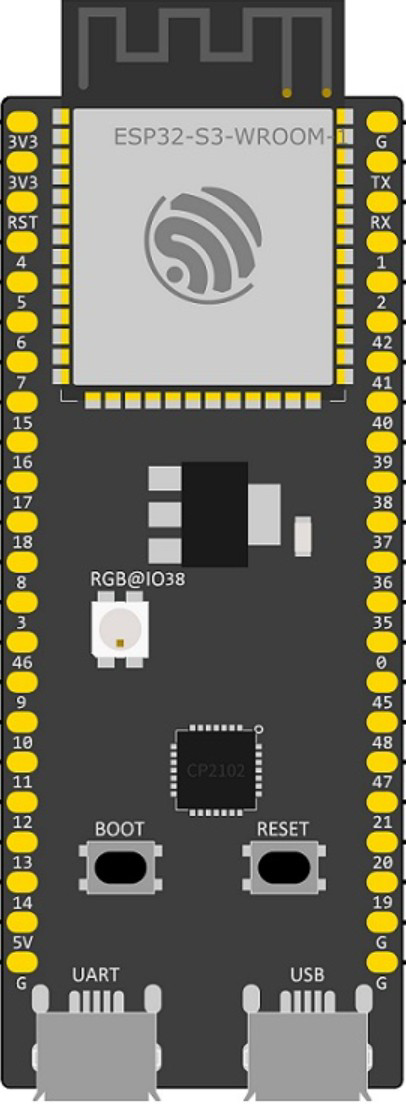

Image of ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine
Cirkit Designer LogoDesign with ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine in Cirkit Designer

Introduction

The ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine is a development board manufactured by Espressif. It is built around the ESP32-S3 microcontroller, which features dual-core Xtensa LX7 processors, integrated Wi-Fi (802.11 b/g/n), and Bluetooth 5.0 LE capabilities. This board is designed for IoT applications, prototyping, and development of smart devices, offering a robust platform for wireless connectivity and edge computing.

Explore Projects Built with ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Agriculture System with LoRa Communication
Image of Soil Monitoring Device: A project utilizing ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine in a practical application
This circuit features an ESP32 Devkit V1 microcontroller as the central processing unit, interfacing with various sensors including a PH Meter, an NPK Soil Sensor, and a Soil Moisture Sensor for environmental data collection. It also includes an EBYTE LoRa E220 module for wireless communication. Power management is handled by a Step Up Boost Power Converter, which is connected to a 12V Battery, stepping up the voltage to power the ESP32 and sensors, with common ground connections throughout the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 GPS and Wind Speed Logger with Dual OLED Displays and CAN Bus
Image of esp32-s3-ellipse: A project utilizing ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine in a practical application
This circuit features an ESP32-S3 microcontroller interfaced with an SD card module, two OLED displays, a GPS module, and a CAN bus module. The ESP32-S3 records GPS data to the SD card, displays speed on one OLED, and shows wind speed from the CAN bus on the other OLED, providing a comprehensive data logging and display system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of gps projekt circuit: A project utilizing ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Soil Monitoring Device: A project utilizing ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine in a practical application
ESP32-Based Smart Agriculture System with LoRa Communication
This circuit features an ESP32 Devkit V1 microcontroller as the central processing unit, interfacing with various sensors including a PH Meter, an NPK Soil Sensor, and a Soil Moisture Sensor for environmental data collection. It also includes an EBYTE LoRa E220 module for wireless communication. Power management is handled by a Step Up Boost Power Converter, which is connected to a 12V Battery, stepping up the voltage to power the ESP32 and sensors, with common ground connections throughout the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine in a practical application
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of esp32-s3-ellipse: A project utilizing ESP32-S3-DevKitC-1-N32R16V Entwicklungsplatine in a practical application
ESP32-S3 GPS and Wind Speed Logger with Dual OLED Displays and CAN Bus
This circuit features an ESP32-S3 microcontroller interfaced with an SD card module, two OLED displays, a GPS module, and a CAN bus module. The ESP32-S3 records GPS data to the SD card, displays speed on one OLED, and shows wind speed from the CAN bus on the other OLED, providing a comprehensive data logging and display system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home applications
  • Wearable technology
  • Wireless sensor networks
  • Industrial automation
  • Prototyping AI and machine learning applications at the edge
  • Bluetooth-enabled devices

Technical Specifications

The following table outlines the key technical specifications of the ESP32-S3-DevKitC-1-N32R16V:

Specification Details
Microcontroller ESP32-S3 (Xtensa LX7 dual-core, 240 MHz)
Flash Memory 16 MB (Octal SPI Flash)
PSRAM 8 MB
Wi-Fi 802.11 b/g/n (2.4 GHz)
Bluetooth Bluetooth 5.0 LE
GPIO Pins 45 GPIOs (multiplexed with other functions)
Operating Voltage 3.3 V
Input Voltage Range 5 V (via USB)
USB Interface USB Type-C (supports programming and power supply)
Debugging Interface JTAG
Dimensions 54 mm x 25.5 mm
Operating Temperature -40°C to +85°C

Pin Configuration and Descriptions

The ESP32-S3-DevKitC-1-N32R16V features a 2x19 pin header layout. Below is a summary of the pin configuration:

Pin Name Description
1 3V3 3.3 V power output
2 GND Ground
3 IO0 GPIO0, used for boot mode selection
4 IO1 GPIO1, general-purpose I/O
5 IO2 GPIO2, general-purpose I/O
6 IO3 GPIO3, general-purpose I/O
... ... ... (Refer to the official datasheet for the full pinout)
38 EN Enable pin, used to reset the chip

For the complete pinout and alternate functions, refer to the official Espressif documentation.

Usage Instructions

How to Use the Component in a Circuit

  1. Powering the Board:

    • Connect the board to a computer or power source using a USB Type-C cable. The board operates at 3.3 V internally but accepts 5 V input via USB.
  2. Programming the Board:

    • Install the Espressif ESP32-S3 board package in the Arduino IDE or use the Espressif IDF (IoT Development Framework) for advanced development.
    • Select the correct board and port in the IDE before uploading code.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals. Ensure that the voltage levels of connected devices are compatible with the 3.3 V logic of the ESP32-S3.
  4. Flashing Firmware:

    • Hold the BOOT button while pressing the EN button to enter firmware flashing mode.

Important Considerations and Best Practices

  • Voltage Levels: Avoid applying voltages higher than 3.3 V to GPIO pins to prevent damage.
  • Power Supply: Use a stable 5 V power source when powering the board via USB.
  • Wi-Fi and Bluetooth Antenna: Ensure the onboard antenna is not obstructed for optimal wireless performance.
  • Debugging: Use the JTAG interface for advanced debugging if required.

Example Code for Arduino IDE

Below is an example of how to connect the ESP32-S3-DevKitC-1-N32R16V to a Wi-Fi network and blink an LED:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

#define LED_PIN 2 // Onboard LED is connected to GPIO2

void setup() {
  pinMode(LED_PIN, OUTPUT); // Set LED pin as output
  Serial.begin(115200); // Initialize serial communication

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  digitalWrite(LED_PIN, HIGH); // Turn the LED on
  delay(1000); // Wait for 1 second
  digitalWrite(LED_PIN, LOW); // Turn the LED off
  delay(1000); // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Verify that the correct drivers for the ESP32-S3 are installed on your computer.
  2. Wi-Fi connection fails:

    • Double-check the SSID and password in your code.
    • Ensure the Wi-Fi network is operating on the 2.4 GHz band (not 5 GHz).
  3. GPIO pins not working as expected:

    • Confirm that the pins are not being used for alternate functions.
    • Check for short circuits or incorrect wiring.
  4. Firmware upload fails:

    • Hold the BOOT button while pressing the EN button to enter flashing mode.
    • Verify that the correct COM port is selected in the IDE.

FAQs

Q: Can I power the board using an external 3.3 V source?
A: Yes, you can power the board using the 3V3 pin, but ensure the voltage is stable and does not exceed 3.3 V.

Q: Does the board support deep sleep mode?
A: Yes, the ESP32-S3 supports deep sleep mode for low-power applications.

Q: Can I use the board with MicroPython?
A: Yes, the ESP32-S3 is compatible with MicroPython. You can flash the MicroPython firmware to the board and use it for development.

Q: What is the maximum current output of the 3V3 pin?
A: The 3V3 pin can supply up to 500 mA, depending on the input power source.

For additional support, refer to the official Espressif documentation or community forums.
