How to Use Power Suply 24V: Examples, Pinouts, and Specs

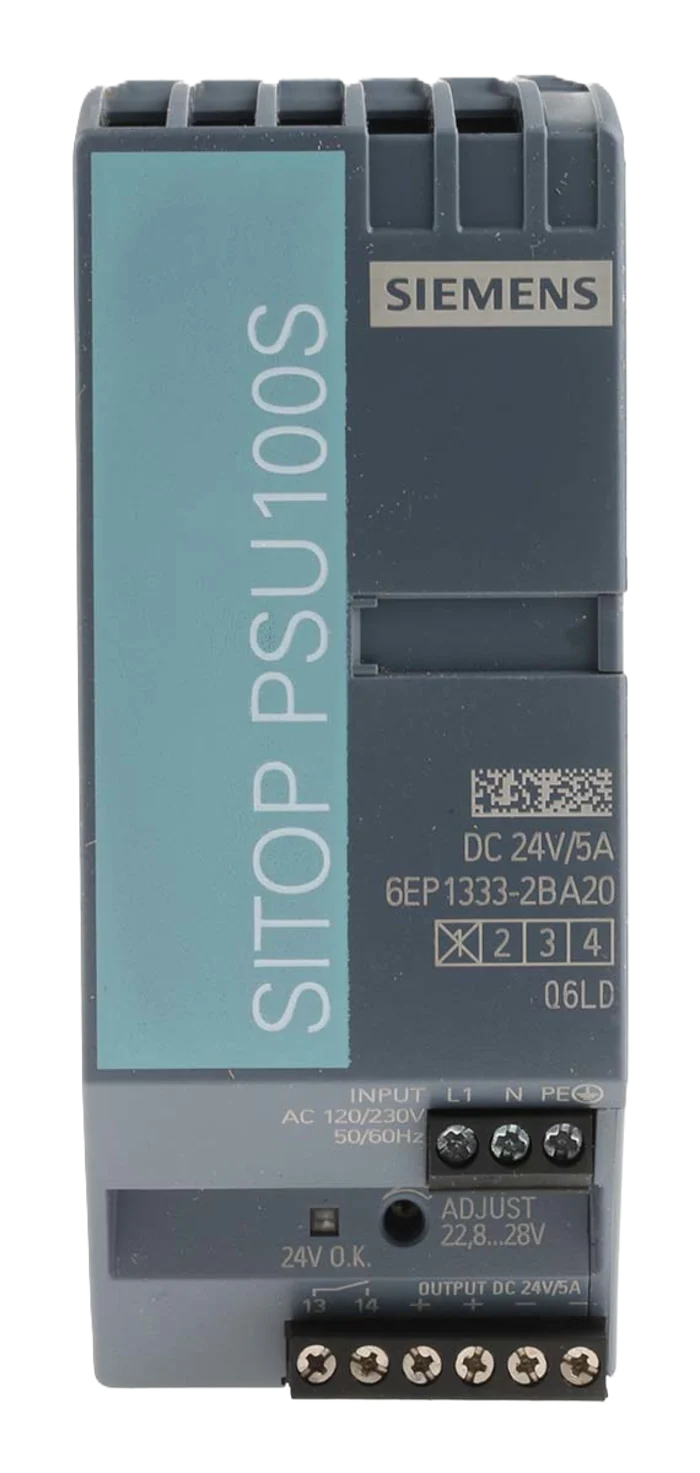

The Siemens Power Supply 24V (Manufacturer Part ID: 0) is a reliable device designed to convert electrical energy from an input source into a stable 24V DC output. This component is essential for powering a wide range of electronic circuits, industrial equipment, and automation systems. Its robust design ensures consistent performance, making it suitable for both commercial and industrial applications.

• Powering industrial automation systems and PLCs
• Supplying energy to sensors, actuators, and relays
• Providing stable voltage for laboratory equipment
• Supporting LED lighting systems
• General-purpose use in electronic circuits requiring 24V DC

Below are the key technical details of the Siemens Power Supply 24V:

The Siemens Power Supply 24V features the following terminal connections:

1. Mounting: Secure the power supply onto a DIN rail or a stable surface to ensure proper ventilation and heat dissipation.
2. Input Connection:
   • Connect the AC input terminals (L and N) to a 100-240V AC power source.
   • Ensure the PE terminal is connected to the ground for safety.
3. Output Connection:
   • Connect the +V terminal to the positive input of your load or circuit.
   • Connect the -V terminal to the ground or negative input of your load.
4. Power On: After verifying all connections, switch on the AC power source. The power supply will provide a stable 24V DC output.

• Load Capacity: Ensure the total load connected to the power supply does not exceed its maximum output current (5A).
• Ventilation: Install the power supply in a well-ventilated area to prevent overheating.
• Wiring: Use appropriately rated wires for both input and output connections to handle the current safely.
• Polarity: Double-check the polarity of the output connections to avoid damaging connected devices.
• Safety: Always disconnect the power supply from the AC source before making any wiring changes.

The Siemens Power Supply 24V can be used to power an Arduino UNO via a step-down voltage regulator (e.g., LM2596) to convert 24V to 5V. Below is an example circuit and Arduino code:

1. Connect the +V and -V terminals of the power supply to the input of the LM2596 regulator.
2. Adjust the LM2596 output to 5V using its potentiometer.
3. Connect the 5V output of the regulator to the Arduino UNO's 5V pin and GND.

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the 5V output of the step-down regulator

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Incorrect input wiring or no AC power.
   • Solution: Verify the AC input connections (L, N, and PE) and ensure the power source is active.

2. Overheating:

   • Cause: Insufficient ventilation or excessive load.
   • Solution: Ensure proper airflow around the power supply and reduce the load to within the rated current.

3. Output Voltage Fluctuations:

   • Cause: Unstable input voltage or overloaded output.
   • Solution: Check the input voltage stability and reduce the load if necessary.

4. Short Circuit Protection Triggered:

   • Cause: A short circuit in the connected load.
   • Solution: Disconnect the load, identify the short circuit, and resolve it before reconnecting.

Q1: Can this power supply be used outdoors?
A1: No, the Siemens Power Supply 24V is not weatherproof. It should be used in a dry, indoor environment.

Q2: What happens if the load exceeds 5A?
A2: The power supply's overcurrent protection will activate, shutting down the output to prevent damage.

Q3: Can I connect multiple devices to the output?
A3: Yes, as long as the total current draw does not exceed 5A.

Q4: Is the power supply compatible with battery charging?
A4: While it can provide a stable 24V output, ensure the charging circuit is designed to handle the specific requirements of the battery type.

This concludes the documentation for the Siemens Power Supply 24V. For further assistance, refer to the manufacturer's user manual or contact Siemens support.
