How to Use Red Pushbutton: Examples, Pinouts, and Specs

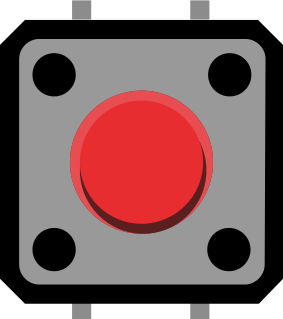

The Red Pushbutton is a momentary switch that is activated when pressed. It is commonly used to control circuits or devices in a simple on/off manner. When pressed, the pushbutton completes an electrical connection, allowing current to flow through the circuit. Once released, the connection is broken, and the circuit is turned off. Its compact design and ease of use make it a popular choice for a wide range of applications.

• User input for electronic devices
• Reset or power buttons in circuits
• Triggering events in microcontroller-based projects
• Prototyping and testing circuits
• Simple on/off control for LEDs, motors, or other components

The Red Pushbutton is a versatile component with the following key specifications:

The Red Pushbutton typically has four pins, arranged in a square configuration. However, only two pins are active at any given time, depending on the orientation of the button. The table below describes the pin functionality:

Note: Pins 1 and 3 are internally connected, as are Pins 2 and 4. This allows for flexibility in wiring.

1. Identify the Active Pins: Use a multimeter to determine which pins are internally connected. Typically, Pins 1 and 3 are connected, and Pins 2 and 4 are connected.
2. Connect to the Circuit:
   • Connect one terminal (e.g., Pin 1) to the positive voltage source.
   • Connect the other terminal (e.g., Pin 2) to the input of the device or circuit you want to control.
3. Add a Pull-Down Resistor: To ensure proper operation, connect a pull-down resistor (e.g., 10kΩ) between the input pin of your circuit and ground. This prevents floating signals when the button is not pressed.
4. Test the Circuit: Press the button to complete the circuit and observe the desired action (e.g., turning on an LED).

• Debouncing: Mechanical pushbuttons can produce noise or "bouncing" when pressed. Use a capacitor or software debouncing techniques to eliminate false triggers.
• Voltage and Current Ratings: Ensure the pushbutton is used within its specified voltage and current limits to avoid damage.
• Orientation: Double-check the pin configuration before connecting the pushbutton to your circuit.

The Red Pushbutton can be easily interfaced with an Arduino UNO for simple input control. Below is an example circuit and code:

• Connect one terminal of the pushbutton to digital pin 2 on the Arduino.
• Connect the other terminal to ground.
• Add a 10kΩ pull-up resistor between digital pin 2 and the 5V pin on the Arduino.

// Define the pin connected to the pushbutton
const int buttonPin = 2;
// Define the pin connected to the LED
const int ledPin = 13;

// Variable to store the button state
int buttonState = 0;

void setup() {
  // Set the button pin as input
  pinMode(buttonPin, INPUT_PULLUP);
  // Set the LED pin as output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Read the state of the pushbutton
  buttonState = digitalRead(buttonPin);

  // If the button is pressed (LOW state due to pull-up resistor)
  if (buttonState == LOW) {
    digitalWrite(ledPin, HIGH); // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);  // Turn off the LED
  }
}

Note: The INPUT_PULLUP mode enables the internal pull-up resistor, simplifying the circuit.

1. Button Not Responding:
   • Check the wiring and ensure the correct pins are connected.
   • Verify that the button is not damaged or worn out.
2. Unintended Behavior (e.g., LED Flickering):
   • This is likely caused by button bouncing. Add a 0.1µF capacitor across the button terminals or implement software debouncing in your code.
3. Button Works Intermittently:
   • Ensure the pull-down or pull-up resistor is correctly connected.
   • Check for loose connections or faulty soldering.

Q: Can I use the Red Pushbutton with higher voltages?
A: No, the pushbutton is rated for a maximum of 12V. Using higher voltages may damage the component or cause unsafe operation.

Q: How do I debounce the pushbutton in software?
A: You can use a delay or a state-checking algorithm in your code to filter out noise. For example, wait for a stable signal for a few milliseconds before registering a button press.

Q: Can I use the pushbutton to control AC devices?
A: The Red Pushbutton is designed for low-voltage DC circuits. For AC applications, use a relay or a switch rated for AC voltage.

By following this documentation, you can effectively integrate the Red Pushbutton into your projects and troubleshoot common issues with ease.
