How to Use Seeeduino V3.0: Examples, Pinouts, and Specs

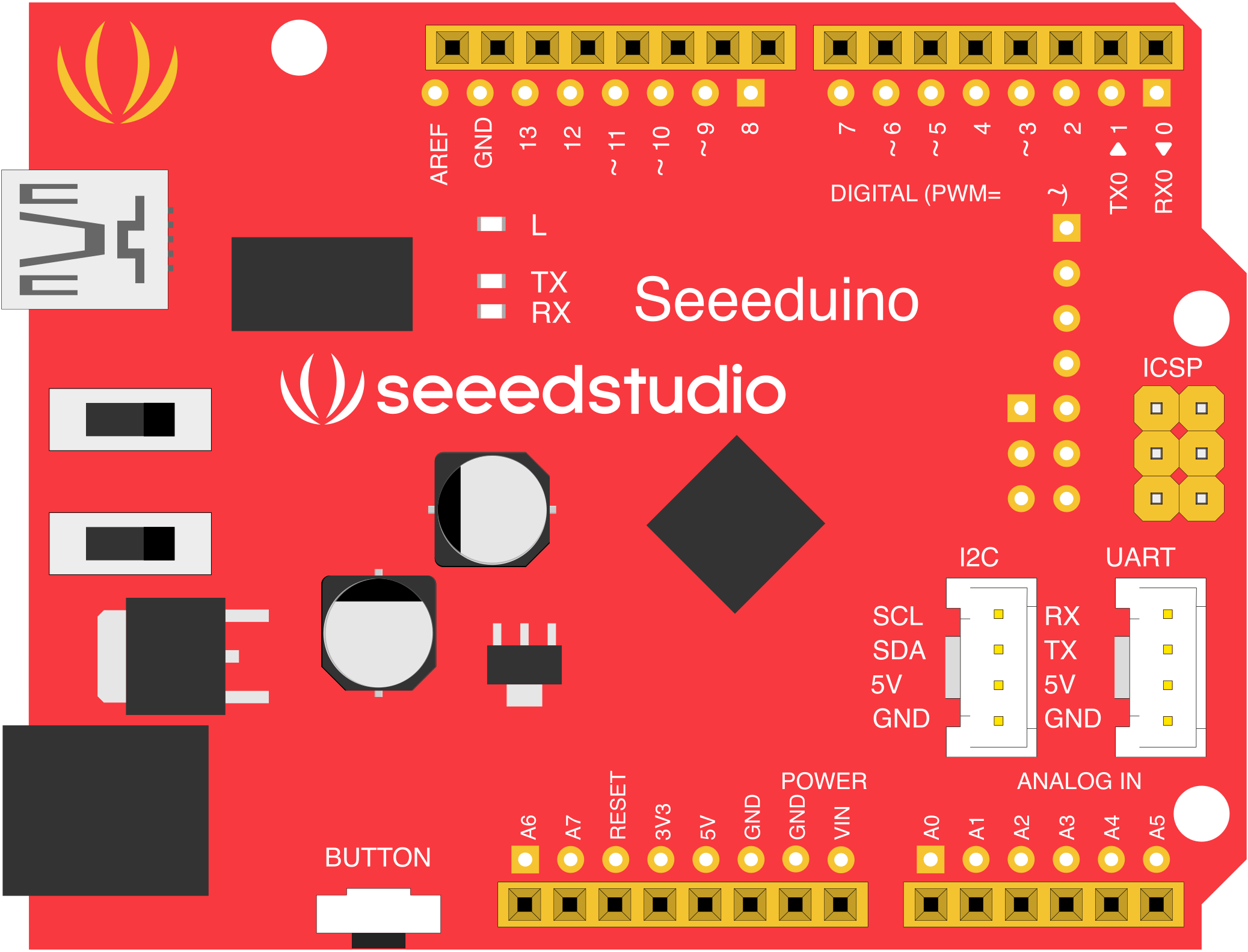

Image of Seeeduino V3.0
Cirkit Designer LogoDesign with Seeeduino V3.0 in Cirkit Designer

Introduction

The Seeeduino V3.0, manufactured by Seeed Studio, is a versatile microcontroller board based on the Arduino platform. It features the ATmega328P microcontroller, a USB interface for programming, and a variety of input/output (I/O) pins for connecting sensors, actuators, and other peripherals. Designed to be compatible with most Arduino shields and libraries, the Seeeduino V3.0 is an excellent choice for hobbyists, students, and professionals working on embedded systems and IoT projects.

Explore Projects Built with Seeeduino V3.0

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered GSM/GPRS+GPS Tracker with Seeeduino XIAO
Image of SOS System : A project utilizing Seeeduino V3.0 in a practical application
This circuit features an Ai Thinker A9G development board for GSM/GPRS and GPS/BDS connectivity, interfaced with a Seeeduino XIAO microcontroller for control and data processing. A solar cell, coupled with a TP4056 charging module, charges a 3.3V battery, which powers the system through a 3.3V regulator ensuring stable operation. The circuit likely serves for remote data communication and location tracking, with the capability to be powered by renewable energy and interfaced with additional sensors or input devices via the Seeeduino XIAO.
Cirkit Designer LogoOpen Project in Cirkit Designer
I2C-Controlled OLED Display with External EEPROM and Interactive Pushbuttons
Image of godmode: A project utilizing Seeeduino V3.0 in a practical application
This is a microcontroller-based interactive device featuring a Wemos D1 Mini, an OLED display, external EEPROM, and an I/O expander. It includes user input buttons and status LEDs, with potential MIDI interface capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 Based Environmental Monitoring and Control System with Data Logging
Image of ESP32: A project utilizing Seeeduino V3.0 in a practical application
This circuit features an ESP32-S3 microcontroller interfaced with various sensors and modules, including a DHT22 temperature and humidity sensor, an HC-SR04 ultrasonic sensor, an SGP41 VOC and NOx sensor, and an Adafruit INA260 current and power sensor. The ESP32-S3 also controls a DC motor via a relay and communicates with an SD card and an OLED display. An Arduino UNO is used to read inputs from a rotary encoder, and a step-down buck converter is used to regulate voltage from a 12V battery to power the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 Based Vibration Detection System with TFT Display and Power Backup
Image of IOT Thesis: A project utilizing Seeeduino V3.0 in a practical application
This circuit features an ESP32-S3 microcontroller connected to various peripherals including an ADXL355 accelerometer, an SW-420 vibration sensor, a buzzer module, and an ILI9341 TFT display. The ESP32-S3 manages sensor inputs and provides output to the display and buzzer. Power management is handled by a 12V to 5V step-down converter, and a UPS ensures uninterrupted power supply, with a rocker switch to control the power flow.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Seeeduino V3.0

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of SOS System : A project utilizing Seeeduino V3.0 in a practical application
Solar-Powered GSM/GPRS+GPS Tracker with Seeeduino XIAO
This circuit features an Ai Thinker A9G development board for GSM/GPRS and GPS/BDS connectivity, interfaced with a Seeeduino XIAO microcontroller for control and data processing. A solar cell, coupled with a TP4056 charging module, charges a 3.3V battery, which powers the system through a 3.3V regulator ensuring stable operation. The circuit likely serves for remote data communication and location tracking, with the capability to be powered by renewable energy and interfaced with additional sensors or input devices via the Seeeduino XIAO.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of godmode: A project utilizing Seeeduino V3.0 in a practical application
I2C-Controlled OLED Display with External EEPROM and Interactive Pushbuttons
This is a microcontroller-based interactive device featuring a Wemos D1 Mini, an OLED display, external EEPROM, and an I/O expander. It includes user input buttons and status LEDs, with potential MIDI interface capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32: A project utilizing Seeeduino V3.0 in a practical application
ESP32-S3 Based Environmental Monitoring and Control System with Data Logging
This circuit features an ESP32-S3 microcontroller interfaced with various sensors and modules, including a DHT22 temperature and humidity sensor, an HC-SR04 ultrasonic sensor, an SGP41 VOC and NOx sensor, and an Adafruit INA260 current and power sensor. The ESP32-S3 also controls a DC motor via a relay and communicates with an SD card and an OLED display. An Arduino UNO is used to read inputs from a rotary encoder, and a step-down buck converter is used to regulate voltage from a 12V battery to power the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IOT Thesis: A project utilizing Seeeduino V3.0 in a practical application
ESP32-S3 Based Vibration Detection System with TFT Display and Power Backup
This circuit features an ESP32-S3 microcontroller connected to various peripherals including an ADXL355 accelerometer, an SW-420 vibration sensor, a buzzer module, and an ILI9341 TFT display. The ESP32-S3 manages sensor inputs and provides output to the display and buzzer. Power management is handled by a 12V to 5V step-down converter, and a UPS ensures uninterrupted power supply, with a rocker switch to control the power flow.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping IoT devices
  • Robotics and automation projects
  • Sensor data acquisition and processing
  • Home automation systems
  • Educational tools for learning microcontroller programming

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Interface USB Type-B
Dimensions 68.6 mm x 53.4 mm

Pin Configuration and Descriptions

Pin Name Description
Digital Pins 0-13 General-purpose digital I/O pins. Pins 3, 5, 6, 9, 10, and 11 support PWM.
Analog Pins A0-A5 Analog input pins for reading sensor data (10-bit resolution).
GND Ground pin for completing the circuit.
5V Regulated 5V output for powering external components.
3.3V Regulated 3.3V output for low-voltage components.
VIN Input voltage pin for external power supply (7-12V recommended).
RESET Resets the microcontroller.
TX (Pin 1) Transmit pin for serial communication.
RX (Pin 0) Receive pin for serial communication.
ICSP Header In-Circuit Serial Programming header for flashing firmware.

Usage Instructions

How to Use the Seeeduino V3.0 in a Circuit

  1. Powering the Board:

    • Connect the Seeeduino V3.0 to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power supply (7-12V) via the VIN pin or DC barrel jack.
  2. Programming the Board:

    • Install the Arduino IDE on your computer.
    • Select "Arduino Uno" as the board type in the IDE (the Seeeduino V3.0 is compatible with Arduino Uno).
    • Connect the board to your computer and select the appropriate COM port.
    • Write your code in the Arduino IDE and upload it to the board.
  3. Connecting Sensors and Actuators:

    • Use the digital I/O pins for controlling actuators like LEDs, motors, or relays.
    • Use the analog input pins to read data from sensors like temperature or light sensors.
    • Ensure that the connected components do not exceed the current limits of the pins (40 mA per pin).
  4. Using Shields:

    • The Seeeduino V3.0 is compatible with most Arduino shields.
    • Stack the shield onto the board, ensuring proper alignment of the pins.

Important Considerations and Best Practices

  • Avoid short circuits between pins or components to prevent damage to the board.
  • Use appropriate resistors when connecting LEDs or other components to limit current.
  • Ensure that the total current drawn from the 5V and 3.3V pins does not exceed the board's power supply capacity.
  • When using external power, ensure the voltage is within the recommended range (7-12V).
  • Disconnect the board from power before making changes to the circuit.

Example Code for Blinking an LED

The following example demonstrates how to blink an LED connected to digital pin 13:

// This code blinks an LED connected to digital pin 13 on the Seeeduino V3.0.
// The LED will turn on for 1 second and off for 1 second in a loop.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Check if the correct COM port is selected in the Arduino IDE.
    • Install the necessary USB drivers for the Seeeduino V3.0.
  2. Code upload fails:

    • Verify that the correct board type ("Arduino Uno") is selected in the Arduino IDE.
    • Ensure no other application is using the COM port.
    • Press the RESET button on the board before uploading the code.
  3. Components connected to the board are not working:

    • Double-check the wiring and connections.
    • Ensure the components are compatible with the board's voltage and current ratings.
    • Test the components individually to confirm they are functional.
  4. The board overheats:

    • Check for short circuits in the circuit.
    • Ensure the input voltage does not exceed the recommended range.
    • Avoid drawing excessive current from the I/O pins.

FAQs

Q: Can I use the Seeeduino V3.0 with Arduino libraries?
A: Yes, the Seeeduino V3.0 is fully compatible with Arduino libraries and sketches.

Q: What is the maximum current the board can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, and the 3.3V pin can supply up to 50 mA.

Q: Can I power the board with a battery?
A: Yes, you can use a 9V battery connected to the VIN pin or DC barrel jack.

Q: Is the Seeeduino V3.0 compatible with all Arduino shields?
A: The Seeeduino V3.0 is compatible with most Arduino Uno shields, but always check the shield's specifications for compatibility.
