How to Use MQ-8: Examples, Pinouts, and Specs

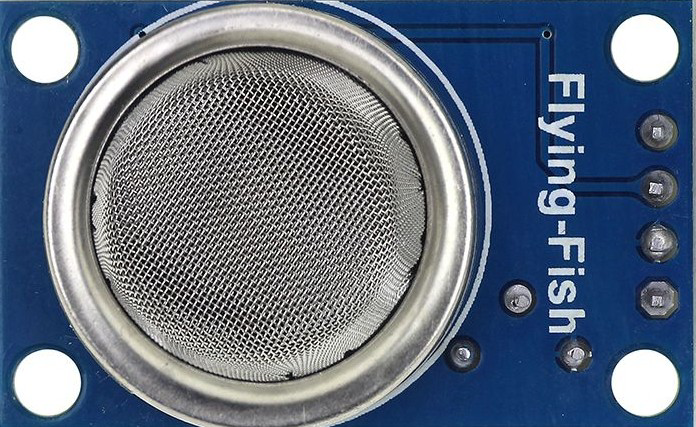

The MQ-8 is a hydrogen gas sensor manufactured by Flying Fish, designed to detect hydrogen gas concentrations in the air. It operates on the principle of resistive change, where the sensor's resistance varies in the presence of hydrogen gas. The MQ-8 provides an analog output signal proportional to the detected gas concentration, making it suitable for a wide range of applications.

• Hydrogen gas leak detection in industrial environments
• Monitoring hydrogen levels in fuel cells
• Safety systems in laboratories and chemical plants
• Portable gas detection devices
• Environmental monitoring systems

The MQ-8 sensor is designed for reliable and accurate hydrogen gas detection. Below are its key technical details:

The MQ-8 sensor module typically comes with a 4-pin interface. Below is the pin configuration:

1. Power Supply: Connect the VCC pin to a 5V DC power source and the GND pin to ground.
2. Analog Output: Connect the AOUT pin to an analog input pin of a microcontroller (e.g., Arduino) to read the gas concentration as a voltage.
3. Digital Output: Optionally, connect the DOUT pin to a digital input pin of a microcontroller. The DOUT pin provides a high or low signal based on the gas concentration exceeding a preset threshold, which can be adjusted using the onboard potentiometer.
4. Preheating: Allow the sensor to preheat for at least 24 hours before taking stable readings.
5. Load Resistor: Ensure the load resistor (RL) is properly configured. A typical value is 10 kΩ, but it can be adjusted based on the application.

• Preheat Time: The sensor requires a preheat time of at least 24 hours for accurate and stable readings.
• Ventilation: Ensure proper ventilation in the testing environment to avoid false readings caused by stagnant air.
• Calibration: Calibrate the sensor in a known hydrogen gas concentration environment for precise measurements.
• Avoid Contaminants: Keep the sensor away from water, oil, and other contaminants that may damage the sensing element.
• Power Supply Stability: Use a stable 5V DC power supply to avoid fluctuations in the sensor's output.

Below is an example of how to interface the MQ-8 sensor with an Arduino UNO to read the analog output:

// MQ-8 Hydrogen Gas Sensor Example Code
// Connect AOUT to Arduino analog pin A0
// Connect VCC to 5V and GND to GND

const int analogPin = A0;  // Analog pin connected to AOUT
int sensorValue = 0;       // Variable to store sensor reading

void setup() {
  Serial.begin(9600);  // Initialize serial communication at 9600 baud
  Serial.println("MQ-8 Hydrogen Gas Sensor Test");
}

void loop() {
  // Read the analog value from the sensor
  sensorValue = analogRead(analogPin);

  // Convert the analog value to voltage (assuming 5V reference)
  float voltage = sensorValue * (5.0 / 1023.0);

  // Print the sensor value and voltage to the Serial Monitor
  Serial.print("Sensor Value: ");
  Serial.print(sensorValue);
  Serial.print(" | Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000);  // Wait for 1 second before the next reading
}

1. No Output Signal:

   • Cause: Incorrect wiring or power supply.
   • Solution: Verify all connections and ensure the sensor is powered with 5V DC.

2. Unstable Readings:

   • Cause: Insufficient preheat time or fluctuating power supply.
   • Solution: Allow the sensor to preheat for at least 24 hours and use a stable power source.

3. False Alarms:

   • Cause: Presence of other gases or contaminants.
   • Solution: Ensure the sensor is used in a clean environment and calibrate it for hydrogen gas.

4. Low Sensitivity:

   • Cause: Incorrect load resistor value.
   • Solution: Adjust the load resistor (RL) to optimize sensitivity.

Q1: Can the MQ-8 detect gases other than hydrogen?
A1: While the MQ-8 is optimized for hydrogen gas, it may respond to other gases. However, its sensitivity and accuracy for non-hydrogen gases are not guaranteed.

Q2: How do I calibrate the MQ-8 sensor?
A2: Expose the sensor to a known concentration of hydrogen gas and adjust the load resistor or threshold potentiometer to match the expected output.

Q3: Can I use the MQ-8 with a 3.3V microcontroller?
A3: The MQ-8 requires a 5V power supply for the heater. However, you can use a voltage divider or level shifter to interface the analog output with a 3.3V microcontroller.

Q4: How long does the MQ-8 sensor last?
A4: The sensor's lifespan depends on usage and environmental conditions. Under normal conditions, it can last several years.
