How to Use DHT22 - AM2302 Humidity and Temperature Sensor [Bill Ludwig] : Examples, Pinouts, and Specs

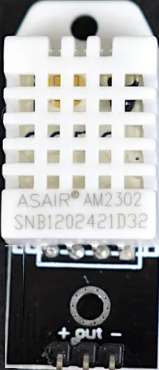

The DHT22, also known as the AM2302, is a digital sensor designed to measure both humidity and temperature. It offers high accuracy and a wide measurement range, making it suitable for a variety of applications. The sensor communicates using a single-wire digital interface, simplifying its integration into microcontroller-based systems.

• Weather monitoring systems
• Home automation and HVAC control
• Greenhouse and agricultural monitoring
• Industrial environmental monitoring
• IoT (Internet of Things) projects

The DHT22 sensor is designed for precision and reliability. Below are its key technical details:

The DHT22 sensor has four pins, but only three are typically used in most applications. Below is the pinout:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Data Line: Connect the DATA pin to a digital input pin on your microcontroller. Use a 10kΩ pull-up resistor between the DATA pin and the VCC pin to ensure proper communication.
3. Timing Considerations: The DHT22 requires a minimum of 2 seconds between consecutive readings to ensure accurate data.
4. Library Support: Many microcontroller platforms, such as Arduino, have libraries available to simplify communication with the DHT22.

• Avoid Rapid Sampling: Reading the sensor more frequently than every 2 seconds can result in inaccurate data.
• Stable Power Supply: Ensure a stable power source to avoid communication errors.
• Environmental Factors: Place the sensor in a location free from direct sunlight or water exposure for accurate readings.
• Cable Length: Keep the cable length between the sensor and microcontroller as short as possible to reduce signal degradation.

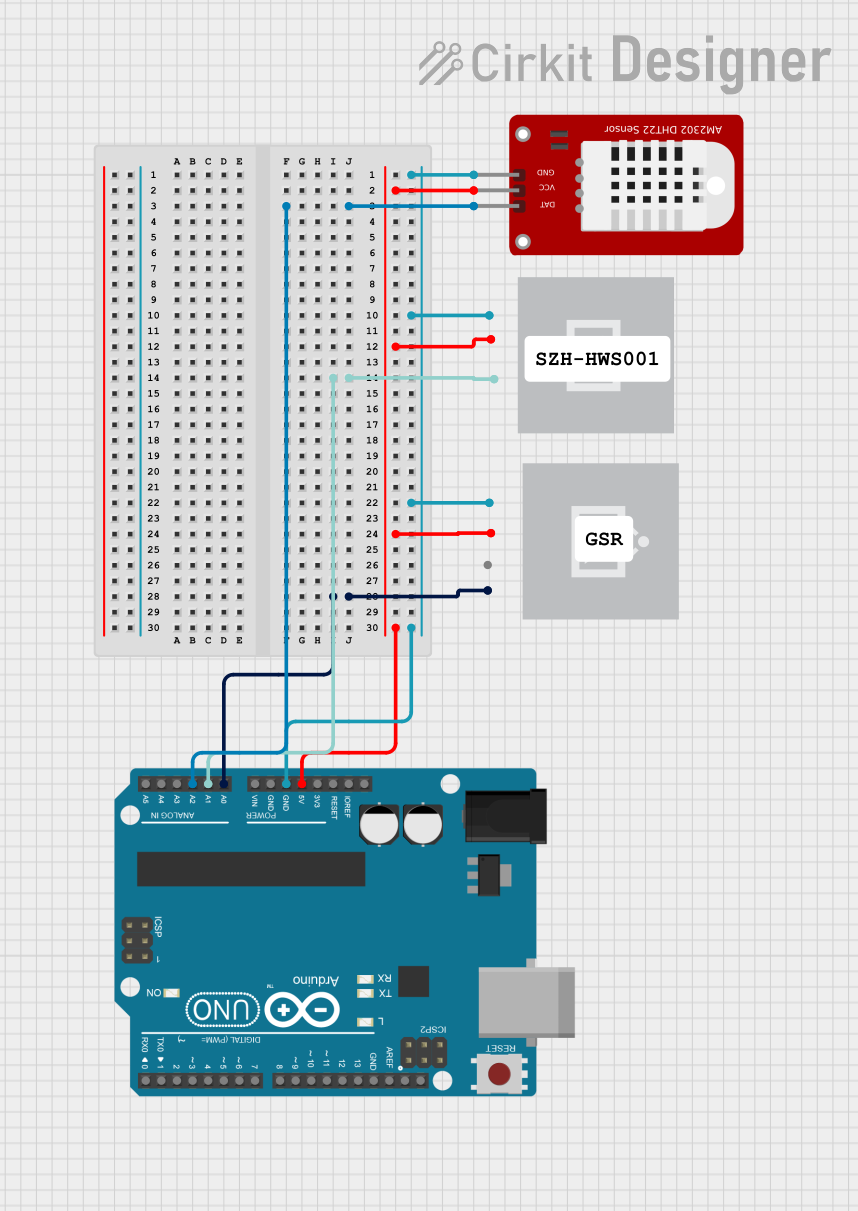

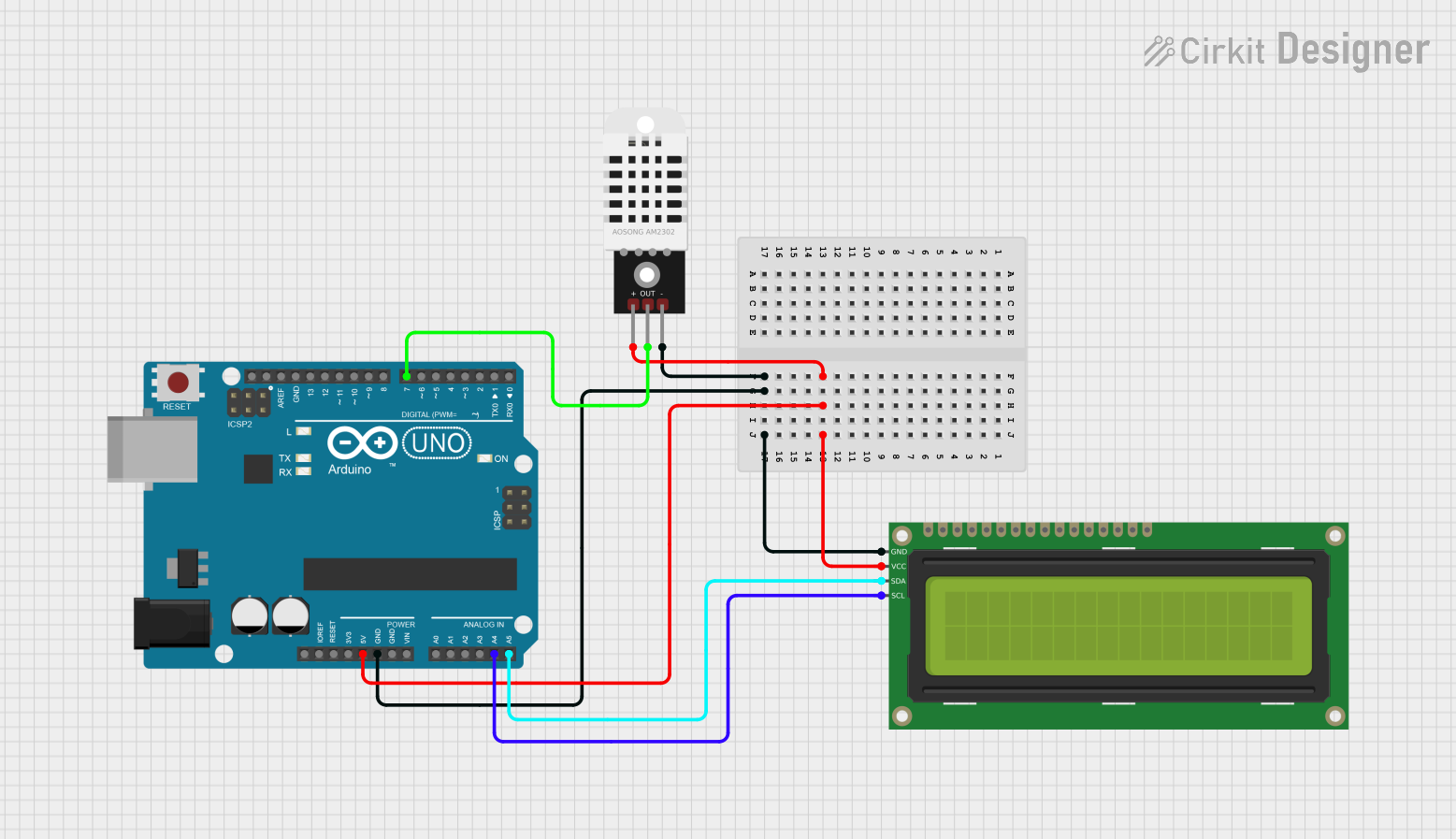

Below is an example of how to use the DHT22 sensor with an Arduino UNO. This code uses the popular DHT library.

#include "DHT.h"

// Define the DHT sensor type and pin
#define DHTTYPE DHT22  // DHT22 (AM2302) sensor type
#define DHTPIN 2       // Pin connected to the DATA pin of the sensor

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600);  // Start serial communication
  Serial.println("DHT22 Sensor Initialization");
  dht.begin();         // Initialize the DHT sensor
}

void loop() {
  delay(2000);  // Wait at least 2 seconds between readings

  // Read temperature and humidity
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if the readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the results to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");
}

1. No Data or Incorrect Readings

   • Cause: Missing pull-up resistor on the DATA line.
   • Solution: Add a 10kΩ pull-up resistor between the DATA pin and VCC.

2. Frequent Communication Errors

   • Cause: Unstable power supply or long cable length.
   • Solution: Use a stable power source and keep the cable length as short as possible.

3. Sensor Not Responding

   • Cause: Incorrect wiring or insufficient delay between readings.
   • Solution: Double-check the wiring and ensure a minimum 2-second delay between readings.

4. Inconsistent Readings

   • Cause: Environmental interference or improper placement.
   • Solution: Place the sensor in a stable environment away from direct sunlight, water, or strong airflow.

Q: Can I use the DHT22 with a 3.3V microcontroller?
A: Yes, the DHT22 operates within a voltage range of 3.3V to 6V, making it compatible with 3.3V systems.

Q: What is the maximum cable length for the DHT22?
A: The recommended maximum cable length is about 20 meters, but this depends on the pull-up resistor value and environmental noise.

Q: How often can I read data from the DHT22?
A: The DHT22 requires a minimum of 2 seconds between consecutive readings to ensure accurate data.

Q: Is the DHT22 waterproof?
A: No, the DHT22 is not waterproof. For outdoor or wet environments, consider using a waterproof enclosure.
