How to Use DS3231 RTC Module with EEPROM: Examples, Pinouts, and Specs

Image of DS3231 RTC Module with EEPROM
Cirkit Designer LogoDesign with DS3231 RTC Module with EEPROM in Cirkit Designer

Introduction

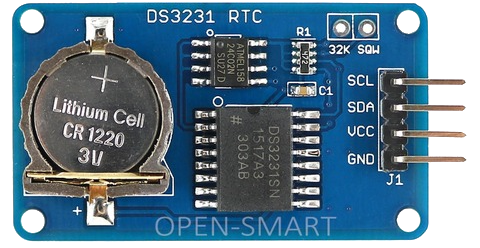

The DS3231 is a highly accurate real-time clock (RTC) module designed to maintain precise time and date information. It features an integrated temperature-compensated crystal oscillator (TCXO) for enhanced accuracy and includes an onboard EEPROM for non-volatile data storage. The module communicates via the I2C interface, making it easy to integrate with microcontrollers like Arduino, Raspberry Pi, and others. Additionally, the DS3231 includes a backup battery input, ensuring uninterrupted timekeeping during power outages.

Explore Projects Built with DS3231 RTC Module with EEPROM

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Dual RTC DS3231 Synchronization with Glyph C3 Microcontroller
Image of DS: A project utilizing DS3231 RTC Module with EEPROM in a practical application
This circuit integrates two RTC DS3231 real-time clock modules with a Glyph C3 microcontroller. The RTC modules are connected to the microcontroller via I2C communication protocol, using the SCL and SDA lines for clock and data respectively. Both RTC modules and the microcontroller share a common power supply (3V3) and ground (GND), indicating that they operate at the same voltage level.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Real-Time Clock Synchronization
Image of RTC: A project utilizing DS3231 RTC Module with EEPROM in a practical application
This circuit connects an ESP32 microcontroller to a DS3231 Real Time Clock (RTC) module. The ESP32's Vin and GND pins are connected to the VCC and GND pins of the DS3231, providing power to the RTC. The SCL and SDA pins of the DS3231 are connected to the D22 and D21 pins of the ESP32, respectively, enabling I2C communication between the microcontroller and the RTC module.
Cirkit Designer LogoOpen Project in Cirkit Designer
NodeMCU ESP8266 Based Smart Relay with LCD Interface and RTC Support
Image of IoT based bell system: A project utilizing DS3231 RTC Module with EEPROM in a practical application
This circuit features a NodeMCU V3 ESP8266 microcontroller connected to a KY-019 Relay module for controlling power to a device, a DS3231 Real Time Clock (RTC) for timekeeping, and an LCM1602 IIC module interfaced with an LCD Display for user interface. The circuit is powered by a Mini AC-DC converter module that steps down AC mains to 5V, and the NodeMCU facilitates communication between the RTC, the relay, and the display, likely for scheduling and displaying the status of the connected device.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Mini-Based Smart Timekeeper with OLED Display and Battery Charging
Image of RM Gloves: A project utilizing DS3231 RTC Module with EEPROM in a practical application
This circuit features an ESP32 Mini microcontroller as its core, interfaced with a 0.96" OLED display and a DS3231 Real-Time Clock (RTC) for timekeeping and display purposes. A TP4056 module is used for charging a LiPoly battery, which powers the system through an LM2596 voltage regulator and an AMS1117-3.3 voltage regulator to step down and stabilize the voltage for the ESP32 and peripherals. User inputs are captured through a rotary potentiometer and a red pushbutton, which are connected to the ESP32's GPIOs for control and reset functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DS3231 RTC Module with EEPROM

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of DS: A project utilizing DS3231 RTC Module with EEPROM in a practical application
Dual RTC DS3231 Synchronization with Glyph C3 Microcontroller
This circuit integrates two RTC DS3231 real-time clock modules with a Glyph C3 microcontroller. The RTC modules are connected to the microcontroller via I2C communication protocol, using the SCL and SDA lines for clock and data respectively. Both RTC modules and the microcontroller share a common power supply (3V3) and ground (GND), indicating that they operate at the same voltage level.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RTC: A project utilizing DS3231 RTC Module with EEPROM in a practical application
ESP32-Based Real-Time Clock Synchronization
This circuit connects an ESP32 microcontroller to a DS3231 Real Time Clock (RTC) module. The ESP32's Vin and GND pins are connected to the VCC and GND pins of the DS3231, providing power to the RTC. The SCL and SDA pins of the DS3231 are connected to the D22 and D21 pins of the ESP32, respectively, enabling I2C communication between the microcontroller and the RTC module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IoT based bell system: A project utilizing DS3231 RTC Module with EEPROM in a practical application
NodeMCU ESP8266 Based Smart Relay with LCD Interface and RTC Support
This circuit features a NodeMCU V3 ESP8266 microcontroller connected to a KY-019 Relay module for controlling power to a device, a DS3231 Real Time Clock (RTC) for timekeeping, and an LCM1602 IIC module interfaced with an LCD Display for user interface. The circuit is powered by a Mini AC-DC converter module that steps down AC mains to 5V, and the NodeMCU facilitates communication between the RTC, the relay, and the display, likely for scheduling and displaying the status of the connected device.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RM Gloves: A project utilizing DS3231 RTC Module with EEPROM in a practical application
ESP32 Mini-Based Smart Timekeeper with OLED Display and Battery Charging
This circuit features an ESP32 Mini microcontroller as its core, interfaced with a 0.96" OLED display and a DS3231 Real-Time Clock (RTC) for timekeeping and display purposes. A TP4056 module is used for charging a LiPoly battery, which powers the system through an LM2596 voltage regulator and an AMS1117-3.3 voltage regulator to step down and stabilize the voltage for the ESP32 and peripherals. User inputs are captured through a rotary potentiometer and a red pushbutton, which are connected to the ESP32's GPIOs for control and reset functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Timekeeping in microcontroller-based projects
  • Data logging systems
  • Alarm clocks and timers
  • Home automation systems
  • Scheduling and event tracking
  • Industrial control systems

Technical Specifications

Key Technical Details

Parameter Specification
Supply Voltage 2.3V to 5.5V
Communication Interface I2C (Two-Wire Interface)
Timekeeping Accuracy ±2 ppm (0°C to +40°C)
Operating Temperature Range -40°C to +85°C
Backup Battery Voltage 3.0V (CR2032 recommended)
EEPROM Size 32 KB
Oscillator Stability Temperature-compensated crystal

Pin Configuration and Descriptions

Pin Name Pin Number Description
GND 1 Ground connection
VCC 2 Power supply input (2.3V to 5.5V)
SDA 3 I2C data line
SCL 4 I2C clock line
SQW/INT 5 Square wave or interrupt output (optional)
32K 6 32.768 kHz output (optional)

Usage Instructions

How to Use the DS3231 RTC Module in a Circuit

  1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  2. I2C Communication: Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller. For Arduino UNO, connect:
    • SDA to A4
    • SCL to A5
  3. Backup Battery: Insert a CR2032 battery into the battery holder to ensure timekeeping during power outages.
  4. Optional Outputs:
    • Use the SQW/INT pin for square wave or alarm interrupts.
    • Use the 32K pin for a 32.768 kHz clock signal if required.

Important Considerations and Best Practices

  • Ensure proper pull-up resistors (typically 4.7kΩ) are connected to the SDA and SCL lines for I2C communication.
  • Avoid powering the module solely through the backup battery; it is intended only for maintaining time during power loss.
  • Use libraries like RTClib for Arduino to simplify communication with the DS3231.
  • Handle the module carefully to avoid damaging the crystal oscillator or other components.

Example Code for Arduino UNO

Below is an example of how to use the DS3231 RTC module with an Arduino UNO to read and display the current time and date:

#include <Wire.h>
#include "RTClib.h"

// Create an RTC_DS3231 object to interact with the module
RTC_DS3231 rtc;

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  Wire.begin();       // Initialize I2C communication

  if (!rtc.begin()) {
    Serial.println("Couldn't find RTC module. Check connections!");
    while (1); // Halt execution if RTC is not found
  }

  if (rtc.lostPower()) {
    Serial.println("RTC lost power, setting the time...");
    // Set the RTC to the current date and time
    rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
  }
}

void loop() {
  DateTime now = rtc.now(); // Get the current date and time

  // Print the current date and time to the Serial Monitor
  Serial.print(now.year(), DEC);
  Serial.print('/');
  Serial.print(now.month(), DEC);
  Serial.print('/');
  Serial.print(now.day(), DEC);
  Serial.print(" ");
  Serial.print(now.hour(), DEC);
  Serial.print(':');
  Serial.print(now.minute(), DEC);
  Serial.print(':');
  Serial.println(now.second(), DEC);

  delay(1000); // Wait for 1 second before updating
}

Notes on the Code

  • The RTClib library simplifies communication with the DS3231. Install it via the Arduino Library Manager.
  • The rtc.adjust() function sets the RTC to the current date and time based on the computer's clock when the code is compiled.

Troubleshooting and FAQs

Common Issues and Solutions

  1. RTC Not Detected:

    • Cause: Incorrect wiring or missing pull-up resistors on the I2C lines.
    • Solution: Double-check the connections and ensure pull-up resistors are in place.
  2. Incorrect Time or Date:

    • Cause: RTC lost power or was not initialized properly.
    • Solution: Use the rtc.adjust() function to set the correct time and date.
  3. No Output on Serial Monitor:

    • Cause: Serial communication not initialized or incorrect baud rate.
    • Solution: Ensure Serial.begin(9600) matches the Serial Monitor's baud rate.
  4. EEPROM Not Accessible:

    • Cause: Address conflict on the I2C bus.
    • Solution: Verify the I2C address of the EEPROM and ensure no conflicts with other devices.

FAQs

  • Q: Can the DS3231 operate without a backup battery?
    A: Yes, but it will lose timekeeping functionality during power outages.

  • Q: What is the default I2C address of the DS3231?
    A: The default I2C address is 0x68.

  • Q: How long does the backup battery last?
    A: A CR2032 battery can typically last several years, depending on usage and environmental conditions.

  • Q: Can I use the DS3231 with a 3.3V microcontroller?
    A: Yes, the DS3231 is compatible with both 3.3V and 5V systems.

This concludes the documentation for the DS3231 RTC Module with EEPROM.
