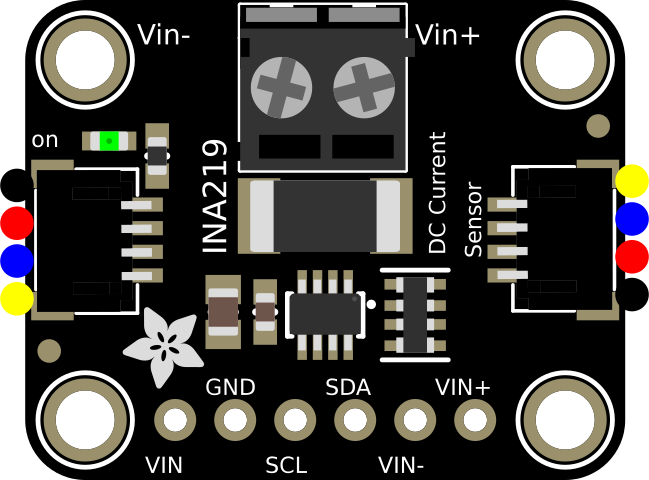

How to Use INA219: Examples, Pinouts, and Specs

The INA219 is a high-side current shunt monitor with an integrated I2C interface, designed for precise measurement of current, voltage, and power. It is widely used in applications requiring accurate power monitoring, such as battery management systems, power supply monitoring, and energy-efficient devices. By measuring both the voltage across a shunt resistor and the bus voltage, the INA219 calculates power consumption with high accuracy.

• Battery-powered devices for power consumption monitoring
• Solar power systems
• DC motor control and monitoring
• Power supply efficiency analysis
• IoT devices requiring energy usage tracking

The INA219 offers a range of features that make it suitable for various power monitoring applications. Below are its key technical details:

• Supply Voltage (Vcc): 3.0V to 5.5V
• Bus Voltage Range: 0V to 26V
• Current Measurement Range: ±3.2A (with a 0.1Ω shunt resistor, configurable)
• Shunt Voltage Range: ±320mV
• Communication Interface: I2C (7-bit address, configurable)
• Resolution: 12-bit ADC
• Accuracy: ±1% (typical)
• Operating Temperature Range: -40°C to +125°C
• Power Consumption: 1mA (typical)

The INA219 is typically available in an 8-pin SOIC package. Below is the pinout and description:

The INA219 is straightforward to use in a circuit, thanks to its I2C interface and high-side current sensing capability. Below are the steps and considerations for using the INA219:

1. Power Supply: Connect the Vcc pin to a 3.3V or 5V power source, and connect GND to the ground.
2. Shunt Resistor: Place a shunt resistor between the V+ and V- pins. The voltage drop across this resistor will be used to calculate the current.
3. I2C Communication: Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller (e.g., Arduino).
4. Address Configuration: Use the A0 and A1 pins to set the I2C address if multiple INA219 devices are used on the same bus.
5. Optional Alert Pin: If needed, connect the ALERT/RDY pin to monitor over-limit conditions.

• Shunt Resistor Selection: Choose a shunt resistor with a low resistance value to minimize power loss, but ensure it provides a measurable voltage drop for the expected current range.
• Bypass Capacitor: Place a 0.1µF decoupling capacitor between Vcc and GND to reduce noise.
• I2C Pull-Up Resistors: Use pull-up resistors (typically 4.7kΩ) on the SDA and SCL lines if not already present on your microcontroller.

Below is an example of how to use the INA219 with an Arduino UNO to measure current, voltage, and power:

#include <Wire.h>
#include <Adafruit_INA219.h>

// Create an instance of the INA219 class
Adafruit_INA219 ina219;

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  while (!Serial) {
    delay(10); // Wait for the serial monitor to open
  }

  // Initialize the INA219 sensor
  if (!ina219.begin()) {
    Serial.println("Failed to find INA219 chip");
    while (1) {
      delay(10); // Halt execution if the sensor is not found
    }
  }
  Serial.println("INA219 initialized successfully");
}

void loop() {
  float shuntVoltage = ina219.getShuntVoltage_mV(); // Get shunt voltage in mV
  float busVoltage = ina219.getBusVoltage_V();      // Get bus voltage in V
  float current_mA = ina219.getCurrent_mA();        // Get current in mA
  float power_mW = ina219.getPower_mW();            // Get power in mW

  // Print the measurements to the serial monitor
  Serial.print("Shunt Voltage: ");
  Serial.print(shuntVoltage);
  Serial.println(" mV");

  Serial.print("Bus Voltage: ");
  Serial.print(busVoltage);
  Serial.println(" V");

  Serial.print("Current: ");
  Serial.print(current_mA);
  Serial.println(" mA");

  Serial.print("Power: ");
  Serial.print(power_mW);
  Serial.println(" mW");

  Serial.println("-----------------------------");
  delay(1000); // Wait 1 second before the next reading
}

• The Adafruit_INA219 library is used for easy communication with the INA219. Install it via the Arduino Library Manager.
• Ensure the I2C address of the INA219 matches the default address (0x40) or modify it in the code if necessary.

1. No Communication with the INA219:

   • Cause: Incorrect I2C wiring or address mismatch.
   • Solution: Verify the SDA and SCL connections and ensure the I2C address matches the configuration.

2. Inaccurate Measurements:

   • Cause: Incorrect shunt resistor value or poor connections.
   • Solution: Double-check the shunt resistor value and ensure secure connections.

3. Sensor Not Detected:

   • Cause: INA219 not powered or I2C pull-up resistors missing.
   • Solution: Ensure the INA219 is powered correctly and add pull-up resistors if needed.

• Q: Can the INA219 measure negative currents?
  A: Yes, the INA219 can measure bidirectional currents if configured appropriately.

• Q: What is the maximum current the INA219 can measure?
  A: The maximum current depends on the shunt resistor value. For example, with a 0.1Ω resistor, it can measure up to ±3.2A.

• Q: Can I use the INA219 with a 3.3V microcontroller?
  A: Yes, the INA219 is compatible with both 3.3V and 5V logic levels.

By following this documentation, you can effectively integrate the INA219 into your projects for accurate power monitoring.
