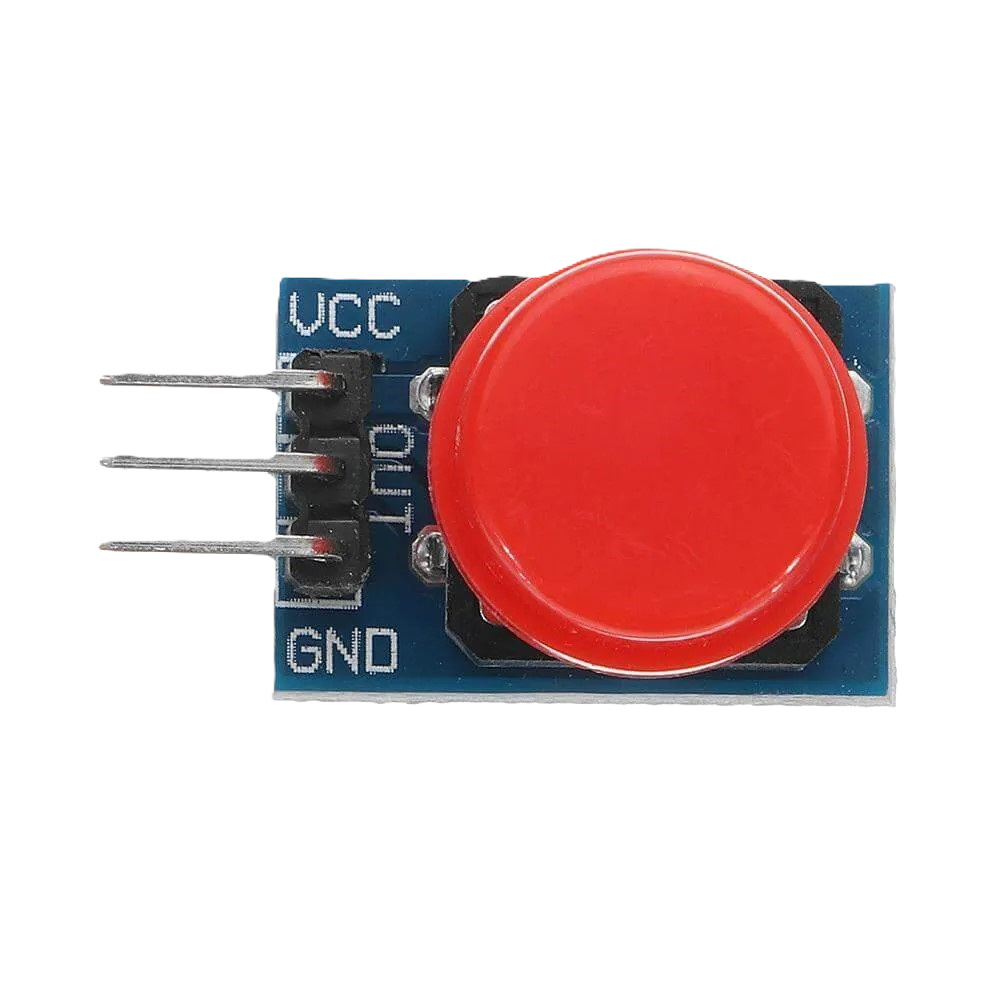

Image of button 12x12
Cirkit Designer LogoDesign with button 12x12 in Cirkit Designer

Introduction

The Button 12x12 is a tactile push-button switch with a 12mm x 12mm footprint. It is widely used in electronic devices to provide user input, such as triggering actions, navigating menus, or controlling devices. This compact and durable switch is ideal for applications requiring a momentary contact mechanism, where the circuit is completed only while the button is pressed.

Explore Projects Built with button 12x12

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Pushbutton-Controlled Interface with 40-Pin Connector and UBS Power Supply
Image of connect 4: A project utilizing button 12x12 in a practical application
This circuit consists of a 40-pin connector interfacing with four pushbuttons and a UBS power supply. The pushbuttons are used as inputs to the connector, which then relays the signals to other components or systems. The UBS power supply provides the necessary 24V power to the pushbuttons and the common ground for the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO GSM Communication Hub with QR Code Reader and LCD Interface
Image of park system: A project utilizing button 12x12 in a practical application
This circuit is designed to function as a communication and control system with cellular capabilities, QR code scanning, and display output. It is built around an Arduino UNO microcontroller, interfaced with a SIM900A module, a QR code reader, and an I2C LCD screen, powered by a series of 18650 batteries through a boost converter. Tactile switches provide user interaction, and the Arduino's embedded code controls the operation of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
8-Channel Multiplexer with Pushbutton Inputs and Resistor Network
Image of 8 push pull buttons one mux: A project utilizing button 12x12 in a practical application
This circuit uses a SparkFun 74HC4051 8-Channel Multiplexer to read the states of eight pushbuttons. Each pushbutton is connected to a corresponding input channel on the multiplexer through a 2k Ohm resistor, allowing the multiplexer to sequentially read the button states and output them to a single data line.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled LED Matrix Display with Interactive Pushbuttons
Image of Cykel: A project utilizing button 12x12 in a practical application
This circuit features an Arduino UNO microcontroller connected to multiple 8x8 LED matrix displays and pushbuttons. The pushbuttons are interfaced with digital pins D2, D3, and D4 on the Arduino for input, while the LED matrices are connected to digital pins D5 through D10 for control signals. Additionally, there is a single red LED with a series resistor connected to pin D12, likely used as an indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with button 12x12

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of connect 4: A project utilizing button 12x12 in a practical application
Pushbutton-Controlled Interface with 40-Pin Connector and UBS Power Supply
This circuit consists of a 40-pin connector interfacing with four pushbuttons and a UBS power supply. The pushbuttons are used as inputs to the connector, which then relays the signals to other components or systems. The UBS power supply provides the necessary 24V power to the pushbuttons and the common ground for the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of park system: A project utilizing button 12x12 in a practical application
Arduino UNO GSM Communication Hub with QR Code Reader and LCD Interface
This circuit is designed to function as a communication and control system with cellular capabilities, QR code scanning, and display output. It is built around an Arduino UNO microcontroller, interfaced with a SIM900A module, a QR code reader, and an I2C LCD screen, powered by a series of 18650 batteries through a boost converter. Tactile switches provide user interaction, and the Arduino's embedded code controls the operation of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 8 push pull buttons one mux: A project utilizing button 12x12 in a practical application
8-Channel Multiplexer with Pushbutton Inputs and Resistor Network
This circuit uses a SparkFun 74HC4051 8-Channel Multiplexer to read the states of eight pushbuttons. Each pushbutton is connected to a corresponding input channel on the multiplexer through a 2k Ohm resistor, allowing the multiplexer to sequentially read the button states and output them to a single data line.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Cykel: A project utilizing button 12x12 in a practical application
Arduino UNO Controlled LED Matrix Display with Interactive Pushbuttons
This circuit features an Arduino UNO microcontroller connected to multiple 8x8 LED matrix displays and pushbuttons. The pushbuttons are interfaced with digital pins D2, D3, and D4 on the Arduino for input, while the LED matrices are connected to digital pins D5 through D10 for control signals. Additionally, there is a single red LED with a series resistor connected to pin D12, likely used as an indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • User input for microcontroller-based projects (e.g., Arduino, Raspberry Pi)
  • Control panels for appliances and industrial equipment
  • Prototyping and DIY electronics projects
  • Reset or power buttons in electronic devices

Technical Specifications

The Button 12x12 is designed for ease of use and compatibility with a wide range of circuits. Below are its key specifications:

Parameter Value
Dimensions 12mm x 12mm
Actuation Type Momentary
Operating Voltage 3.3V to 12V
Maximum Current 50mA
Contact Resistance ≤ 100mΩ
Insulation Resistance ≥ 100MΩ at 500V DC
Operating Force 160 ± 50gf
Travel Distance 0.25mm ± 0.1mm
Operating Temperature -25°C to +70°C
Lifespan 100,000 cycles (typical)

Pin Configuration

The Button 12x12 has four pins, arranged in a square configuration. The pins are internally connected in pairs, as shown in the table below:

Pin Number Description
Pin 1 Connected to Pin 2 (internally)
Pin 2 Connected to Pin 1 (internally)
Pin 3 Connected to Pin 4 (internally)
Pin 4 Connected to Pin 3 (internally)

Note: Pins 1 and 2 form one side of the switch, while Pins 3 and 4 form the other side. When the button is pressed, the two sides are electrically connected.

Usage Instructions

How to Use the Button 12x12 in a Circuit

  1. Identify the Pins: Use a multimeter to confirm the pin pairs (Pins 1-2 and Pins 3-4).
  2. Connect to Circuit:
    • Connect one side of the button (e.g., Pins 1 and 2) to the input signal or microcontroller pin.
    • Connect the other side (e.g., Pins 3 and 4) to ground or the desired circuit path.
  3. Debounce the Button: Add a pull-up or pull-down resistor (typically 10kΩ) to stabilize the signal and prevent false triggering due to mechanical bouncing.
  4. Test the Button: Verify the button's operation by pressing it and observing the circuit's response.

Example: Connecting to an Arduino UNO

Below is an example of how to connect and use the Button 12x12 with an Arduino UNO:

Circuit Diagram

  • Connect one side of the button (Pins 1 and 2) to digital pin 2 on the Arduino.
  • Connect the other side (Pins 3 and 4) to ground.
  • Add a 10kΩ pull-up resistor between digital pin 2 and 5V.

Arduino Code

// Button 12x12 Example Code for Arduino UNO
// This code reads the button state and turns on an LED when the button is pressed.

const int buttonPin = 2;  // Pin connected to the button
const int ledPin = 13;    // Pin connected to the onboard LED

void setup() {
  pinMode(buttonPin, INPUT_PULLUP); // Set button pin as input with internal pull-up
  pinMode(ledPin, OUTPUT);          // Set LED pin as output
}

void loop() {
  int buttonState = digitalRead(buttonPin); // Read the button state

  if (buttonState == LOW) { // Button is pressed (LOW due to pull-up resistor)
    digitalWrite(ledPin, HIGH); // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);  // Turn off the LED
  }
}

Best Practices

  • Always use a pull-up or pull-down resistor to avoid floating inputs.
  • For high-reliability applications, consider adding a hardware or software debounce mechanism.
  • Avoid exceeding the maximum voltage and current ratings to prevent damage.

Troubleshooting and FAQs

Common Issues

  1. Button Not Responding:

    • Cause: Incorrect wiring or loose connections.
    • Solution: Double-check the wiring and ensure all connections are secure.
  2. Button Bounces (Multiple Triggers):

    • Cause: Mechanical bouncing of the button contacts.
    • Solution: Add a debounce circuit or implement software debounce in your code.
  3. Button Stuck or Hard to Press:

    • Cause: Physical damage or debris inside the button.
    • Solution: Inspect the button for damage or clean it carefully. Replace if necessary.
  4. Incorrect Pin Behavior:

    • Cause: Misidentified pin pairs or faulty button.
    • Solution: Use a multimeter to verify pin connections and replace the button if needed.

FAQs

Q: Can I use the Button 12x12 with a 5V circuit?
A: Yes, the Button 12x12 is compatible with 5V circuits, as its operating voltage range is 3.3V to 12V.

Q: Do I need an external pull-up resistor if using an Arduino?
A: No, you can use the Arduino's internal pull-up resistor by configuring the pin as INPUT_PULLUP.

Q: How do I debounce the button in software?
A: You can use a delay or a state-change detection algorithm in your code to filter out bouncing signals.

Q: Can the Button 12x12 handle AC signals?
A: No, the Button 12x12 is designed for low-voltage DC applications only. Avoid using it with AC signals.

By following this documentation, you can effectively integrate the Button 12x12 into your projects and troubleshoot any issues that arise.
