How to Use DC-DC Buck LM2596 3A LED: Examples, Pinouts, and Specs

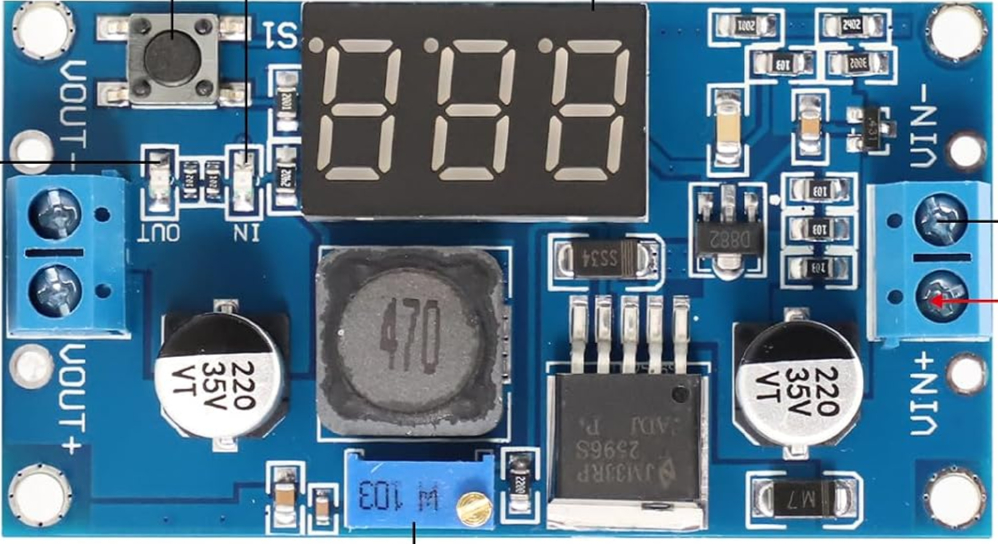

The DC-DC Buck LM2596 3A LED module is a step-down voltage regulator designed to efficiently convert a higher input voltage to a lower output voltage. It is based on the LM2596 chip, which is known for its high efficiency and reliability. This module is equipped with an onboard LED display that shows the output voltage, making it convenient for real-time monitoring.

• Powering low-voltage devices from a higher-voltage source (e.g., 12V to 5V conversion)
• Battery-powered systems to regulate voltage
• DIY electronics projects
• Arduino and microcontroller-based applications
• LED lighting systems

• Input Voltage Range: 4V to 40V DC
• Output Voltage Range: 1.25V to 37V DC (adjustable via potentiometer)
• Maximum Output Current: 3A (with proper heat dissipation)
• Efficiency: Up to 92%
• Output Voltage Display: 3-digit 7-segment LED display
• Switching Frequency: 150 kHz
• Operating Temperature: -40°C to +85°C
• Dimensions: Approximately 50mm x 26mm x 14mm

1. Connect the Input Voltage:

   • Attach the positive terminal of your power source to the VIN+ pin.
   • Attach the ground terminal of your power source to the VIN- pin.
   • Ensure the input voltage is within the range of 4V to 40V DC.

2. Connect the Output Load:

   • Connect the positive terminal of your load to the VOUT+ pin.
   • Connect the ground terminal of your load to the VOUT- pin.

3. Adjust the Output Voltage:

   • Use the onboard potentiometer to adjust the output voltage.
   • Turn the potentiometer clockwise to increase the voltage and counterclockwise to decrease it.
   • Monitor the output voltage on the LED display.

4. Verify Connections:

   • Double-check all connections before powering the module.
   • Ensure the load does not exceed the maximum current rating of 3A.

• Heat Dissipation: If the module is used at high currents (above 2A), attach a heatsink to the LM2596 chip to prevent overheating.
• Input Voltage: Always ensure the input voltage is at least 1.5V higher than the desired output voltage for proper regulation.
• Polarity: Double-check the polarity of the input and output connections to avoid damaging the module.
• Load Testing: Gradually increase the load to ensure the module operates within its rated specifications.

The LM2596 module can be used to power an Arduino UNO from a 12V source by stepping down the voltage to 5V. Below is an example code to read the voltage from an analog pin if you connect the output of the LM2596 to the Arduino's 5V pin.

// Example code to read and display voltage on Arduino UNO
// Connect the LM2596 output to the Arduino 5V pin for power

const int voltagePin = A0; // Analog pin connected to the voltage divider
float voltage = 0.0;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int sensorValue = analogRead(voltagePin); // Read the analog input
  voltage = sensorValue * (5.0 / 1023.0);   // Convert to voltage
  Serial.print("Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");
  delay(1000); // Wait for 1 second
}

Note: Use a voltage divider if you need to measure voltages higher than 5V with the Arduino.

1. No Output Voltage:

   • Check the input voltage and ensure it is within the specified range.
   • Verify the polarity of the input and output connections.
   • Ensure the potentiometer is not set to the minimum voltage.

2. Overheating:

   • Attach a heatsink to the LM2596 chip if the current exceeds 2A.
   • Reduce the load current if possible.

3. LED Display Not Working:

   • Ensure the module is receiving power.
   • Check for loose connections or damaged components.

4. Output Voltage Fluctuations:

   • Verify that the input voltage is stable.
   • Check for loose connections or a faulty potentiometer.

• Can I use this module to charge batteries?

  • Yes, but ensure the output voltage is set to match the battery's charging voltage, and use a current-limiting circuit if necessary.

• What happens if I exceed the maximum input voltage?

  • Exceeding 40V may damage the module permanently. Always stay within the specified range.

• Can I use this module with an AC power source?

  • No, the module requires a DC input. Use a rectifier and filter circuit to convert AC to DC before connecting.

• Is the output voltage adjustable while the module is running?

  • Yes, you can adjust the potentiometer in real-time, but do so carefully to avoid sudden voltage changes that may damage your load.
