How to Use Potentiometer: Examples, Pinouts, and Specs

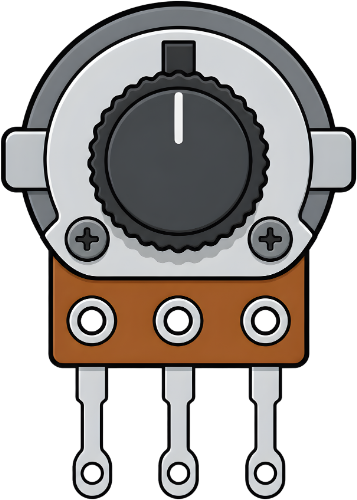

Image of Potentiometer
Cirkit Designer LogoDesign with Potentiometer in Cirkit Designer

Introduction

A potentiometer is a variable resistor that allows users to adjust voltage levels in a circuit. By varying its resistance, it enables control over current flow and signal levels. Potentiometers are widely used in applications such as volume controls, light dimmers, and as input devices for microcontrollers like Arduino. They are essential components in both analog and digital electronics for fine-tuning and calibration.

Explore Projects Built with Potentiometer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino 101 Analog Input Control with Trimmer Potentiometer
Image of Analog read potentiometer: A project utilizing Potentiometer in a practical application
This circuit features an Arduino 101 connected to a trimmer potentiometer. The potentiometer is used as a voltage divider, with one end connected to the Arduino's VIN for power, the wiper connected to analog input A0 for variable voltage reading, and the other end connected to GND. This setup allows the Arduino to read the position of the potentiometer's wiper as an analog value.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Potentiometer Analog Input Project
Image of lesson 7: A project utilizing Potentiometer in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a potentiometer. The potentiometer's VCC and GND pins are connected to the 5V and GND pins of the Arduino, respectively, and its output is connected to the A1 analog input pin of the Arduino, allowing the Arduino to read varying voltage levels from the potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO R4 WiFi Analog Input with Potentiometer
Image of potentiometer: A project utilizing Potentiometer in a practical application
This circuit consists of a potentiometer connected to an Arduino UNO R4 WiFi. The potentiometer's ground and VCC are connected to the Arduino's ground and 5V pins, respectively, and its output is connected to the Arduino's analog input A0. The purpose of this circuit is likely to read the variable resistance from the potentiometer as an analog voltage, which can be used by the Arduino for various control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Analog Input with Trimmer Potentiometer
Image of Potenciometer: A project utilizing Potentiometer in a practical application
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer's adjustable output is fed into the Arduino's analog input A0 for voltage measurement, enabling the microcontroller to monitor or control an analog parameter.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Potentiometer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Analog read potentiometer: A project utilizing Potentiometer in a practical application
Arduino 101 Analog Input Control with Trimmer Potentiometer
This circuit features an Arduino 101 connected to a trimmer potentiometer. The potentiometer is used as a voltage divider, with one end connected to the Arduino's VIN for power, the wiper connected to analog input A0 for variable voltage reading, and the other end connected to GND. This setup allows the Arduino to read the position of the potentiometer's wiper as an analog value.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lesson 7: A project utilizing Potentiometer in a practical application
Arduino UNO Potentiometer Analog Input Project
This circuit consists of an Arduino UNO microcontroller connected to a potentiometer. The potentiometer's VCC and GND pins are connected to the 5V and GND pins of the Arduino, respectively, and its output is connected to the A1 analog input pin of the Arduino, allowing the Arduino to read varying voltage levels from the potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of potentiometer: A project utilizing Potentiometer in a practical application
Arduino UNO R4 WiFi Analog Input with Potentiometer
This circuit consists of a potentiometer connected to an Arduino UNO R4 WiFi. The potentiometer's ground and VCC are connected to the Arduino's ground and 5V pins, respectively, and its output is connected to the Arduino's analog input A0. The purpose of this circuit is likely to read the variable resistance from the potentiometer as an analog voltage, which can be used by the Arduino for various control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Potenciometer: A project utilizing Potentiometer in a practical application
Arduino UNO Analog Input with Trimmer Potentiometer
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer's adjustable output is fed into the Arduino's analog input A0 for voltage measurement, enabling the microcontroller to monitor or control an analog parameter.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

  • Type: Rotary or Linear
  • Resistance Range: Typically 1 kΩ to 1 MΩ (varies by model)
  • Power Rating: 0.1 W to 2 W (depending on size and type)
  • Tolerance: ±10% to ±20%
  • Adjustment Type: Rotary knob or sliding mechanism
  • Lifespan: 10,000 to 1,000,000 cycles (varies by quality)

Pin Configuration and Descriptions

Potentiometers typically have three pins. The table below describes their functions:

Pin Number Name Description
1 Terminal 1 One end of the resistive track. Connect to the voltage source or ground.
2 Wiper The adjustable middle pin. Outputs the variable voltage based on position.
3 Terminal 2 The other end of the resistive track. Connect to ground or voltage source.

Usage Instructions

How to Use the Potentiometer in a Circuit

  1. Basic Voltage Divider:

    • Connect Terminal 1 to the voltage source (e.g., 5V).
    • Connect Terminal 3 to ground (GND).
    • The Wiper (Terminal 2) will output a variable voltage between 0V and the source voltage, depending on the knob's position.
  2. Current Control:

    • Place the potentiometer in series with a load to control the current flowing through the load.
  3. Microcontroller Input:

    • Connect the Wiper (Terminal 2) to an analog input pin of a microcontroller (e.g., Arduino).
    • Use the potentiometer to provide an adjustable input signal.

Important Considerations and Best Practices

  • Power Rating: Ensure the potentiometer's power rating is not exceeded to avoid overheating or damage.
  • Mechanical Stress: Avoid applying excessive force to the knob or slider to prevent wear and tear.
  • Debouncing: When used as an input device, consider software debouncing to handle noise or fluctuations in the signal.
  • Connection: Always double-check connections to avoid short circuits or incorrect voltage levels.

Example: Using a Potentiometer with Arduino UNO

Below is an example of how to use a potentiometer to control the brightness of an LED using an Arduino UNO:

// Define pin connections
const int potPin = A0;  // Potentiometer connected to analog pin A0
const int ledPin = 9;   // LED connected to digital pin 9 (PWM capable)

void setup() {
  pinMode(ledPin, OUTPUT);  // Set LED pin as output
}

void loop() {
  int potValue = analogRead(potPin);  // Read the potentiometer value (0-1023)

  // Map the potentiometer value to a PWM range (0-255)
  int ledBrightness = map(potValue, 0, 1023, 0, 255);

  analogWrite(ledPin, ledBrightness);  // Set LED brightness
}

Troubleshooting and FAQs

Common Issues

  1. No Output Voltage:

    • Cause: Incorrect wiring or loose connections.
    • Solution: Verify that Terminal 1 and Terminal 3 are connected to the voltage source and ground, respectively.
  2. Inconsistent or Noisy Output:

    • Cause: Worn-out resistive track or dirty contacts.
    • Solution: Clean the potentiometer with contact cleaner or replace it if worn out.
  3. Overheating:

    • Cause: Exceeding the power rating.
    • Solution: Use a potentiometer with a higher power rating or reduce the current in the circuit.

FAQs

  • Q: Can I use a potentiometer to directly control a motor?
    A: No, most potentiometers cannot handle the high current required by motors. Use a motor driver or transistor circuit instead.

  • Q: What is the difference between a linear and logarithmic potentiometer?
    A: A linear potentiometer changes resistance uniformly, while a logarithmic potentiometer changes resistance exponentially, often used in audio applications.

  • Q: How do I know the resistance value of my potentiometer?
    A: The resistance value is usually printed on the body of the potentiometer (e.g., "10k" for 10 kΩ). You can also measure it with a multimeter.
