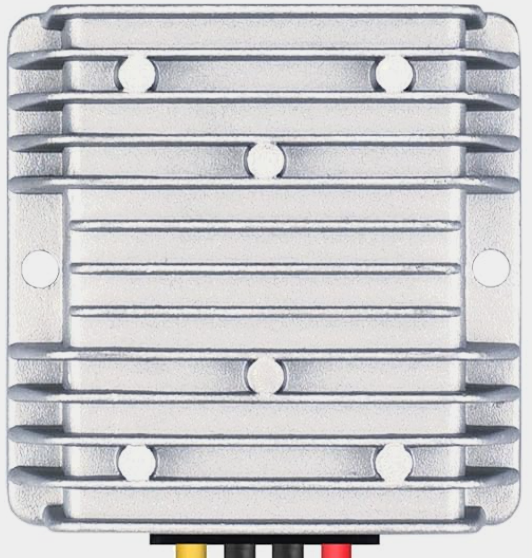

The 6-24V DC to 13.8V DC Converter is a versatile electronic device designed to step down a DC input voltage within the range of 6 to 24 volts to a stable output of 13.8 volts. This converter is widely used in power supply applications where a consistent 13.8V output is required, such as powering communication equipment, automotive electronics, and battery charging systems. Its compact design and high efficiency make it an essential component in various DC power systems.
Explore Projects Built with 6-24V DC to 13.8V DC Converter
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Providing a stable voltage for sensitive electronic equipment
Use in solar power systems to regulate voltage
Technical Specifications
The following table outlines the key technical details of the 6-24V DC to 13.8V DC Converter:
Parameter
Specification
Input Voltage Range
6V to 24V DC
Output Voltage
13.8V DC (regulated)
Maximum Output Current
5A (varies by model)
Efficiency
Up to 90%
Ripple and Noise
< 50mV
Operating Temperature
-20°C to +60°C
Protection Features
Overcurrent, Overvoltage, Overheat
Dimensions
Varies by model (e.g., 70x50x30 mm)
Weight
Approximately 100g
Pin Configuration and Descriptions
The converter typically has the following input and output connections:
Pin/Terminal
Description
VIN+
Positive DC input (6-24V)
VIN-
Negative DC input (ground)
VOUT+
Positive DC output (13.8V)
VOUT-
Negative DC output (ground)
Usage Instructions
How to Use the Component in a Circuit
Connect the Input Voltage:
Attach the VIN+ terminal to the positive terminal of your DC power source (6-24V).
Connect the VIN- terminal to the ground of your DC power source.
Connect the Output Load:
Attach the VOUT+ terminal to the positive terminal of the device or load requiring 13.8V.
Connect the VOUT- terminal to the ground of the load.
Power On:
Ensure all connections are secure and power on the DC source. The converter will regulate the input voltage to provide a stable 13.8V output.
Important Considerations and Best Practices
Input Voltage Range: Ensure the input voltage is within the specified range (6-24V). Exceeding this range may damage the converter.
Current Rating: Do not exceed the maximum output current rating (e.g., 5A). Use a load that matches the converter's capacity.
Heat Dissipation: The converter may generate heat during operation. Ensure adequate ventilation or use a heatsink if necessary.
Polarity: Double-check the polarity of all connections to avoid damage to the converter or connected devices.
Protection Features: The converter includes built-in protection for overcurrent, overvoltage, and overheating. However, avoid prolonged operation near the limits of its specifications.
Example: Using with an Arduino UNO
The 6-24V DC to 13.8V DC Converter can be used to power an Arduino UNO by stepping down a higher voltage source (e.g., a 24V battery) to a safe 13.8V. Below is an example circuit and code:
Circuit Setup
Connect the VIN+ and VIN- terminals of the converter to a 24V DC power source.
Connect the VOUT+ terminal to the Arduino UNO's VIN pin.
Connect the VOUT- terminal to the Arduino UNO's GND pin.
Example Code
// Example code for Arduino UNO powered by a 6-24V to 13.8V DC Converter
// This code blinks an LED connected to pin 13
void setup() {
pinMode(13, OUTPUT); // Set pin 13 as an output for the LED
}
void loop() {
digitalWrite(13, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(13, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
No Output Voltage:
Cause: Incorrect input connections or insufficient input voltage.
Solution: Verify the input voltage is within the 6-24V range and check the polarity of the connections.
Overheating:
Cause: Excessive load or poor ventilation.
Solution: Reduce the load current or improve airflow around the converter.
Output Voltage Fluctuations:
Cause: Input voltage instability or excessive ripple.
Solution: Use a stable DC power source and ensure proper grounding.
Converter Not Powering On:
Cause: Blown fuse or internal damage.
Solution: Check for a replaceable fuse or inspect for visible damage. Replace the unit if necessary.
FAQs
Q: Can I use this converter to charge a 12V battery? A: Yes, the 13.8V output is suitable for charging 12V lead-acid batteries. However, monitor the charging current to avoid overcharging.
Q: Is the converter waterproof? A: Most models are not waterproof. Use in a dry environment or enclose the converter in a waterproof case if needed.
Q: Can I use this converter with a solar panel? A: Yes, as long as the solar panel's output voltage is within the 6-24V range. Ensure the panel provides sufficient current for your load.
Q: What happens if I reverse the input polarity? A: Many converters include reverse polarity protection, but it is best to avoid this scenario as it may damage the device.
This documentation provides a comprehensive guide to using the 6-24V DC to 13.8V DC Converter effectively and safely.
