How to Use ESP32-S3 N16R8: Examples, Pinouts, and Specs

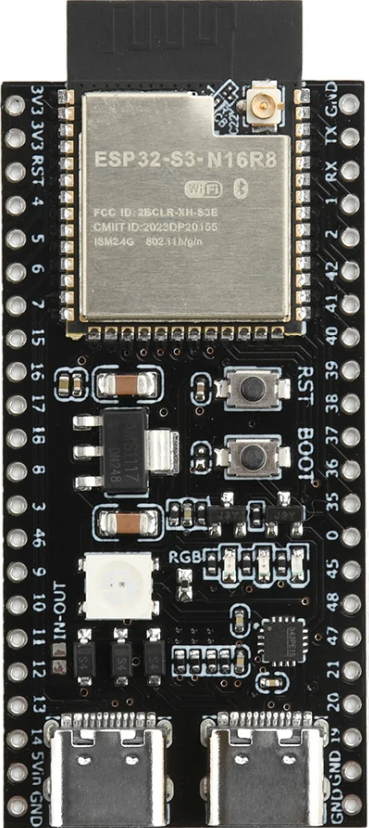

Image of ESP32-S3 N16R8
Cirkit Designer LogoDesign with ESP32-S3 N16R8 in Cirkit Designer

Introduction

The ESP32-S3 N16R8 is a powerful microcontroller designed for advanced IoT applications and complex processing tasks. It features integrated Wi-Fi and Bluetooth connectivity, making it an excellent choice for wireless communication projects. With 16MB of flash memory and 8MB of RAM, the ESP32-S3 N16R8 is capable of handling resource-intensive applications, such as machine learning, image processing, and real-time data analysis.

Explore Projects Built with ESP32-S3 N16R8

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-S3 GPS and Wind Speed Logger with Dual OLED Displays and CAN Bus
Image of esp32-s3-ellipse: A project utilizing ESP32-S3 N16R8 in a practical application
This circuit features an ESP32-S3 microcontroller interfaced with an SD card module, two OLED displays, a GPS module, and a CAN bus module. The ESP32-S3 records GPS data to the SD card, displays speed on one OLED, and shows wind speed from the CAN bus on the other OLED, providing a comprehensive data logging and display system.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 GPS Logger and Wind Speed Display with Dual OLED and CAN Bus
Image of Copy of esp32-s3-ellipse: A project utilizing ESP32-S3 N16R8 in a practical application
This circuit features an ESP32-S3 microcontroller interfaced with an SD card, two OLED displays, a GPS module, and a CAN bus module. It records GPS data to the SD card every second, displays speed in knots on one OLED display, and shows wind speed from the CAN bus in NMEA 2000 format on the other OLED display.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 Based Environmental Monitoring and Control System with Data Logging
Image of ESP32: A project utilizing ESP32-S3 N16R8 in a practical application
This circuit features an ESP32-S3 microcontroller interfaced with various sensors and modules, including a DHT22 temperature and humidity sensor, an HC-SR04 ultrasonic sensor, an SGP41 VOC and NOx sensor, and an Adafruit INA260 current and power sensor. The ESP32-S3 also controls a DC motor via a relay and communicates with an SD card and an OLED display. An Arduino UNO is used to read inputs from a rotary encoder, and a step-down buck converter is used to regulate voltage from a 12V battery to power the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing ESP32-S3 N16R8 in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32-S3 N16R8

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of esp32-s3-ellipse: A project utilizing ESP32-S3 N16R8 in a practical application
ESP32-S3 GPS and Wind Speed Logger with Dual OLED Displays and CAN Bus
This circuit features an ESP32-S3 microcontroller interfaced with an SD card module, two OLED displays, a GPS module, and a CAN bus module. The ESP32-S3 records GPS data to the SD card, displays speed on one OLED, and shows wind speed from the CAN bus on the other OLED, providing a comprehensive data logging and display system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of esp32-s3-ellipse: A project utilizing ESP32-S3 N16R8 in a practical application
ESP32-S3 GPS Logger and Wind Speed Display with Dual OLED and CAN Bus
This circuit features an ESP32-S3 microcontroller interfaced with an SD card, two OLED displays, a GPS module, and a CAN bus module. It records GPS data to the SD card every second, displays speed in knots on one OLED display, and shows wind speed from the CAN bus in NMEA 2000 format on the other OLED display.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32: A project utilizing ESP32-S3 N16R8 in a practical application
ESP32-S3 Based Environmental Monitoring and Control System with Data Logging
This circuit features an ESP32-S3 microcontroller interfaced with various sensors and modules, including a DHT22 temperature and humidity sensor, an HC-SR04 ultrasonic sensor, an SGP41 VOC and NOx sensor, and an Adafruit INA260 current and power sensor. The ESP32-S3 also controls a DC motor via a relay and communicates with an SD card and an OLED display. An Arduino UNO is used to read inputs from a rotary encoder, and a step-down buck converter is used to regulate voltage from a 12V battery to power the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of gps projekt circuit: A project utilizing ESP32-S3 N16R8 in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Machine learning and AI at the edge
  • Real-time audio and video processing
  • Industrial automation and robotics
  • Wearable devices and health monitoring systems

Technical Specifications

The ESP32-S3 N16R8 is packed with features that make it versatile and powerful. Below are its key technical specifications:

General Specifications

Feature Specification
Processor Dual-core Xtensa LX7 @ 240 MHz
Flash Memory 16MB
RAM 8MB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 5.0 LE
Operating Voltage 3.0V to 3.6V
GPIO Pins 45
ADC Channels 20
Communication Interfaces UART, SPI, I2C, I2S, CAN, Ethernet
Power Consumption Ultra-low power in deep sleep mode

Pin Configuration and Descriptions

The ESP32-S3 N16R8 comes in a compact package with multiple GPIO pins and peripheral interfaces. Below is a summary of the pin configuration:

Pin Number Pin Name Description
1 GND Ground
2 3V3 3.3V Power Supply
3 EN Enable Pin (Active High)
4 IO0 GPIO0, used for boot mode selection
5 IO1 GPIO1, UART TX
6 IO2 GPIO2, ADC2 Channel 2
7 IO3 GPIO3, UART RX
... ... ... (Refer to the full datasheet)
45 IO44 GPIO44, ADC2 Channel 10

Note: For a complete pinout diagram and detailed descriptions, refer to the official ESP32-S3 datasheet.

Usage Instructions

The ESP32-S3 N16R8 is highly versatile and can be used in a variety of applications. Below are the steps to get started with this microcontroller:

Basic Setup

  1. Power the ESP32-S3 N16R8: Connect the 3V3 pin to a 3.3V power source and GND to ground.
  2. Connect to a Computer: Use a USB-to-serial adapter to connect the ESP32-S3 to your computer for programming.
  3. Install Development Tools:
    • Download and install the Arduino IDE or ESP-IDF (Espressif IoT Development Framework).
    • Add the ESP32 board package to the Arduino IDE via the Board Manager.

Example: Blinking an LED

The following example demonstrates how to blink an LED connected to GPIO2 using the Arduino IDE:

// Define the GPIO pin where the LED is connected
#define LED_PIN 2

void setup() {
  // Initialize the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

Important Considerations

  • Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the ESP32-S3.
  • Boot Mode: GPIO0 must be pulled low during boot to enter programming mode.
  • Power Supply: Use a stable power source to prevent unexpected resets or malfunctions.

Troubleshooting and FAQs

Common Issues

  1. ESP32-S3 Not Detected by Computer:

    • Ensure the USB-to-serial adapter drivers are installed.
    • Check the USB cable for data transfer capability (some cables are power-only).
  2. Program Upload Fails:

    • Verify that GPIO0 is pulled low during programming.
    • Check the selected COM port and board type in the Arduino IDE.
  3. Wi-Fi Connection Issues:

    • Double-check the SSID and password in your code.
    • Ensure the ESP32-S3 is within range of the Wi-Fi router.

FAQs

Q: Can I use the ESP32-S3 N16R8 with a 5V power supply?
A: No, the ESP32-S3 operates at 3.3V. Using a 5V power supply without a regulator can damage the chip.

Q: How do I reset the ESP32-S3?
A: Press the EN (Enable) button on the board to reset the microcontroller.

Q: Can I use the ESP32-S3 for Bluetooth audio streaming?
A: Yes, the ESP32-S3 supports Bluetooth 5.0 LE and can handle audio streaming applications.

Q: What is the maximum number of GPIO pins I can use?
A: The ESP32-S3 N16R8 has 45 GPIO pins, but some may be reserved for specific functions depending on your application.

By following this documentation, you can effectively utilize the ESP32-S3 N16R8 for a wide range of projects. For more advanced features, refer to the official Espressif documentation.
