How to Use Raspberry Pi Pico W: Examples, Pinouts, and Specs

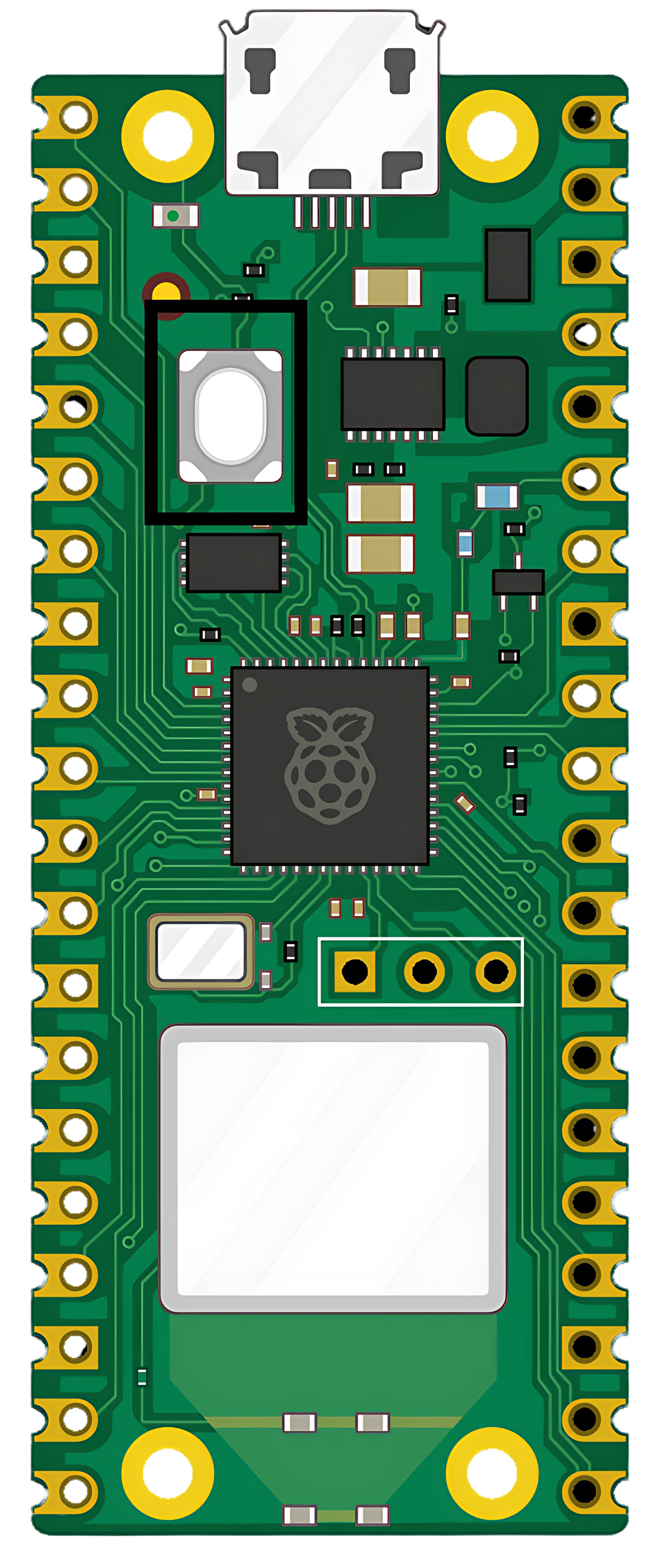

Image of Raspberry Pi Pico W
Cirkit Designer LogoDesign with Raspberry Pi Pico W in Cirkit Designer

Introduction

The Raspberry Pi Pico W is a compact and affordable microcontroller board that extends the capabilities of the original Raspberry Pi Pico by adding wireless connectivity. Based on the RP2040 microcontroller chip developed by the Raspberry Pi Foundation, the Pico W is designed for a wide range of applications, from IoT devices and home automation to educational projects and prototyping. Its Wi-Fi capabilities enable it to connect to the internet or local networks, making it an ideal choice for projects that require remote data access, control, or monitoring.

Explore Projects Built with Raspberry Pi Pico W

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Wi-Fi Controlled RGB Lighting with Raspberry Pi Pico W
Image of Smart Home Automation 1: A project utilizing Raspberry Pi Pico W in a practical application
This circuit features a Raspberry Pi Pico W microcontroller connected to an RGB LED through GPIO pins GP17, GP18, and GP19 for controlling the blue, green, and red channels, respectively. A resistor is connected between the 3V3 OUT pin of the Pico and the common cathode of the RGB LED to limit the current. The embedded code suggests the Pico W is configured for Wi-Fi connectivity and MQTT communication to control the LED and possibly other peripherals not shown in the circuit, with additional functionality for sensor monitoring and display output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi Pico W RGB LED Controller with Resistors
Image of RGB LED: A project utilizing Raspberry Pi Pico W in a practical application
This circuit uses a Raspberry Pi Pico W to control an RGB LED through three 220-ohm resistors connected to its GPIO pins. The Pico W provides 3.3V power to the common anode of the RGB LED, allowing for color control via the GPIO pins GP13, GP14, and GP15.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi Pico W-Based Smart Home Automation System with Motion Detection and Environmental Monitoring
Image of Smart Home Automation 1: A project utilizing Raspberry Pi Pico W in a practical application
This circuit features a Raspberry Pi Pico W microcontroller connected to various sensors and actuators, including a DHT11 temperature and humidity sensor, an RCWL-0516 microwave radar motion sensor, a photocell (LDR) with a resistor for light detection, and a two-channel relay controlling a bulb and a fan. The microcontroller runs code to monitor environmental conditions and motion, displaying information on an LCD and allowing remote control via MQTT messages over Wi-Fi. It supports both automatic sensor-based operation and remote app control, with pushbuttons to switch between modes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual Raspberry Pi Pico W Communication System
Image of html led: A project utilizing Raspberry Pi Pico W in a practical application
This circuit consists of two Raspberry Pi Pico W microcontrollers interconnected via their pin 1 and pin 2. Both microcontrollers are programmed with basic setup and loop functions, but no specific functionality is defined in the provided code.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Raspberry Pi Pico W

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Smart Home Automation 1: A project utilizing Raspberry Pi Pico W in a practical application
Wi-Fi Controlled RGB Lighting with Raspberry Pi Pico W
This circuit features a Raspberry Pi Pico W microcontroller connected to an RGB LED through GPIO pins GP17, GP18, and GP19 for controlling the blue, green, and red channels, respectively. A resistor is connected between the 3V3 OUT pin of the Pico and the common cathode of the RGB LED to limit the current. The embedded code suggests the Pico W is configured for Wi-Fi connectivity and MQTT communication to control the LED and possibly other peripherals not shown in the circuit, with additional functionality for sensor monitoring and display output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RGB LED: A project utilizing Raspberry Pi Pico W in a practical application
Raspberry Pi Pico W RGB LED Controller with Resistors
This circuit uses a Raspberry Pi Pico W to control an RGB LED through three 220-ohm resistors connected to its GPIO pins. The Pico W provides 3.3V power to the common anode of the RGB LED, allowing for color control via the GPIO pins GP13, GP14, and GP15.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart Home Automation 1: A project utilizing Raspberry Pi Pico W in a practical application
Raspberry Pi Pico W-Based Smart Home Automation System with Motion Detection and Environmental Monitoring
This circuit features a Raspberry Pi Pico W microcontroller connected to various sensors and actuators, including a DHT11 temperature and humidity sensor, an RCWL-0516 microwave radar motion sensor, a photocell (LDR) with a resistor for light detection, and a two-channel relay controlling a bulb and a fan. The microcontroller runs code to monitor environmental conditions and motion, displaying information on an LCD and allowing remote control via MQTT messages over Wi-Fi. It supports both automatic sensor-based operation and remote app control, with pushbuttons to switch between modes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of html led: A project utilizing Raspberry Pi Pico W in a practical application
Dual Raspberry Pi Pico W Communication System
This circuit consists of two Raspberry Pi Pico W microcontrollers interconnected via their pin 1 and pin 2. Both microcontrollers are programmed with basic setup and loop functions, but no specific functionality is defined in the provided code.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices
  • Home automation systems
  • Remote sensors and data logging
  • Educational tools for learning programming and electronics
  • Prototyping for embedded systems
  • Wireless communication projects

Technical Specifications

Key Technical Details

  • Microcontroller: RP2040
  • CPU: Dual-core ARM Cortex-M0+ processor
  • Clock Speed: Up to 133 MHz
  • RAM: 264KB on-chip SRAM
  • Onboard Storage: 2MB of onboard Flash memory
  • Wireless Connectivity: 2.4 GHz 802.11n Wi-Fi
  • GPIO Pins: 26 multi-function GPIO pins
  • ADC Channels: 3 analog inputs
  • Interfaces: UART, SPI, I2C, PWM, and USB 1.1
  • Power Supply: 5V via micro-USB port or external source
  • Operating Temperature: -20°C to +85°C

Pin Configuration and Descriptions

Pin Number Name Type Description
1-20 GP0-GP19 GPIO General-purpose input/output pins
21 RUN Input Reset pin, active low
22 GND Power Ground connection
23 3V3_EN Input Enable 3.3V power supply
24 3V3_OUT Power 3.3V output from onboard regulator
25-40 GP20-GP29, ADC0-ADC2, AGND GPIO/ADC Additional GPIO and analog inputs
39 VSYS Power Input power supply (1.8V-5.5V)
40 VBUS Power USB input voltage (5V)

Usage Instructions

How to Use the Component in a Circuit

  1. Powering the Pico W: Connect the micro-USB port to a 5V USB power source or provide power through the VSYS pin.
  2. Connecting to Wi-Fi: Use the onboard wireless capabilities to connect to a Wi-Fi network for internet access or local network communication.
  3. Interfacing with Sensors and Actuators: Utilize the GPIO pins to connect sensors, actuators, or other electronic components.
  4. Programming the Pico W: Use the micro-USB connection to program the Pico W with software such as Thonny or the Arduino IDE.

Important Considerations and Best Practices

  • Ensure that the power supply is within the specified range to avoid damaging the board.
  • When handling the board, take precautions against electrostatic discharge (ESD).
  • Avoid applying more than 3.3V to any GPIO pin.
  • Use proper decoupling capacitors when connecting power-hungry devices to the Pico W.
  • Always safely disconnect the Pico W from your computer before connecting or disconnecting external components.

Troubleshooting and FAQs

Common Issues Users Might Face

  • Wi-Fi Connection Issues: Ensure that the Wi-Fi network credentials are correct and that the network is within range.
  • Power Supply Problems: Verify that the power source is stable and within the specified voltage range.
  • Programming Errors: Check for syntax errors in the code and ensure that the correct board and port are selected in the programming software.

Solutions and Tips for Troubleshooting

  • Resetting the Board: If the Pico W becomes unresponsive, momentarily connect the RUN pin to GND to reset the board.
  • Firmware Updates: Keep the Pico W firmware up to date to ensure compatibility with the latest features and fixes.
  • Community Support: Consult the Raspberry Pi forums and community resources for additional help and advice.

Example Code for Arduino UNO

The Raspberry Pi Pico W is not typically used with an Arduino UNO, as it is a standalone microcontroller. However, it can be programmed using the Arduino IDE with the appropriate board support package installed. Below is an example of how to blink an LED using the Arduino IDE:

// Define the LED pin
const int LED_PIN = 25; // Onboard LED pin on the Raspberry Pi Pico W

void setup() {
  // Initialize the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second
  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

Remember to select the correct board and port in the Arduino IDE before uploading the code to the Raspberry Pi Pico W.

For more detailed information, refer to the official Raspberry Pi Pico W documentation and datasheets.
