How to Use Arduino Uno (Rev3) - ICSP: Examples, Pinouts, and Specs

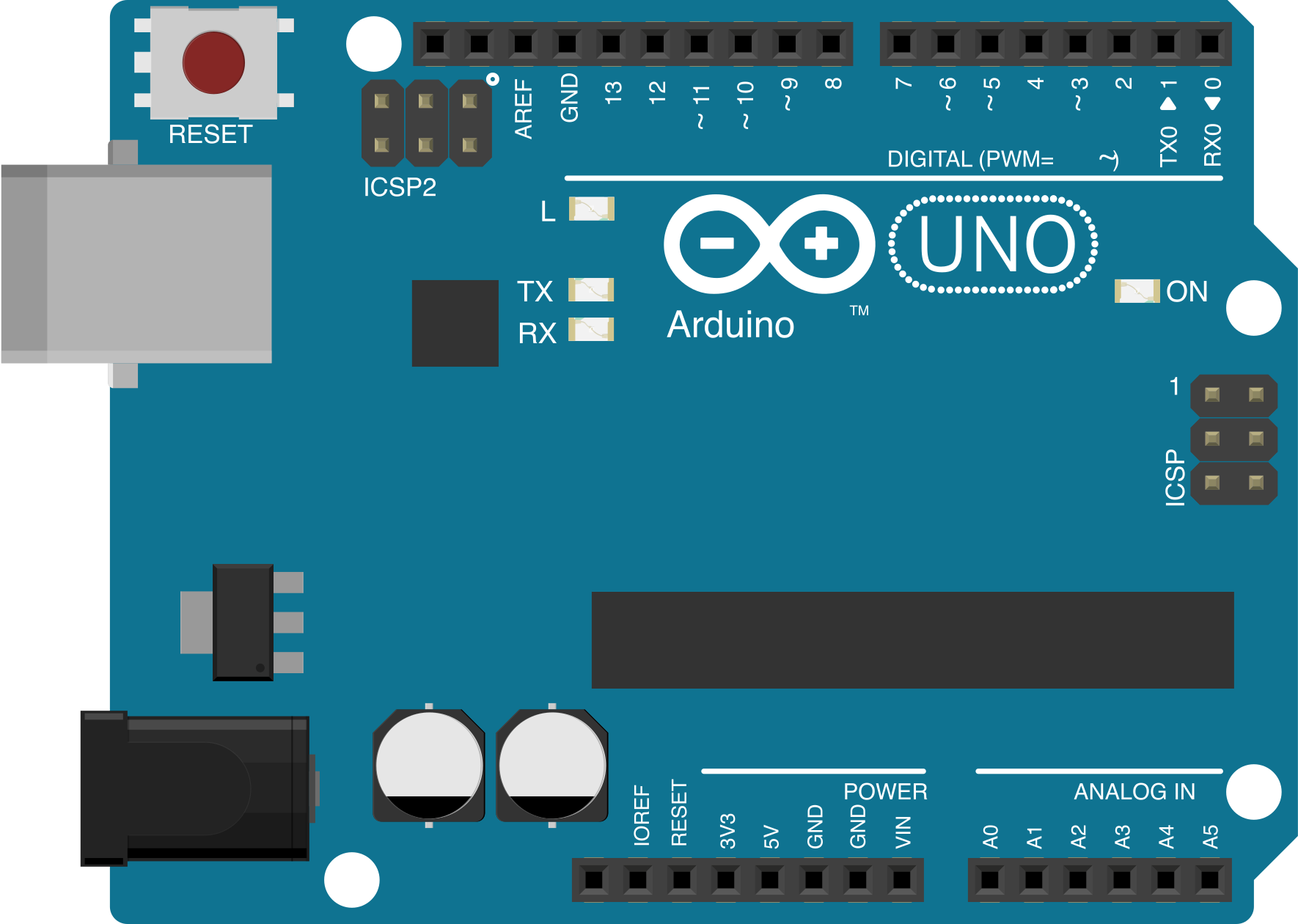

The Arduino Uno (Rev3) is a microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is a versatile and widely used platform for prototyping and developing interactive electronic projects. One of its key features is the In-Circuit Serial Programming (ICSP) header, which allows users to program the microcontroller directly using an external programmer. This feature is particularly useful for advanced users who need to bypass the bootloader or program the microcontroller in a standalone environment.

• Embedded systems development
• Robotics and automation projects
• IoT (Internet of Things) devices
• Educational purposes for learning microcontroller programming
• Firmware development and debugging

• Microcontroller: ATmega328P
• Operating Voltage: 5V
• Input Voltage (recommended): 7-12V
• Input Voltage (limit): 6-20V
• Digital I/O Pins: 14 (6 PWM outputs)
• Analog Input Pins: 6
• DC Current per I/O Pin: 20 mA
• Flash Memory: 32 KB (0.5 KB used by bootloader)
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz
• ICSP Header: 6-pin header for direct programming

The ICSP header on the Arduino Uno (Rev3) consists of six pins arranged in a 2x3 configuration. Below is the pinout and description:

1. Connect an External Programmer:

   • Use an external programmer (e.g., USBasp, AVRISP mkII) and connect it to the ICSP header on the Arduino Uno (Rev3).
   • Ensure the pin alignment matches the ICSP header pinout.

2. Install Required Software:

   • Install the Arduino IDE or AVR programming tools on your computer.
   • If using the Arduino IDE, select the correct board and programmer under the "Tools" menu.

3. Upload Code via ICSP:

   • Open your sketch in the Arduino IDE or prepare your firmware file.
   • Select "Burn Bootloader" if you need to reprogram the bootloader.
   • Use the "Upload Using Programmer" option to upload your code directly to the microcontroller.

4. Power the Board:

   • Ensure the Arduino Uno is powered either via USB or an external power source during programming.

• Avoid Simultaneous USB and ICSP Programming: Disconnect the USB cable when using the ICSP header to prevent power conflicts.
• Verify Connections: Double-check the pin alignment between the programmer and the ICSP header to avoid damaging the board or programmer.
• Use a Stable Power Source: Ensure the board is powered by a stable 5V supply during programming to prevent errors.
• Bootloader Overwrite: Programming via ICSP will overwrite the bootloader. If you need the bootloader, re-burn it after programming.

Below is an example sketch that can be uploaded to the Arduino Uno (Rev3) using the ICSP header:

// Blink LED example for Arduino Uno (Rev3)
// This code blinks the onboard LED connected to pin 13.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

To upload this code via ICSP:

1. Save the sketch in the Arduino IDE.
2. Connect the programmer to the ICSP header.
3. Select "Upload Using Programmer" from the "Sketch" menu.

1. Programmer Not Recognized:

   • Ensure the programmer drivers are installed correctly.
   • Verify the correct programmer is selected in the Arduino IDE under "Tools > Programmer".

2. Upload Fails via ICSP:

   • Check the connections between the programmer and the ICSP header.
   • Ensure the board is powered and the programmer is functioning properly.

3. Microcontroller Not Responding:

   • Verify that the microcontroller is not damaged.
   • Re-burn the bootloader using the ICSP header if necessary.

4. LED Not Blinking After Upload:

   • Confirm that the code was uploaded successfully.
   • Check the onboard LED (connected to pin 13) for any physical damage.

Q: Can I use the ICSP header to upload sketches without overwriting the bootloader?
A: No, uploading via ICSP bypasses the bootloader and overwrites it. To retain the bootloader, use the USB connection for uploading sketches.

Q: What happens if I connect the programmer incorrectly?
A: Incorrect connections may damage the programmer or the Arduino board. Always double-check the pin alignment before powering the board.

Q: Can I power the Arduino Uno (Rev3) solely through the ICSP header?
A: No, the ICSP header provides power to the programmer but does not power the entire board. Use USB or an external power source to power the board.

Q: Is the ICSP header compatible with all Arduino boards?
A: The ICSP header is standard on most Arduino boards, but always verify the pinout and compatibility with your specific board.

By following this documentation, users can effectively utilize the ICSP header on the Arduino Uno (Rev3) for advanced programming and development tasks.
