How to Use MAX30102: Examples, Pinouts, and Specs

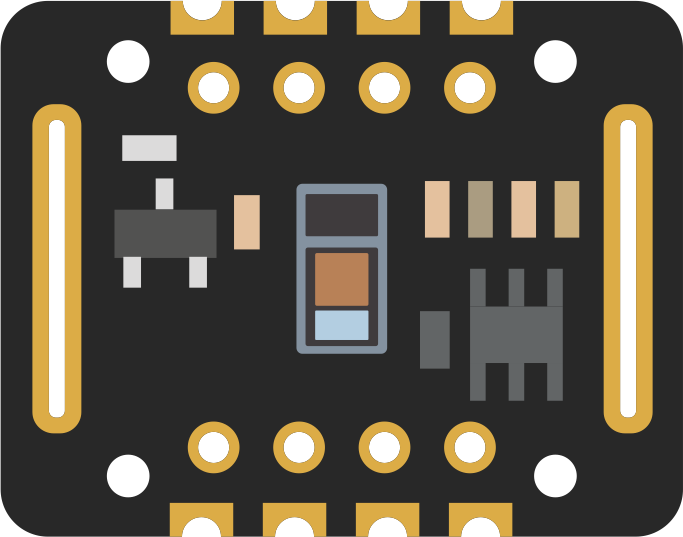

The MAX30102 is a pulse oximeter and heart-rate sensor module designed for non-invasive monitoring of vital signs. It utilizes photoplethysmography (PPG) technology to measure blood oxygen saturation (SpO2) and heart rate. The module integrates red and infrared LEDs, a photodetector, optical elements, and low-noise electronics, making it a compact and efficient solution for wearable and portable health monitoring devices.

• Wearable fitness trackers and smartwatches
• Medical devices for SpO2 and heart rate monitoring
• Health monitoring systems for IoT applications
• Research and development in biomedical engineering
• Sports performance tracking

The MAX30102 is a highly integrated module with the following key specifications:

The MAX30102 module typically has the following pinout:

1. Power Supply: Connect the VIN pin to a 3.3V power source and the GND pin to ground.
2. I2C Communication: Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller (e.g., Arduino UNO).
3. Interrupt Pin: Optionally, connect the INT pin to a GPIO pin on your microcontroller to handle interrupts.
4. Pull-Up Resistors: Use 4.7kΩ pull-up resistors on the SDA and SCL lines if not already present on the module.
5. Initialization: Use the appropriate library or write custom code to initialize the MAX30102 and configure its settings.

• Ensure the sensor is placed in direct contact with the skin for accurate readings.
• Avoid ambient light interference by using the sensor in a controlled environment or with proper shielding.
• Use a low-noise power supply to minimize measurement errors.
• Calibrate the sensor for specific applications if required.

Below is an example of how to interface the MAX30102 with an Arduino UNO using the Adafruit MAX30102 library:

#include <Wire.h>
#include "Adafruit_MAX30102.h"

// Create an instance of the MAX30102 sensor
Adafruit_MAX30102 max30102;

void setup() {
  Serial.begin(9600); // Initialize serial communication
  while (!Serial);    // Wait for the serial monitor to open

  // Initialize the MAX30102 sensor
  if (!max30102.begin()) {
    Serial.println("MAX30102 initialization failed!");
    while (1); // Halt execution if initialization fails
  }
  Serial.println("MAX30102 initialized successfully!");
}

void loop() {
  // Variables to store sensor readings
  int redValue, irValue;

  // Check if new data is available
  if (max30102.check() == true) {
    // Read red and infrared values
    redValue = max30102.getRed();
    irValue = max30102.getIR();

    // Print the readings to the serial monitor
    Serial.print("Red: ");
    Serial.print(redValue);
    Serial.print(" | IR: ");
    Serial.println(irValue);
  } else {
    Serial.println("No new data available.");
  }

  delay(100); // Delay to reduce serial output frequency
}

1. Sensor Not Detected on I2C Bus:

   • Ensure the SDA and SCL connections are correct.
   • Verify that pull-up resistors are present on the I2C lines.
   • Check the I2C address (default is 0x57) and ensure no conflicts with other devices.

2. Inaccurate Readings:

   • Ensure the sensor is in direct contact with the skin.
   • Minimize ambient light interference by shielding the sensor.
   • Verify that the power supply is stable and noise-free.

3. Initialization Fails:

   • Confirm that the module is receiving power (check VIN and GND connections).
   • Ensure the correct library is installed and included in your code.

Q: Can the MAX30102 measure SpO2 and heart rate simultaneously?
A: Yes, the MAX30102 can measure both SpO2 and heart rate simultaneously using its red and infrared LEDs.

Q: What is the maximum sampling rate of the MAX30102?
A: The MAX30102 supports sampling rates up to 3200 samples per second, configurable via software.

Q: Can the MAX30102 be used with a 5V microcontroller?
A: Yes, but a logic level shifter is required to interface the 3.3V I2C lines with the 5V microcontroller.

Q: How do I reduce power consumption?
A: Use the standby mode when the sensor is not actively measuring, and configure the LED current settings to the minimum required for your application.
