How to Use Servo: Examples, Pinouts, and Specs

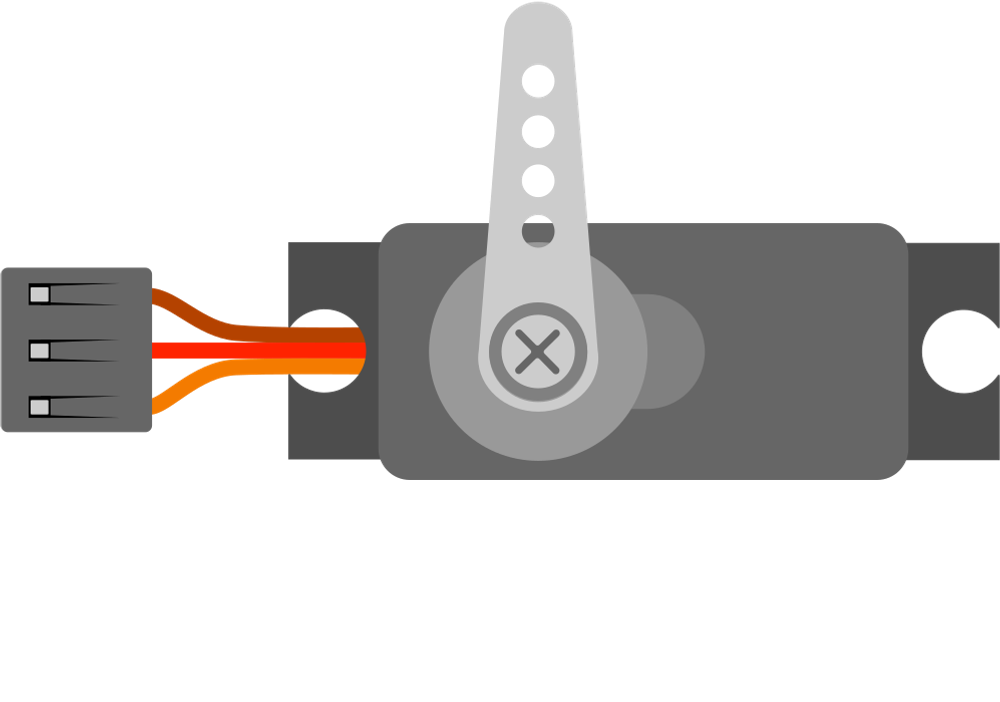

Image of Servo
Cirkit Designer LogoDesign with Servo in Cirkit Designer

Introduction

A servo is a rotary actuator that allows for precise control of angular position, velocity, and acceleration. It consists of a motor coupled to a sensor for position feedback, along with a control circuit. Servos are widely used in robotics, automation, remote-controlled vehicles, and industrial machinery due to their ability to provide accurate and repeatable motion.

Explore Projects Built with Servo

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Mega 2560 Controlled Multi-Servo Random Positioning System
Image of robotic: A project utilizing Servo in a practical application
This circuit consists of an Arduino Mega 2560 microcontroller connected to twelve servo motors, each individually controlled by a distinct PWM pin on the Arduino. The servos are powered by a single Polymer Lithium Ion Battery, with all servos sharing a common power (VCC) and ground (GND) connection. The embedded code on the Arduino is designed to randomly position each servo within a 0 to 180-degree range, with a random delay between movements, demonstrating a multi-servo control system possibly for applications like robotics or animatronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Servo Motor Controller
Image of Test project: A project utilizing Servo in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a servo motor. The Arduino provides power (5V and GND) to the servo and controls its position through a pulse signal on pin D9. The embedded code on the Arduino is programmed to smoothly move the servo between 0 and 180 degrees, creating a sweeping motion.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled Servo Motor
Image of lblblblb: A project utilizing Servo in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a servo motor. The Arduino provides power (5V) and ground connections to the servo, as well as a control signal through one of its digital pins (D6). The embedded code on the Arduino is set up to control the servo's position, sending it to a fixed angle upon each loop iteration.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Multi-Servo System
Image of Mind controlled robotic arm: A project utilizing Servo in a practical application
This circuit consists of an Arduino UNO microcontroller connected to five servo motors. The servos are powered by the Arduino's 5V output and share a common ground. Each servo's PWM control pin is individually connected to a digital pin on the Arduino (D8, D9, D10, D11, D12), allowing for independent control of each servo's position. The Arduino is also connected to a laptop via USB for programming and power.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Servo

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of robotic: A project utilizing Servo in a practical application
Arduino Mega 2560 Controlled Multi-Servo Random Positioning System
This circuit consists of an Arduino Mega 2560 microcontroller connected to twelve servo motors, each individually controlled by a distinct PWM pin on the Arduino. The servos are powered by a single Polymer Lithium Ion Battery, with all servos sharing a common power (VCC) and ground (GND) connection. The embedded code on the Arduino is designed to randomly position each servo within a 0 to 180-degree range, with a random delay between movements, demonstrating a multi-servo control system possibly for applications like robotics or animatronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Test project: A project utilizing Servo in a practical application
Arduino UNO Servo Motor Controller
This circuit consists of an Arduino UNO microcontroller connected to a servo motor. The Arduino provides power (5V and GND) to the servo and controls its position through a pulse signal on pin D9. The embedded code on the Arduino is programmed to smoothly move the servo between 0 and 180 degrees, creating a sweeping motion.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lblblblb: A project utilizing Servo in a practical application
Arduino UNO Controlled Servo Motor
This circuit consists of an Arduino UNO microcontroller connected to a servo motor. The Arduino provides power (5V) and ground connections to the servo, as well as a control signal through one of its digital pins (D6). The embedded code on the Arduino is set up to control the servo's position, sending it to a fixed angle upon each loop iteration.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mind controlled robotic arm: A project utilizing Servo in a practical application
Arduino-Controlled Multi-Servo System
This circuit consists of an Arduino UNO microcontroller connected to five servo motors. The servos are powered by the Arduino's 5V output and share a common ground. Each servo's PWM control pin is individually connected to a digital pin on the Arduino (D8, D9, D10, D11, D12), allowing for independent control of each servo's position. The Arduino is also connected to a laptop via USB for programming and power.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Robotics: For controlling robotic arms, grippers, and joints.
  • Remote-controlled vehicles: Steering mechanisms and throttle control.
  • Automation: Conveyor systems and precise positioning tasks.
  • Hobby projects: Model airplanes, boats, and cars.
  • Camera gimbals: Stabilization and precise movement.

Technical Specifications

Below are the general technical specifications for a standard hobby servo. Note that specifications may vary depending on the specific model and manufacturer.

Key Technical Details

  • Operating Voltage: 4.8V to 6V (typical for standard servos)
  • Operating Current: 100mA to 1A (depending on load)
  • Torque: 1.5 kg-cm to 20 kg-cm (varies by model)
  • Speed: 0.1s to 0.2s per 60° (at no load)
  • Control Signal: Pulse Width Modulation (PWM)
  • Angle Range: 0° to 180° (standard), 360° for continuous rotation servos
  • Connector Type: 3-pin (Signal, VCC, GND)

Pin Configuration

The servo typically has a 3-pin connector with the following configuration:

Pin Number Name Description
1 Signal Receives PWM signal for position control
2 VCC Power supply (4.8V to 6V)
3 GND Ground connection

Usage Instructions

How to Use a Servo in a Circuit

  1. Power the Servo: Connect the VCC pin to a 5V or 6V power source and the GND pin to the ground of your circuit.
  2. Control Signal: Connect the Signal pin to a microcontroller or PWM signal generator.
  3. PWM Signal: Use a PWM signal with a frequency of 50Hz (20ms period). The pulse width determines the servo's position:
    • 1ms pulse: 0° position
    • 1.5ms pulse: 90° position (center)
    • 2ms pulse: 180° position

Important Considerations

  • Power Supply: Ensure the power supply can handle the servo's current requirements, especially under load.
  • Avoid Overloading: Do not exceed the torque rating of the servo to prevent damage.
  • Signal Stability: Use a stable PWM signal to avoid jittery or erratic movements.
  • External Power: For multiple servos, use an external power source to avoid overloading the microcontroller.

Example: Connecting a Servo to an Arduino UNO

Below is an example of how to control a servo using an Arduino UNO:

#include <Servo.h> // Include the Servo library

Servo myServo; // Create a Servo object to control the servo

void setup() {
  myServo.attach(9); // Attach the servo to pin 9 on the Arduino
}

void loop() {
  myServo.write(0); // Move the servo to 0 degrees
  delay(1000);      // Wait for 1 second

  myServo.write(90); // Move the servo to 90 degrees
  delay(1000);       // Wait for 1 second

  myServo.write(180); // Move the servo to 180 degrees
  delay(1000);        // Wait for 1 second
}

Notes:

  • The Servo.h library simplifies servo control by handling PWM signal generation.
  • Ensure the servo is connected to a pin capable of PWM output (e.g., pin 9 on the Arduino UNO).

Troubleshooting and FAQs

Common Issues and Solutions

  1. Servo Not Moving

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check the connections and ensure the power supply meets the servo's requirements.
  2. Jittery or Erratic Movement

    • Cause: Unstable PWM signal or electrical noise.
    • Solution: Use a decoupling capacitor near the servo's power pins and ensure a stable PWM signal.
  3. Overheating

    • Cause: Overloading the servo or continuous operation under high torque.
    • Solution: Reduce the load or allow the servo to cool down periodically.
  4. Limited Range of Motion

    • Cause: Servo is mechanically restricted or receiving incorrect PWM signals.
    • Solution: Check for physical obstructions and verify the PWM signal's pulse width.

FAQs

Q: Can I power the servo directly from the Arduino?
A: While possible for small servos, it is not recommended for larger or multiple servos due to current limitations. Use an external power source.

Q: How do I control multiple servos with an Arduino?
A: Use the Servo.h library to create multiple Servo objects, each controlling a different servo. Ensure the power supply can handle the total current draw.

Q: What is the difference between a standard servo and a continuous rotation servo?
A: A standard servo moves to a specific angle based on the PWM signal, while a continuous rotation servo rotates continuously in either direction, with the PWM signal controlling speed and direction.

Q: Can I use a servo without a microcontroller?
A: Yes, you can use a standalone PWM signal generator to control the servo.
