How to Use VFD Yuanshin: Examples, Pinouts, and Specs

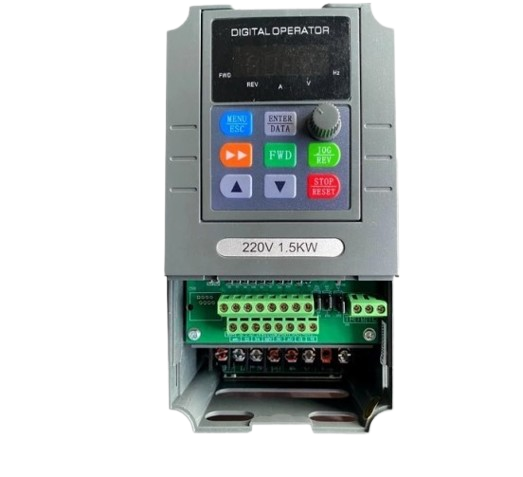

The VFD Yuanshin YX3000, manufactured by Cino, is a Variable Frequency Drive designed to control the speed and torque of electric motors. By varying the frequency and voltage of the power supplied to the motor, the YX3000 enables precise motor control, energy savings, and improved system efficiency. This VFD is suitable for a wide range of industrial and commercial applications, including HVAC systems, conveyor belts, pumps, and fans.

• Industrial motor speed control
• HVAC systems for energy-efficient air handling
• Conveyor systems in manufacturing plants
• Water pumps and fans in commercial buildings
• Automation systems requiring precise motor control

The VFD Yuanshin YX3000 features a terminal block for input/output connections. Below is the pin configuration:

1. Wiring the VFD:

   • Connect the AC input power to terminals L1, L2, and L3 (or L1 and L2 for single-phase input).
   • Connect the motor leads to terminals U, V, and W.
   • Ensure proper grounding of the VFD to avoid electrical noise and ensure safety.

2. Control Signal Configuration:

   • Use the control terminals to configure the desired input signals (e.g., FWD for forward run, REV for reverse run).
   • For analog control, connect a potentiometer or PLC to AI1 or AI2 to vary the motor speed.

3. Programming the VFD:

   • Use the built-in keypad or an external programming tool to set parameters such as motor type, frequency range, and acceleration/deceleration times.
   • Refer to the user manual for detailed parameter settings.

4. Testing and Operation:

   • After wiring and programming, test the VFD with the motor at low speeds to ensure proper operation.
   • Gradually increase the speed and monitor the motor's performance.

• Always verify the input voltage and motor specifications before connecting the VFD.
• Use proper cable shielding to minimize electromagnetic interference (EMI).
• Avoid operating the VFD in environments with excessive dust, moisture, or vibration.
• Regularly inspect and clean the VFD to ensure optimal performance.
• Use an appropriate circuit breaker or fuse for overcurrent protection.

The VFD Yuanshin YX3000 can be controlled via RS485 communication using an Arduino UNO. Below is an example code snippet to send a start command to the VFD:

#include <ModbusMaster.h>

// Create an instance of the ModbusMaster library
ModbusMaster node;

void setup() {
  Serial.begin(9600); // Initialize serial communication
  node.begin(1, Serial); // Set Modbus slave ID to 1
}

void loop() {
  // Send a forward run command to the VFD
  uint8_t result = node.writeSingleRegister(0x2000, 0x0001);
  // 0x2000 is the address for the run command register
  // 0x0001 starts the motor in forward direction

  if (result == node.ku8MBSuccess) {
    Serial.println("Command sent successfully!");
  } else {
    Serial.println("Failed to send command.");
  }

  delay(1000); // Wait for 1 second before sending the next command
}

Note: Ensure that an RS485 module is connected between the Arduino and the VFD. Refer to the VFD's communication manual for the correct register addresses and settings.

1. Issue: The motor does not start.

   • Solution: Check the wiring connections and ensure the FWD or REV command is active. Verify that the input voltage matches the VFD's specifications.

2. Issue: The VFD trips frequently.

   • Solution: Check for overload conditions or incorrect parameter settings. Ensure the motor is not drawing more current than the VFD's rated capacity.

3. Issue: Communication with the Arduino fails.

   • Solution: Verify the RS485 wiring and ensure the correct Modbus slave ID and baud rate are configured in the Arduino code.

4. Issue: Excessive noise or vibration in the motor.

   • Solution: Check the motor's alignment and ensure proper grounding of the VFD. Adjust the carrier frequency parameter if necessary.

• Q: Can the VFD Yuanshin YX3000 be used with single-phase motors?

  • A: Yes, the VFD supports single-phase input for certain models. However, ensure the motor is compatible with VFD operation.

• Q: What is the maximum cable length between the VFD and the motor?

  • A: The maximum cable length depends on the motor's power rating and the cable type. Refer to the user manual for detailed guidelines.

• Q: Does the VFD support braking resistors?

  • A: Yes, the VFD Yuanshin YX3000 supports external braking resistors for applications requiring rapid deceleration.

• Q: Can I control the VFD remotely?

  • A: Yes, the VFD supports RS485 communication with Modbus RTU protocol for remote control and monitoring.

This concludes the documentation for the VFD Yuanshin YX3000. For further details, refer to the official user manual provided by Cino.
