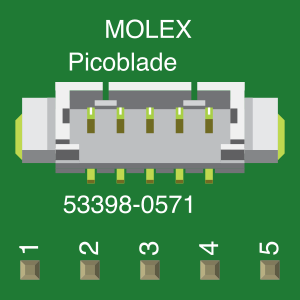

Image of Molex Picoblade Series Header
Cirkit Designer LogoDesign with Molex Picoblade Series Header in Cirkit Designer

Introduction

The Molex Picoblade Series Header (Part ID: 0533980571) is a compact, low-profile connector designed for high-density applications. It features a reliable locking mechanism, ensuring secure wire-to-board connections. This connector is widely used in applications where space is limited, such as consumer electronics, medical devices, and industrial equipment. Its robust design and versatility make it a popular choice for engineers and designers.

Explore Projects Built with Molex Picoblade Series Header

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Peltier-Controlled Thermal Management System with SPST Switch
Image of Mini car refrigerator circuit: A project utilizing Molex Picoblade Series Header in a practical application
This circuit consists of multiple Peltier modules and fans connected in parallel to a digital power supply, with a rocker switch (SPST) controlling the power flow to one of the Peltier modules and multiple fans. The 2.1mm Barrel Jack with Terminal Block serves as the power input connector, and the rocker switch allows for selective enabling or disabling of the connected devices. The circuit is designed to provide cooling or heating through the Peltier modules while the fans assist in heat dissipation or air circulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Smart Lighting System with Adafruit DotStar and MCP23017 I2C GPIO Expander
Image of Christmas-vending-machine-box: A project utilizing Molex Picoblade Series Header in a practical application
This circuit integrates multiple Adafruit DotStar LED strips powered by 12V power supplies, with ground connections managed through WAGO splicing connectors. The setup is designed to provide a stable power and ground distribution for the LED strips, ensuring synchronized and reliable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Molex Picoblade Series Header in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
5-Pin Connector Synchronization Circuit
Image of UMB_Cable: A project utilizing Molex Picoblade Series Header in a practical application
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Molex Picoblade Series Header

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini car refrigerator circuit: A project utilizing Molex Picoblade Series Header in a practical application
Peltier-Controlled Thermal Management System with SPST Switch
This circuit consists of multiple Peltier modules and fans connected in parallel to a digital power supply, with a rocker switch (SPST) controlling the power flow to one of the Peltier modules and multiple fans. The 2.1mm Barrel Jack with Terminal Block serves as the power input connector, and the rocker switch allows for selective enabling or disabling of the connected devices. The circuit is designed to provide cooling or heating through the Peltier modules while the fans assist in heat dissipation or air circulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Christmas-vending-machine-box: A project utilizing Molex Picoblade Series Header in a practical application
Smart Lighting System with Adafruit DotStar and MCP23017 I2C GPIO Expander
This circuit integrates multiple Adafruit DotStar LED strips powered by 12V power supplies, with ground connections managed through WAGO splicing connectors. The setup is designed to provide a stable power and ground distribution for the LED strips, ensuring synchronized and reliable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing Molex Picoblade Series Header in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of UMB_Cable: A project utilizing Molex Picoblade Series Header in a practical application
5-Pin Connector Synchronization Circuit
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Consumer electronics (e.g., cameras, wearables)
  • Medical devices
  • Industrial control systems
  • Automotive electronics
  • Robotics and IoT devices

Technical Specifications

Key Technical Details:

Parameter Value
Manufacturer Molex
Series Picoblade
Part Number 0533980571
Connector Type Wire-to-Board
Number of Positions 5
Pitch 1.25 mm
Mounting Type Surface Mount (SMT)
Current Rating 1 A per contact
Voltage Rating 125 V AC/DC
Operating Temperature -25°C to +85°C
Locking Mechanism Positive Lock
Contact Material Phosphor Bronze
Contact Plating Tin
Housing Material Nylon (UL 94V-0 rated)

Pin Configuration and Descriptions:

Pin Number Description Notes
1 Signal/Power Line Connect to the desired signal
2 Signal/Power Line Connect to the desired signal
3 Signal/Power Line Connect to the desired signal
4 Signal/Power Line Connect to the desired signal
5 Ground Connect to circuit ground

Usage Instructions

How to Use the Molex Picoblade Series Header:

  1. PCB Design:

    • Ensure the PCB layout matches the 1.25 mm pitch of the header.
    • Use the recommended footprint provided in the Molex datasheet for proper alignment.
    • Verify that the header is mounted securely using surface-mount soldering techniques.
  2. Wire Preparation:

    • Use compatible Molex Picoblade crimp terminals and housings for wire connections.
    • Strip the wire insulation to the appropriate length (as specified in the datasheet).
    • Crimp the terminals onto the wires using a Molex-approved crimping tool.
  3. Assembly:

    • Insert the crimped terminals into the Picoblade housing until they click into place.
    • Align the housing with the header on the PCB and press gently to connect.
  4. Testing:

    • Verify the connection by checking continuity with a multimeter.
    • Ensure the locking mechanism is engaged to prevent accidental disconnection.

Important Considerations:

  • Avoid exceeding the rated current (1 A per contact) and voltage (125 V AC/DC).
  • Ensure proper alignment during assembly to prevent damage to the connector.
  • Use only Molex-approved tools and accessories for crimping and assembly.
  • Operate within the specified temperature range (-25°C to +85°C) to maintain reliability.

Example: Connecting to an Arduino UNO

The Molex Picoblade Series Header can be used to connect sensors or other peripherals to an Arduino UNO. Below is an example of connecting a sensor using the Picoblade connector:

Circuit Diagram:

  • Pin 1: Sensor Signal → Arduino Analog Pin A0
  • Pin 2: VCC → Arduino 5V
  • Pin 3: GND → Arduino GND

Arduino Code Example:

// Example code for reading a sensor connected via Molex Picoblade Header
const int sensorPin = A0; // Sensor signal connected to Analog Pin A0

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(sensorPin, INPUT); // Set the sensor pin as input
}

void loop() {
  int sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to the Serial Monitor
  delay(500); // Wait for 500 milliseconds before the next reading
}

Troubleshooting and FAQs

Common Issues:

  1. Loose Connections:

    • Cause: Improper crimping or incomplete insertion of terminals into the housing.
    • Solution: Re-crimp the terminals using a Molex-approved tool and ensure they click into place.
  2. Intermittent Signal:

    • Cause: Poor soldering or misalignment of the header on the PCB.
    • Solution: Inspect the solder joints and reflow if necessary. Verify alignment during assembly.
  3. Overheating:

    • Cause: Exceeding the current or voltage rating.
    • Solution: Ensure the load does not exceed 1 A per contact or 125 V AC/DC.
  4. Connector Damage:

    • Cause: Excessive force during assembly or disassembly.
    • Solution: Handle the connector gently and use the locking mechanism properly.

FAQs:

Q1: Can I use the Picoblade connector for high-power applications?
A1: No, the Picoblade connector is designed for low-power applications with a maximum current rating of 1 A per contact.

Q2: What tools are recommended for crimping?
A2: Molex recommends using their official crimping tools for optimal performance and reliability.

Q3: Is the Picoblade connector compatible with other Molex series?
A3: No, the Picoblade series has a unique 1.25 mm pitch and is not directly compatible with other Molex series.

Q4: Can I use this connector in outdoor environments?
A4: The Picoblade connector is not specifically designed for outdoor use. Consider additional protection, such as enclosures, for outdoor applications.

By following this documentation, users can effectively integrate the Molex Picoblade Series Header into their designs, ensuring reliable and efficient connections.
