How to Use ESP32 Dev: Examples, Pinouts, and Specs

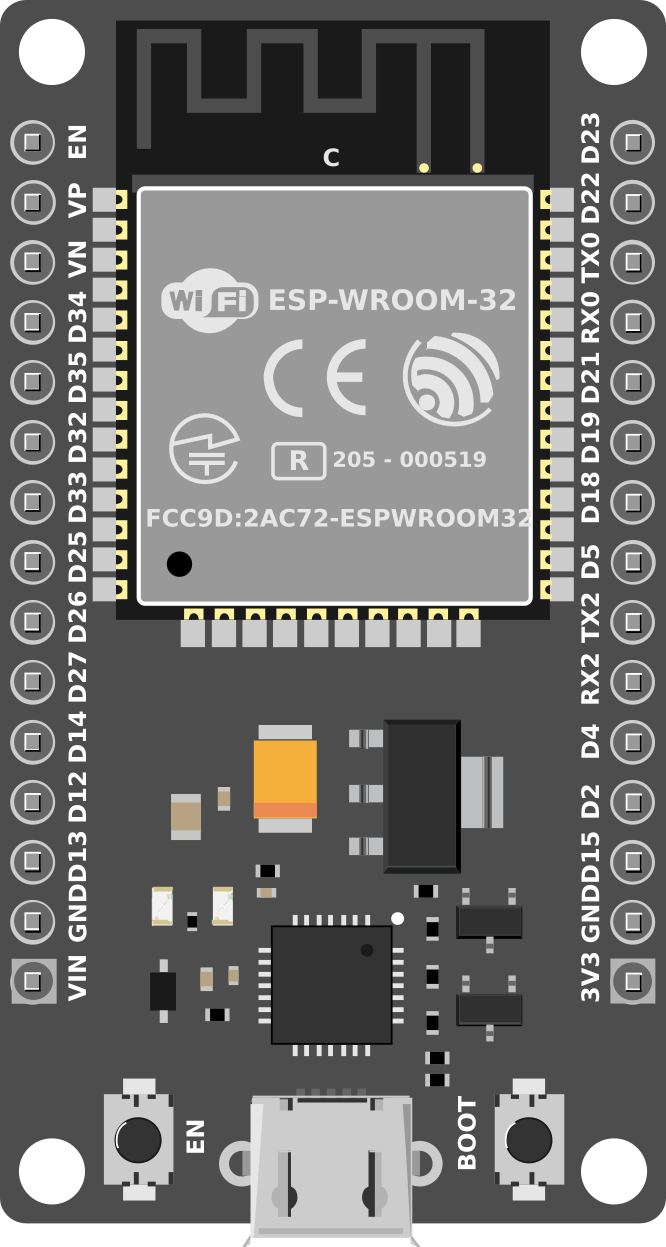

Image of ESP32 Dev
Cirkit Designer LogoDesign with ESP32 Dev in Cirkit Designer

Introduction

The ESP32 Dev is a versatile microcontroller development board equipped with built-in Wi-Fi and Bluetooth capabilities. It is based on the ESP32 chip, which features a dual-core processor, making it ideal for Internet of Things (IoT) applications, smart devices, and rapid prototyping. Its compact design and robust features make it a popular choice among hobbyists and professionals alike.

Explore Projects Built with ESP32 Dev

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing ESP32 Dev in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Water Flow Sensing
Image of Water: A project utilizing ESP32 Dev in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
Image of Health Monitoring System: A project utilizing ESP32 Dev in a practical application
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of mark: A project utilizing ESP32 Dev in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 Dev

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of gps projekt circuit: A project utilizing ESP32 Dev in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Water: A project utilizing ESP32 Dev in a practical application
ESP32-Based Environmental Monitoring System with Water Flow Sensing
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Health Monitoring System: A project utilizing ESP32 Dev in a practical application
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mark: A project utilizing ESP32 Dev in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Robotics and drones
  • Data logging and remote monitoring
  • Prototyping for connected devices

Technical Specifications

The ESP32 Dev board is packed with powerful features and specifications that make it suitable for a wide range of applications.

Key Technical Details

Specification Value
Microcontroller ESP32 Dual-Core Xtensa LX6
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 (BLE)
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB)
GPIO Pins 34 (multipurpose, including ADC, DAC, PWM)
ADC Channels 18 (12-bit resolution)
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power modes available
Dimensions ~25.5mm x 51mm

Pin Configuration and Descriptions

The ESP32 Dev board has a variety of pins for different functionalities. Below is a summary of the pin configuration:

Pin Name Functionality Description
VIN Power Input Accepts 5V input from USB or external source.
3V3 Power Output Provides 3.3V output for external components.
GND Ground Common ground for the circuit.
GPIO0 General Purpose I/O, Boot Mode Select Used for programming and boot mode selection.
GPIO2 General Purpose I/O, ADC, PWM Multipurpose pin for analog/digital signals.
GPIO12 General Purpose I/O, ADC, PWM Multipurpose pin for analog/digital signals.
GPIO13 General Purpose I/O, ADC, PWM Multipurpose pin for analog/digital signals.
GPIO21 General Purpose I/O, I2C SDA Default I2C data line.
GPIO22 General Purpose I/O, I2C SCL Default I2C clock line.
EN Enable Resets the chip when pulled low.

Note: The ESP32 Dev board has multiple GPIO pins that can be configured for various functions such as ADC, DAC, PWM, and communication protocols. Refer to the ESP32 datasheet for a complete pinout.

Usage Instructions

How to Use the ESP32 Dev in a Circuit

  1. Powering the Board:

    • Connect the ESP32 Dev board to your computer via a micro-USB cable. This provides both power and a communication interface for programming.
    • Alternatively, supply 5V to the VIN pin or 3.3V to the 3V3 pin for external power.
  2. Programming the Board:

    • Install the Arduino IDE and add the ESP32 board support package.
    • Select the correct board (ESP32 Dev Module) and port in the Arduino IDE.
    • Write your code and upload it to the board.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure that the voltage levels of connected devices are compatible with the ESP32 (3.3V logic).

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to GPIO2.

// Define the GPIO pin where the LED is connected
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3V logic. Avoid connecting 5V signals directly to its GPIO pins.
  • Boot Mode: Ensure GPIO0 is pulled low during programming to enter boot mode.
  • Power Supply: Use a stable power source to avoid unexpected resets or malfunctions.
  • Wi-Fi Interference: Place the ESP32 away from metal objects or other sources of interference for optimal Wi-Fi performance.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The ESP32 is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver for your operating system.
  2. Upload fails with a timeout error:

    • Check that the correct board and port are selected in the Arduino IDE.
    • Hold the BOOT button on the ESP32 while uploading the code.
  3. Wi-Fi connection issues:

    • Verify the SSID and password in your code.
    • Ensure the router is within range and supports 2.4 GHz Wi-Fi.
  4. Random resets or instability:

    • Use a stable power supply with sufficient current (at least 500mA).
    • Avoid using GPIO pins that are reserved for internal functions during boot.

FAQs

Q: Can the ESP32 Dev board run on battery power?
A: Yes, the ESP32 can be powered by a LiPo battery connected to the VIN pin. Ensure the battery voltage is within the acceptable range (5V for VIN).

Q: How do I use Bluetooth on the ESP32?
A: The ESP32 supports both Bluetooth Classic and BLE. Use the BluetoothSerial or BLE libraries in the Arduino IDE to implement Bluetooth functionality.

Q: Can I use the ESP32 with MicroPython?
A: Yes, the ESP32 is compatible with MicroPython. Flash the MicroPython firmware to the board and use a Python IDE like Thonny to program it.

Q: What is the maximum Wi-Fi range of the ESP32?
A: The Wi-Fi range depends on environmental factors but typically extends up to 50 meters indoors and 200 meters outdoors in open spaces.

By following this documentation, you can effectively utilize the ESP32 Dev board for your projects and troubleshoot common issues with ease.
